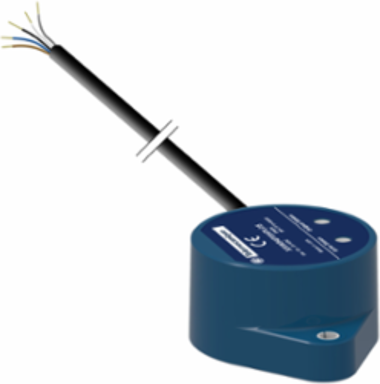

Telemecanique Sensors XXW54P3HPL05 Ultrasonic sensor, plastic, wide beam D54, sensing range 3 m, output 0.5-4.5 V, cable 0.5 m, software programmable

MPN: XXW54P3HPL05
PPN: TES-XXW54P3HPL05

$891.58

Available to Order from Manufacturer

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Ultrasonic sensor, plastic, wide beam D54, sensing range 3 m, output 0.5-4.5 V, cable 0.5 m, software programmable

Documentation & Downloads

Specifications

Key Specifications

Indivisible sale quantity	1

Commercial status	Commercialised

Complementary

Function available	Software configurable
Minimum size of detected object	Cylinder diameter 12 mm at 3 m
Current consumption	30 mA
Maximum switching capacity	>= 2 kOhm overload and short-circuit protection
Switching frequency	<= 1.6 Hz
Delay recovery	300 ms

Voltage drop	2 V
Delay first up	400 ms
Status LED	Output state: 1 LED (yellow), echo state and power ON: 1 LED (green/white)
Setting-up	Configurator software
Delay response	300 ms

Main

Range of product	Telemecanique Ultrasonic sensors XX
Series name	Application
Sensor design	Ø 54 mm
Material	Plastic
Discrete output function	1 NO or 1 NC programmable
Analogue output function	0.5...4.5 V
Discrete output type	PNP
Enclosure material	Valox

Sensor type	Ultrasonic sensor
Sensor name	XXS
Detection system	Diffuse
Type of output signal	Analogue + discrete
Wiring technique	5-wire
Rated supply voltage (Us)	12...24 V DC with reverse polarity protection
Electrical connection	Cable 5 pins, 0.5 m cable length
Front material	Ultem

Environment

IP degree of protection	IP65 conforming to IEC 60529, IP67, IP69K
Standards	CSA C22.2 No 14 IEC 60947-5-2 UL 508
Vibration resistance	+/-1 mm conforming to IEC 60068-2-6 (f = 10-55 Hz)
