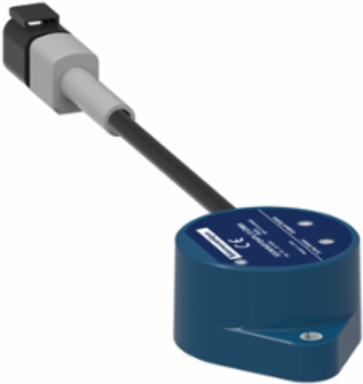

Telemecanique Sensors XXW54P3JL01DM6 Ultrasonic sensor, plastic, Wide Beam Φ54, 3m, CAN SAE J1939, 0.15m cable+ 6pin Deutsch male connector
- MPN: XXW54P3JL01DM6
- PPN: TES-XXW54P3JL01DM6
CAD
$917.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Ultrasonic sensor, plastic, Wide Beam Φ54, 3m, CAN SAE J1939, 0.15m cable+ 6pin Deutsch male connector
Documentation & Downloads
Specifications
Key Specifications
- [Us] Rated Supply Voltage
- 12...24 V DC reverse polarity protection
- Discrete Output Function
- 1 NO or 1 NC programmable
- Range Of Product
- Telemecanique Ultrasonic sensors XX
- [Sd] Sensing Range
- 0.425-3 m
- Wiring Technique
- 6-wire
- Series Name
- Application
- Detection System
- diffuse
- Electrical Connection
- remote male connector DTM04-6P 6 pins, 0.15 m
- [Sn] Nominal Sensing Distance
- 3-3 m software with kit
Discrete Output TypePNP
Type Of Output SignalCANJ SAE 1939
Sensor NameXXS
Materialplastic
Ip Degree Of ProtectionIP65 conforming to IEC 60529 || IP67 conforming to IEC 60529 || IP69K conforming to DIN 40050
Beam Angle50 °
Sensor Typeultrasonic sensor
Sensor DesignØ 54 mm
Analogue Output Function0.5...4.5 V
Complementary
- Maximum Switching Capacity
- >= 2 kOhm overload and short-circuit protection
- Height
- 54 mm
- Minimum Size Of Detected Object
- cylinder diameter 12 mm 3 m
- Maximum Delay Response
- 300 ms
- Status Led
- output state 1 LED yellow) || echo state and power ON 1 LED green/white)
- Transmission Frequency
- 48 kHz
- Marking
- CE
- Net Weight
- 0.115 kg
- Maximum Differential Travel
- 20 mm
- Maximum Delay Recovery
- 300 ms
- Supply Voltage Limits
- 9-32 V DC
- Width
- 79 mm
- Depth
- 32.5 mm
Repeat Accuracy0.1 %
Maximum Switching Current100 mA overload and short-circuit protection
Switching Frequency<= 1.6 Hz
Maximum Voltage Drop2 V
Setting-Upconfigurator software
[Sa] Assured Operating Distance0.425-3 m configurator software)
Blind Zone425-425 mm
Current Consumption30 mA
Function Availablewith synchronisation mode || software configurable
Maximum Delay First Up400 ms
Enclosure Materialvalox
Front Materialultem
Environment
- Product Certifications
- cULus || E2
- Resistance To Electromagnetic Fields
- 10 V/m level 3 IEC 61000-4-3
- Vibration Resistance
- +/-1 mm 10-55 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-85 °C
- Resistance To Fast Transients
- 2 kV IEC 61000-4-4
Ambient Air Temperature For Operation-40-70 °C
StandardsEN/IEC 60947-5-2 || CSA C22.2 No 14 || UL 508
Shock Resistance30 gn in all 3 axes 11 ms IEC 60068-2-27
Resistance To Electrostatic Discharge8 kV 8 kV air, 4 kV contact IEC 61000-4-2
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Mercury FreeYes
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
