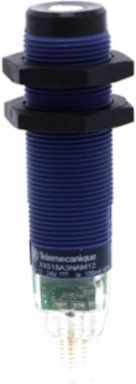

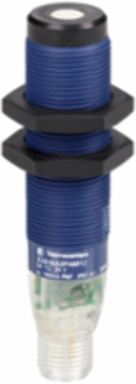

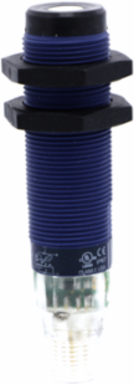

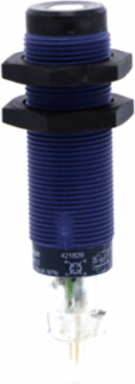

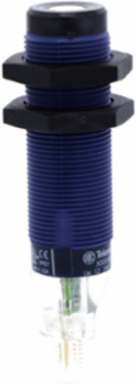

Telemecanique Sensors XX918A3C2M12 Ultrasonic sensor XX, cylindrical M18, sensing range 0.5 m, output 4-20 mA, M12 connector, adjustable sensing range

MPN: XX918A3C2M12
PPN: TES-XX918A3C2M12

$306.43

Available to Order from Manufacturer

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Ultrasonic sensor XX, cylindrical M18, sensing range 0.5 m, output 4-20 mA, M12 connector, adjustable sensing range

Documentation & Downloads

Specifications

Key Specifications

Indivisible sale quantity	1

Commercial status	Commercialised

Complementary

Thread type	M18 x 1
Minimum size of detected object	Cylinder diameter 1.6 mm
Current consumption	40 mA
Maximum switching capacity	10...500 Ohm overload and short-circuit protection
Delay response	25 ms

Voltage drop	1 V
Delay first up	100 ms
Status LED	Setting-up assistance: 1 LED (dual colour), supply on: 1 LED (green), output state: 1 LED (yellow)
Setting-up	Slope selection using teach button
Delay recovery	25 ms

Main

Range of product	Telemecanique Ultrasonic sensors XX
Series name	General purpose
Sensor design	Cylindrical M18
Material	Plastic
Wiring technique	4-wire
Rated supply voltage (Us)	12...24 V DC with reverse polarity protection
Enclosure material	Valox

Sensor type	Ultrasonic sensor
Sensor name	XX9
Detection system	Diffuse
Type of output signal	Analogue
Analogue output function	4...20 mA
Electrical connection	Male connector M12 4 pins
Front material	Epoxy
