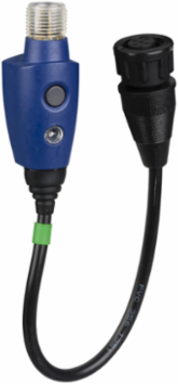

Telemecanique Sensors XXSIDPC03Q Ultrasonic sensors XX, ultrasonic sensor t V dc pnp XXSID
- MPN: XXSIDPC03Q
- PPN: TES-XXSIDPC03Q
- UNSPSC: 39122230
CAD
$294.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Ultrasonic sensors XX, ultrasonic sensor t V dc pnp XXSID
Documentation & Downloads
Specifications
Key Specifications
| [Us] Rated Supply Voltage | 12...24 V DC reverse polarity protection |
|---|---|
| Type Of Output Signal | discrete |
| Detection System | diffuse |
| Sensor Design | cylindrical M12 |
| Material | plastic |
| Series Name | general purpose |
|---|---|
| Range Of Product | Telemecanique Ultrasonic sensors XX |
| Sensor Type | ultrasonic sensor |
| Sensor Name | XXS |
| Ip Degree Of Protection | IP67 conforming to IEC 60529 |
Complementary
| Maximum Switching Current | 100 mA overload and short-circuit protection |
|---|---|
| Maximum Voltage Drop | 1 V |
| Marking | CE |
| Maximum Delay First Up | 20 ms |
|---|---|
| Supply Voltage Limits | 10-28 V DC |
Environment
| Product Certifications | UL |
|---|---|
| Resistance To Electromagnetic Fields | 10 V/m level 3 IEC 61000-4-3 |
| Standards | IEC 60947-5-2 |
| Vibration Resistance | +/-1 mm 10-55 Hz)IEC 60068-2-6 |
| Ambient Air Temperature For Operation | -20-65 °C |
|---|---|
| Ambient Air Temperature For Storage | -40-80 °C |
| Resistance To Electrostatic Discharge | 8 kV level 4 IEC 61000-4-2 |
| Shock Resistance | 30 gn in all 3 axes 11 ms IEC 60068-2-27 |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Circularity Profile | ENVEOLI111225EN |
|---|---|
| Mercury Free | Yes |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP111234EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
