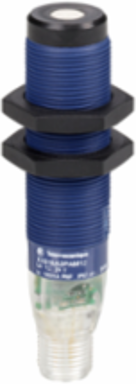

Telemecanique Sensors VM18VA3002Q Hyde Park, Ultrasonic sensor, analog, voltage (V), 18 mm barrel, 15 24 V DC
Telemecanique Sensors VM18VA3002Q Hyde Park, Ultrasonic sensor, analog, voltage (V), 18 mm barrel, 15 24 V DC
- MPN: VM18VA3002Q
- PPN: TES-VM18VA3002Q
- UNSPSC: 39122230
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$296.62/ EA
Description
This VIRTU™ Analog Ultrasonic Proximity Sensor is part of the Hyde Park Ultrasonic Sensors product range. The sensor is resistant to dust, 100% humidity, most acids and bases, and high pressure wash-downs. It is virtually impervious to the effects of splashing food, caustic cleaning solutions, and changing light conditions or colors, making it ideal for many OEM applications and an array of packaging applications, including food and beverage. This ultrasonic sensor is a self contained, pulse-echo, analog sensing device that both transmits and receives sonic energy within an operating range of 2in (50.8mm) to 20in (508mm) with a configurable sensing window. The response time is 50ms. The sensor accepts 15VDC to 24VDC power and has an auto slope analog voltage output from 0VDC to 10VDC along with LEDs to show analog output magnitude and object positioning. The sensor is an M18 thread barrel sensor of PBT plastic with an M12 4-pin male quick disconnect. The sensor is compliant with CE and UL standards and NEMA 4X (indoor use only) and IP67 rated. This product is certified by CE and UL. The Hyde Park ultrasonic sensors operate in diffuse, reflex and thru beam modes. This range of sensors even includes long distance detection models. Hyde Park ultrasonic sensors perform contactless, reliable, and high performance detection regardless of the target's shape, texture, color, or transparency.
Specifications
Environment
- Product Certifications
- UL
- Resistance To Electromagnetic Fields
- 10 V/m level 3 IEC 61000-4-3
- Shock Resistance
- 30 gn in all 3 axes 11 ms IEC 60068-2-27
- Ip Degree Of Protection
- IP67
- Relative Humidity
- 100-100 % without condensation
- Resistance To Fast Transients
- 1 kV level 3 IEC 61000-4-4
Ambient Air Temperature For Operation-30-70 °C
Vibration Resistance+/-1 mm 10-55 Hz)IEC 60068-2-6
MarkingCE
Ambient Air Temperature For Storage-40-85 °C
Nema Degree Of ProtectionNEMA 4X indoor use only)
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Not applicable, out of EU RoHS legal scope
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Complementary
- Repeat Accuracy
- 1.27 %
- Minimum Size Of Detected Object
- cylinder diameter 2.5 mm - up to 200 mm sensing distance
- Transmission Frequency
- 300 kHz
- [Sd] Sensing Range
- 50.8-508 mm
- Net Weight
- 0.033 kg
- Beam Angle
- 5 °
- Depth
- 18 mm
Height18 mm
Maximum Switching Current40 mA reverse polarity protection
Blind Zone51-51 mm
Length77.62 mm
Current Consumption40 mA
Width18 mm
[Sn] Nominal Sensing Distance508-508 mm
Specifications
- Iso Thread
- M18 x 1
- Type Of Output Signal
- analog
- Material
- plastic
- Wiring Technique
- 4-wire
- Supply Voltage Limits
- 13-28 V DC
- Electrical Connection
- male connector M12 4 pins
- Enclosure Material
- PBT
- Device Short Name
- VM18
Type Of Sensing Windowadjustable
Range Of ProductHyde Park
Analogue Output Range0...10 V autoslope
Series NameVirtu VM18
Sensor Typeultrasonic sensor
Sensor Designcylindrical M18
Front Materialglass epoxy
[Us] Rated Supply Voltage15...24 V DC overload and short-circuit protection
