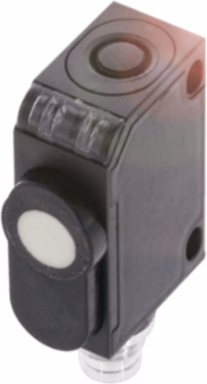

Balluff BUS R06K1-NPX-05/024-S75G Ultrasonic sensors with a digital output BUS R06K1-NPX-05/024-S75G
- MPN: BUS R06K1-NPX-05/024-S75G
- PPN: BAL-BUS0048
CAD
$568.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
They measure fill levels, heights and sag without making contact. Because they are universally applicable, they work independently of color and surface texture. High resolution, high ranges and small blind spots guarantee the utmost precision. The ultrasonic sensors are distinguished by their voltage or power output and variants with an additional switching output.
Documentation & Downloads
Specifications
Key Specifications
- Switching output
- NPN NO/NC
- Housing material
- ABS
- Range
- 50-350 mm
- Approval/Conformity
- CE, EAC, WEEE
- IP rating
- IP67
- Operating voltage Ub
- 20-30 VDC
ConnectionConnector, M8x1-Male, 4-pin
Material sensing surfacePU foam/Epoxy resin/Glass
Switching frequency25 Hz
Ambient temperature-25-70 °C
Repeat accuracy± 0.15 % FS
