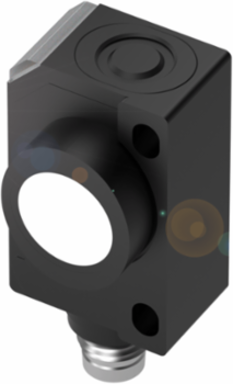

Balluff BUS R06K1-XA-12/070-S75G Ultrasonic sensors with analog output BUS R06K1-XA-12/070-S75G
- MPN: BUS R06K1-XA-12/070-S75G
- PPN: BAL-BUS005E
CAD
$722.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Position detection or object detection in solid, powdery and fluid media – they count and monitor the presence of objects without contact. Universally applicable, they work independently of color and surface texture. Fog, dust and impurities are not a problem for them. Their high resolution and small blind spots guarantee the highest precision. Ultrasonic sensors distinguish themselves by means of their output signal.
Documentation & Downloads
Specifications
Key Specifications
- Style
- block style
- Connection
- Connector, M8x1-Male, 4-pin
- Material sensing surface
- PU foam/Epoxy resin/Glass
- Approval/Conformity
- CE, EAC, WEEE
- IP rating
- IP67
- Operating voltage Ub
- 20-30 VDC
Analog outputAnalog, voltage 0…10 V
Housing materialABS
Range120-1000 mm
Ambient temperature-25-70 °C
Repeat accuracy± 0.15 % FS
