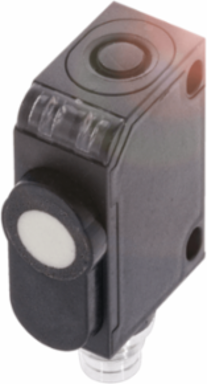

Balluff BUS R06K1-PPX-05/024-S75G Ultrasonic sensors with a digital output BUS R06K1-PPX-05/024-S75G
Balluff BUS R06K1-PPX-05/024-S75G Ultrasonic sensors with a digital output BUS R06K1-PPX-05/024-S75G
- MPN: BUS R06K1-PPX-05/024-S75G
- PPN: BAL-BUS004L
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$551.62/ EA
Description
They measure fill levels, heights and sag without making contact. Because they are universally applicable, they work independently of color and surface texture. High resolution, high ranges and small blind spots guarantee the utmost precision. The ultrasonic sensors are distinguished by their voltage or power output and variants with an additional switching output.
Specifications
Specifications
- Style
- block style
- Connection
- Connector, M8x1-Male, 4-pin
- Material sensing surface
- PU foam/Epoxy resin/Glass
- Switching frequency
- 25 Hz
- Ambient temperature
- -25-70 °C
- Repeat accuracy
- ± 0.15 % FS
Switching outputPNP NO/NC
Housing materialABS
Range50-350 mm
Approval/ConformityCE, EAC, WEEE
IP ratingIP67
Operating voltage Ub20-30 VDC
