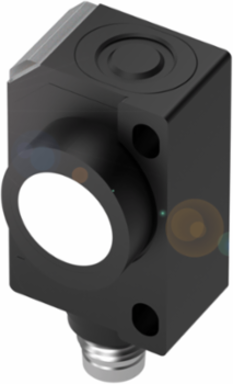

Balluff BUS R06K1-XB-12/070-S75G Ultrasonic sensors with analog output BUS R06K1-XB-12/070-S75G
- MPN: BUS R06K1-XB-12/070-S75G
- PPN: BAL-BUS005C
CAD
$722.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Position detection or object detection in solid, powdery and fluid media – they count and monitor the presence of objects without contact. Universally applicable, they work independently of color and surface texture. Fog, dust and impurities are not a problem for them. Their high resolution and small blind spots guarantee the highest precision. Ultrasonic sensors distinguish themselves by means of their output signal.
Documentation & Downloads
Specifications
Key Specifications
| Style | block style |
|---|---|
| Connection | Connector, M8x1-Male, 4-pin |
| Material sensing surface | PU foam/Epoxy resin/Glass |
| Approval/Conformity | CE, EAC, WEEE |
| IP rating | IP67 |
| Operating voltage Ub | 20-30 VDC |
| Analog output | Analog, current 4…20 mA |
|---|---|
| Housing material | ABS |
| Range | 120-1000 mm |
| Ambient temperature | -25-70 °C |
| Repeat accuracy | ± 0.15 % FS |
