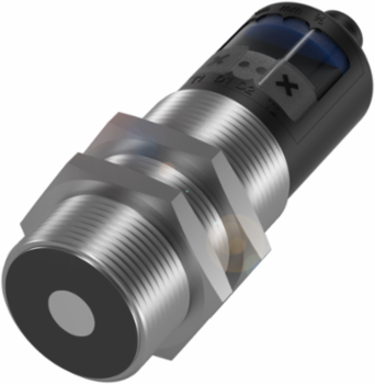

Balluff BUS M30M1-PPX-03/025-S92K Ultrasonic Sensor 30...350 mm Range, PNP NO/NC Output, IP67
- MPN: BUS M30M1-PPX-03/025-S92K
- PPN: BAL-BUS0022
CAD
$483.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Ultrasonic Sensor 30...350 mm Range, PNP NO/NC Output, IP67
Documentation & Downloads
Specifications
Additional
| Range | 30...350 mm |
|---|---|
| Connection | Connector, M12x1-Male, 5-pin |
| Housing material | Brass, nickel-plated; PBT, TPU |
| Approval/Conformity | cULus; CE; WEEE; UKCA |
| Material sensing surface | PU foam/Epoxy resin/Glass |
| Ambient temperature | -25...70 C |
| Operating voltage Ub | 9...30 VDC |
| Switching output | PNP NO/NC |
|---|---|
| Style | 30 mm |
| Switching frequency | 25 Hz |
| Repeat accuracy | 0.15 % FS |
| Country of Origin | Germany |
| IP rating per IEC 60529 | IP67 |
