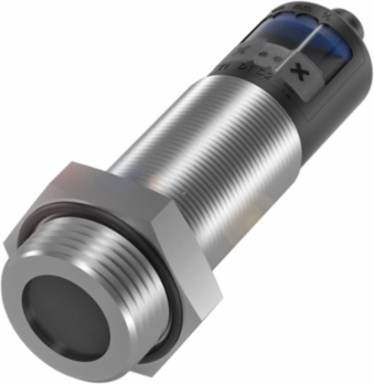

Balluff BUS M30E2-PPC-09/035-S92K-G1 Ultrasonic Sensor, 85-1500 mm Range, IP67, 6 bar Max Pressure
- MPN: BUS M30E2-PPC-09/035-S92K-G1
- PPN: BAL-BUS005Y
CAD
$1415.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Ultrasonic Sensor, 85-1500 mm Range, IP67, 6 bar Max Pressure
Documentation & Downloads
Specifications
Additional
| Operating voltage | 9...30 VDC |
|---|---|
| Switching frequency | 9 Hz |
| Repeat accuracy | 0.15% FS |
| Process connection | G 1" |
| Material sensing surface | PTFE |
| IP rating | IP67 |
| Ambient temperature | -25...70 C |
| Analog output | Analog voltage/current 0 10 V / 4 20 mA |
| Max Pressure | 6 bar |
|---|---|
| Range | 85...1500 mm |
| Style | 47 mm |
| Connection | Connector, M12x1-Male, 5-pin |
| Housing material | 1.4571 stainless steel; PBT; TPU |
| Approval/Conformity | cULus; CE; WEEE; UKCA |
| Switching output | PNP NO/NC |
| Country of Origin | Germany |
