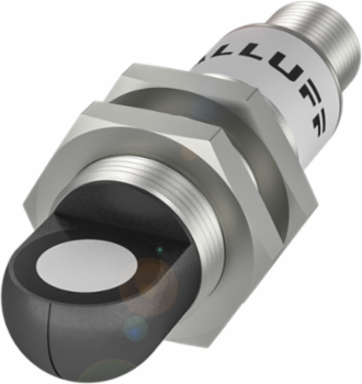

Balluff BUS W18M1-XB-07/035-S92G Ultrasonic Sensor 18 mm, 65-600 mm Range, IP67, 4-20 mA Output
- MPN: BUS W18M1-XB-07/035-S92G
- PPN: BAL-BUS004U
CAD
$722.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Ultrasonic Sensor 18 mm, 65-600 mm Range, IP67, 4-20 mA Output
Documentation & Downloads
Specifications
Additional
| Range | 65...600 mm |
|---|---|
| Ambient Temperature | -25...70 C |
| Size | 18 mm |
| Repeat Accuracy | 0.15% FS |
| Material Sensing Surface | PU foam/Epoxy resin/Glass |
| Approval/Conformity | cULus, CE, WEEE, UKCA |
| Operating Voltage | 10...30 VDC |
|---|---|
| Output | 4 20 mA analog current |
| Connection | M12x1 connector, 5-pin male |
| Housing Material | Brass, nickel-plated; PBT |
| IP Rating | IP67 (IEC 60529) |
| Country of Origin | Germany |
