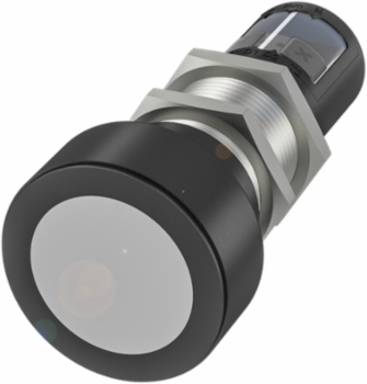

Balluff BUS M30M1-PPX-35/340-S92K Ultrasonic Sensor 47.5 mm, Range 350-5000 mm, IP67, 9-30 VDC
- MPN: BUS M30M1-PPX-35/340-S92K
- PPN: BAL-BUS003P
CAD
$615.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Ultrasonic Sensor 47.5 mm, Range 350-5000 mm, IP67, 9-30 VDC
Documentation & Downloads
Specifications
Additional
| Voltage | 9...30 VDC |
|---|---|
| Switching frequency | 4 Hz |
| Repeat accuracy | 0.15 % FS |
| Length | 47.5 mm |
| Material sensing surface | PU foam/Epoxy resin/Glass |
| Connection | Connector, M12x1-Male, 5-pin |
| Country of Origin | Germany |
| Range | 350...5000 mm |
|---|---|
| Switching output | PNP NO/NC |
| Ambient temperature | -25...70 C |
| Housing material | Brass, nickel-plated; PBT, TPU |
| IP rating | IP67 |
| Approval/Conformity | cULus; CE; WEEE; UKCA |
