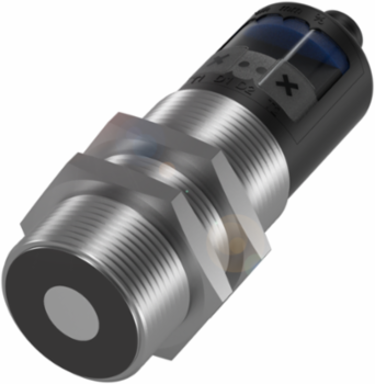

Balluff BUS M30M1-XC-07/035-S92K Ultrasonic Sensor 30 mm with 65-600 mm Range, IP67
- MPN: BUS M30M1-XC-07/035-S92K
- PPN: BAL-BUS005K
CAD
$1035.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Ultrasonic Sensor 30 mm with 65-600 mm Range, IP67
Documentation & Downloads
Specifications
Additional
| Range | 65...600 mm |
|---|---|
| Repeat accuracy | 0.15 % FS |
| Diameter | 30 mm |
| Connection | Connector, M12x1-Male, 5-pin |
| Material sensing surface | PU foam/Epoxy resin/Glass |
| Approval/Conformity | cULus; CE; WEEE; UKCA |
| Operating voltage Ub | 9...30 VDC |
|---|---|
| Ambient temperature | -25...70 C |
| Analog output | Voltage/current 0...10 V/4...20 mA |
| Housing material | Brass, nickel-plated; PBT, TPU |
| IP rating | IP67 |
| Country of Origin | Germany |
