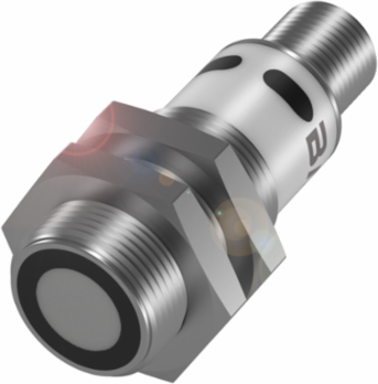

Balluff BUS M18M1-GPXI-07/035-S92G Ultrasonic Sensor 18 mm IP67 10-30 VDC 65-600 mm Range
- MPN: BUS M18M1-GPXI-07/035-S92G
- PPN: BAL-BUS004Z
CAD
$568.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Ultrasonic Sensor 18 mm IP67 10-30 VDC 65-600 mm Range
Documentation & Downloads
Specifications
Additional
| Voltage | 10...30 VDC |
|---|---|
| Repeat accuracy | 0.15 % FS |
| IP rating | IP67 |
| Ambient temperature | -25...70 C |
| Material sensing surface | PU foam/Epoxy resin/Glass |
| Connection | Connector, M12x1-Male, 5-pin |
| Approval/Conformity | cULus; CE; WEEE; UKCA |
| Range | 65...600 mm |
|---|---|
| Switching frequency | 12 Hz |
| Diameter | 18 mm |
| Housing material | Brass, nickel-plated; PBT |
| Switching output | PNP/NPN NO/NC push-pull |
| Interface | IO-Link 1.0 |
| Country of Origin | Germany |
