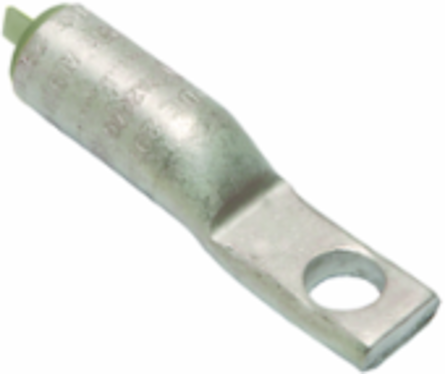

Burndy YA4CA1 HYLUG Aluminum Terminal 1 Hole, 4 AWG, 600 V-35 kV, 1/4 Inch Stud, Green
- MPN: YA4CA1
- UPC: 781810751855
- PPN: BUR-534177
CAD
$33.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Uninsul Al Comp Terminal, 1 Hole, #4 Str, 600 V-35 kV, 1/4" Stud, Closed bbl, Green, 375 index, For Al & Cu Cond, Color Coded End Cap.
Features
- Features: Type YA-A Aluminum Tin-Plated Compression HYLUG Terminals Are Dual-Rated And Designed For Use On Both Aluminum And Copper Conductors From #12 Solid Through 2000 KCMIL, They Are Designed For Heavy Duty Applications To 35 KV, YA-A Terminals Are Prefilled With PENETROX, And Assembled With Color-Coded End Caps, Available With One, Two, And Four-Hole NEMA Tongues, The Aluminum HYLUG Terminals Are Designed For A Permanent Trouble-Free Electrical Termination, Manufactured From High Conductivity, Wrought Aluminum With Heavy Duty Wall Thickness: Provides Maximum Conductivity, Low Resistance And Ductility For An Excellent Combination Of Electrical And Crimp Forming Properties, Electro-Tin Plated: Provides Durable Long Lasting Corrosion Resistance, Internally Bevelled Barrel: Provides Easy Cable Insertion, Meets UL486B 90 DEG C Requirements: Provides A Quality Electrical Dual Connection, Connector Is Clearly Marked With Wire Size, Die Index, Color-Code And The Proper Number And Location Of Crimps: Provides Easy Identification And Tooling Recommendation For A Proper Compression Which Forms A Homogeneous Mass Resulting In An Excellent Electrical Connection, Factory Prefilled With PENETROX Oxide Inhibiting Compound: Oxide Inhibiting Compound Contains Homogeneously Suspended Metallic Particles To Penetrate The Wires Oxides, Establish Electrical Continuity And Forms An Airtight Connection, Color-Coded End Caps Inserted In Barrel End: Prevents Foreign Materials From Entering And Contaminating The Connector Prior To Usage Plus Identifies The Proper Color-Coded Die For A Reliable Connection, UL Listed 90 DEG C, 600 V - 35 KV, Wire Strip Length: 7/8 IN, Finish: Electro-Tin Plated, Temperature Rating: 90 DEG C, Color Code: Green, Tools, Die Set Catalog Number, And (number Of Crimps): Y35, Y39, Y750 Tool, U4CABT Die, (1), Y46 Tool, U4CABT Die With PUADP-1 Adapter, (1), Dieless Tools (number Of Crimps): Mechanical: MY29-3, MRC840AL Tool, (1), Hydraulic HYPRESS: Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (1), Die Index: 375
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 7/8 in
- Dimension - Bolt Hole Size inch
- 0.27 in
- Dimension - D inch
- 0.75 in
- Dimension - Hole Size mm
- 7 mm
- Dimension - Length Overall inch
- 2.13 in
- Dimension - Outside Diameter inch
- 0.43 in
- Dimension - Strip Length inch
- 7/8
- Dimension - Thread Size
- 1/4 in
- Physical Attribute - Tongue Angle
- Straight
Dimension - B Length inch0.88 in
Dimension - Bolt Size fraction1/4
Dimension - Hole Size inch0.28 in
Dimension - L Length Overall mm54 mm
Dimension - N inch0.33 in
Dimension - Pad Width inch0.47 in
Dimension - Stud Size inch1/4
Dimension - Z inch0.42 in
Certifications and Compliance
- Certification - CSA Approved
- No
- Certification - UL Recognized
- No
- Industry Standard(s)
- UL468A-468B
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
Standards - Industry Standards MetUL468A-468B
UL ListedYes
Conductor Related
- Conductor - AL Str Size
- 4 AWG
- Conductor - Copper Str Size
- 4 AWG
Conductor - AL Str Size Range4 AWG
Conductor - Copper Str Size Range4 AWG
General
- Application
- For Aluminum And Copper Conductors
- Connector Type
- Terminal
- Feature - Barrel Style
- Chamfered
- Item Type
- 3B
- Physical Attribute - Number of Holes
- 1
- Plated
- Y
- Sub Brand
- HYLUG
- Trade Name
- HYLUG™
- UPC
- 781810751855
Color CodeGreen
Die Index375
Feature - Barrel TypeStandard
MaterialAluminum
Physical Attribute - Tongue TypeStandard
Plating TypeTin - Electro Plated
Temperature Rating194
TypeYA-A, Dual Rated
UPC 12 Digit7818107518555
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
