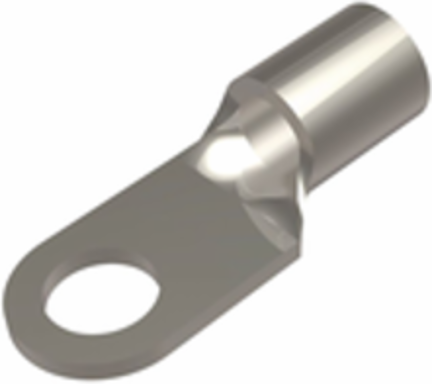

Burndy YAD27M20E34 Uninsulated Ring Terminal For 3/0 AWG
- MPN: YAD27M20E34
- UPC: 781810549513
- PPN: BUR-50002483
- UNSPSC: 39121405
CAD
$23.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Uninsulated Ring Terminal For 3/0 AWG.
Features
- Constructed of pure electrolytic copper for maximum conductivity, low resistance and ductility for excellent crimp forming properties
- Long brazed seam barrel and deep V groove inner serrations provide optimum conductivity reliability and holding power aftercrimping
- Electro-tin plating to provide durable, long-lasting corrosion resistance
- Wire range is clearly marked on terminal for easy identification
- Inspection hold for an easy visual check of wire insertion
- Long neck terminal permits easy bending and stacking of several terminals on a common stud
Specifications
Key Specifications
- Country of Origin
- Taiwan
- Dimension - B Length inch
- 0.79 in
- Dimension - Hole Size inch
- 0.80 in
- Dimension - Length Overall inch
- 2.37 in
- Dimension - Pad Width inch
- 1.14 in
- Dimension - Stud Size inch
- 3/4
- Feature - Barrel Type
- Long
- Plated
- Y
- Product Type
- TERMINAL
- Trade Name
- HYLUG™
- Sub Brand
- TERMINALS, HYLUG
- Conductor Size
- 3/0 AWG
- Connector Type
- Ring Terminal
- Certification Agency
- Proposition 65
- Description - Invoice
- 3/0 STR FLEX 3/4 STUD
- Harmonization Code
- 8535908020
- Lead Time
- 11 wk
- Order Multiple
- 25 EA
- Sub Class Code
- B57BK8F
- Material
- Copper
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 0.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 250 EA
- Each - Number of Sub Packs
- 1
- Lowest Level UOM
- Each
- Package - GTIN - Package
- 30781810549514
- Package - Pack Description
- Package
- Package - Total Units
- 25 EA
- Package Length
- 5.750 in
- Package Weight
- 2.250 lb.
- Pallet - GTIN - Package
- 70781810549512
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
- NAICS Code
- 423610
Conductor - Copper Str Size3/0 AWG
Dimension - Bolt Size fraction3/4
Dimension - L Length Overall mm58 mm
Dimension - Outside Diameter inch0.79 in
Dimension - Strip Length inch7/8
Width1.10 in
Physical Attribute - Tongue TypeRing
Plating TypeTin - Electro Plated
Standards - RoHS Compliance StatusCM
ApplicationThe YAD uninsulated OEM lug terminal is constructed of electrolytic copper
TypeRing Tongue
Conductor TypeCU C Str-Size;CU C Flex-Size
ARRA CompliantNo
Class CodeB57
Freight Class Code16027000
Image Actual Or RepresentativeA
MSDS FlagNo
Stock IndicatorN - Non-stock
UL ListedNo
Voltage - Maximum35 kV
BOX SIZE7.000x20.500x10.250 (in)
Carton - Number of Sub Packs250
Carton - SCC-14 Next Lower Level Sub Pack00781810549513
Case - SCC-14 Next Lower Level Sub Pack30781810549514
Each - Pack DescriptionEach
Package - Gross Weight per Pack2.225 lb.
Package - Number of Sub Packs25
Package - SCC-14 Next Lower Level Sub Pack00781810549513
Package Height4.400 in
Package Quantity25 EA
Package Width3.750 in
Pallet Height46.500 in
Pallet Weight887.040 lb.
Standard Package Quantity25
Certifications
- Buy American Compliant
- No
- cULus
- No
- UL Recognized
- No
CSA ApprovedNo
ETLNo
