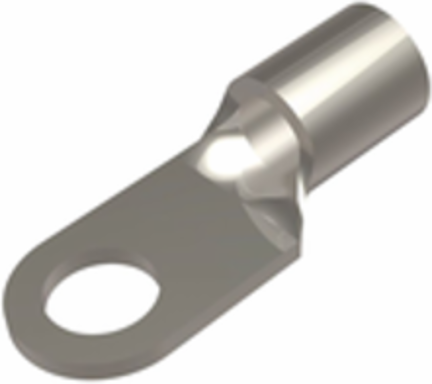

Burndy YAD33M20E34 Uninsulated Ring Terminal For 400 - 450 kcmil
- MPN: YAD33M20E34
- UPC: 781810549292
- PPN: BUR-50002441
- UNSPSC: 39121405
CAD
$81.37
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Uninsulated Ring Terminal For 400 - 450 kcmil.
Features
- Constructed of pure electrolytic copper for maximum conductivity, low resistance and ductility for excellent crimp forming properties
- Long brazed seam barrel and deep V groove inner serrations provide optimum conductivity reliability and holding power aftercrimping
- Electro-tin plating to provide durable, long-lasting corrosion resistance
- Wire range is clearly marked on terminal for easy identification
- Inspection hold for an easy visual check of wire insertion
- Long neck terminal permits easy bending and stacking of several terminals on a common stud
Specifications
Key Specifications
- Country of Origin
- Taiwan
- Conductor - Copper Str Size Range
- 400 kcmil - 450 kcmil
- Dimension - Bolt Size fraction
- 3/4
- Dimension - L Length Overall mm
- 76 mm
- Dimension - Outside Diameter inch
- 1.24 in
- Dimension - Strip Length inch
- 1-3/8
- Width
- 1.50 in
- Physical Attribute - Tongue Type
- Ring
- Plating Type
- Tin
- Standards - RoHS Compliance Status
- CM
- Application
- The YAD uninsulated OEM lug terminal is constructed of electrolytic copper
- Type
- Ring Tongue
- Connector Type
- Ring Terminal
- Certification Agency
- Proposition 65
- Description - Invoice
- 400-450KCM FLEX 3/4 STUD
- Harmonization Code
- 8535908020
- Lead Time
- 11 wk
- Order Multiple
- 10 EA
- Sub Class Code
- B57BK8F
- Material
- Copper
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 0.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 100 EA
- Each - Number of Sub Packs
- 1
- Lowest Level UOM
- Each
- Package - GTIN - Package
- 30781810549293
- Package - Pack Description
- Package
- Package - Total Units
- 10 EA
- Package Length
- 6.000 in
- Package Weight
- 3.880 lb.
- Pallet - GTIN - Package
- 70781810549291
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
- NAICS Code
- 423610
Conductor - Copper Str Size400 kcmil;450 kcmil
Dimension - B Length inch1.26 in
Dimension - Hole Size inch0.80 in
Dimension - Length Overall inch3.01 in
Dimension - Pad Width inch1.50 in
Dimension - Stud Size inch3/4
Feature - Barrel TypeLong
PlatedY
Product TypeTERMINAL
Trade NameHYLUG™
Sub BrandTERMINALS, HYLUG
Conductor TypeCU C Str-Size;CU C Flex-Size
ARRA CompliantNo
Class CodeB57
Freight Class Code16027000
Image Actual Or RepresentativeA
MSDS FlagNo
Stock IndicatorN - Non-stock
UL ListedNo
Voltage - Maximum35 kV
BOX SIZE9.694x12.926x8.617 (in)
Carton - Number of Sub Packs100
Carton - SCC-14 Next Lower Level Sub Pack00781810549292
Case - SCC-14 Next Lower Level Sub Pack30781810549293
Each - Pack DescriptionEach
Package - Gross Weight per Pack3.84 lb.
Package - Number of Sub Packs10
Package - SCC-14 Next Lower Level Sub Pack00781810549292
Package Height4.500 in
Package Quantity10 EA
Package Width4.000 in
Pallet Height33.583 in
Pallet Weight1791.000 lb.
Standard Package Quantity10
Certifications
- Buy American Compliant
- No
- cULus
- No
- UL Recognized
- No
CSA ApprovedNo
ETLNo
