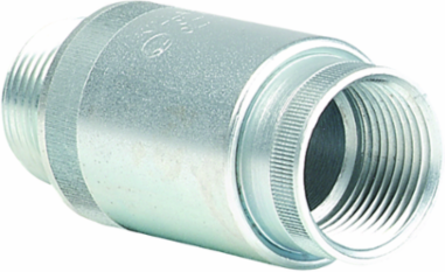

Killark UNYS1 Short Male Expansion Conduit Union 1/2 Inch, Zinc Plated Steel

Short Male Expansion Conduit Union 1/2 Inch, Zinc Plated Steel
  • MPN: UNYS1
  • UPC: 783936010496
  • PPN: HBL-UNYS1
  • UNSPSC: 39131708

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$116.35/ EA

Description

UNY Series Fittings - Expansion Conduit Unions - Male - Short - Hub Size 1/2 In

Features

  • Tapered threaded hubs (NPT) for rigid conduit and IMC
  • Telescoping components allows conduit to be inserted between fixed threaded hubs
  • Internal copper alloy grounding spring assures positive grounding
  • Close tolerance of mating parts eliminates passage of flame
  • Compact diameter allows use where conduit is closely spaced
  • Tapered threaded hubs (NPT) for rigid conduit and IMC. Telescoping components allows conduit to be inserted between fixed threaded hubs. Internal copper alloy grounding spring assures positive grounding. Close tolerance of mating parts eliminates passage

Specifications

Specifications

Country of Origin
United States
Application
To provide for slight expansion and contraction of conduit runs. To retrofit sections of conduit runs.
Finish
Zinc Plated
Hub Size
1/2"
Special Features
Tapered threaded hubs (NPT) for rigid conduit and IMC. Telescoping components allows conduit to be inserted between fixed threaded hubs. Internal copper alloy grounding spring assures positive grounding. Close tolerance of mating parts eliminates passage
Width
1.19 in
ARRA Compliant
Contact Manufacturer
Description - Invoice
1/2" ST EXPAN SHORT UNION MALE
Harmonization Code
7307199060
Lead Time
21 wk
Order Multiple
1 EA
Sub Class Code
D30D237
Material
Steel
Base Unit of Measure
EA
Carton - Gross Weight per Pack
2.350 lb.
Carton - Pack Description
Carton
Carton - Total Units
5
Dimensions3.48 in x 1.19 in x 1.19 in
ColorGlossy gray
Height1.19 in
Length3.48 in
TypeShort Male Expansion Conduit Union
Finish TypeZinc Plated
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Gross Weight with Packaging0.47
SeriesUNY Series
BOX SIZE4.250x5.750x5.750 (in)
Carton - Number of Sub Packs5
Carton - SCC-14 Next Lower Level Sub Pack00783936010496
Master Pack DescriptionEach

Certifications
