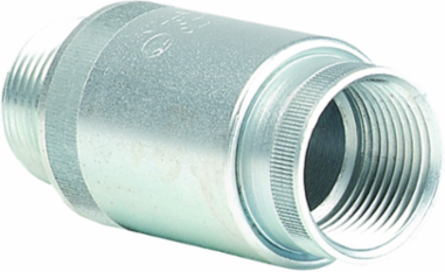

Killark UNYS3 Short Male Expansion Conduit Union 1 Inch NPT, Steel, Zinc Plated
- MPN: UNYS3
- UPC: 783936010519
- PPN: HBL-UNYS3
- UNSPSC: 39131708
CAD
$219.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
UNY Series Fittings - Expansion Conduit Unions - Male - Short - Hub Size 1 In
Features
- Tapered threaded hubs (NPT) for rigid conduit and IMC
- Telescoping components allows conduit to be inserted between fixed threaded hubs
- Internal copper alloy grounding spring assures positive grounding
- Close tolerance of mating parts eliminates passage of flame
- Compact diameter allows use where conduit is closely spaced
- Tapered threaded hubs (NPT) for rigid conduit and IMC. Telescoping components allows conduit to be inserted between fixed threaded hubs. Internal copper alloy grounding spring assures positive grounding. Close tolerance of mating parts eliminates passage
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Application
- To provide for slight expansion and contraction of conduit runs. To retrofit sections of conduit runs.
- Finish
- Zinc Plated
- Hub Size
- 1"
- Special Features
- Tapered threaded hubs (NPT) for rigid conduit and IMC. Telescoping components allows conduit to be inserted between fixed threaded hubs. Internal copper alloy grounding spring assures positive grounding. Close tolerance of mating parts eliminates passage
- Width
- 1.69 in
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- 1" ST EXPAN SHORT UNION MALE
- Harmonization Code
- 7307199060
- Lead Time
- 21 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D237
- Material
- Steel
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 4.300 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 5
- NAICS Code
- 3359323108
Dimensions3.93 in x 1.69 in x 1.69 in
ColorGlossy gray
Height1.69 in
Length3.93 in
TypeShort Male Expansion Conduit Union
Finish TypeZinc Plated
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Gross Weight with Packaging0.86
SeriesUNY Series
BOX SIZE4.375x5.750x5.875 (in)
Carton - Number of Sub Packs5
Carton - SCC-14 Next Lower Level Sub Pack00783936010519
Master Pack DescriptionEach
