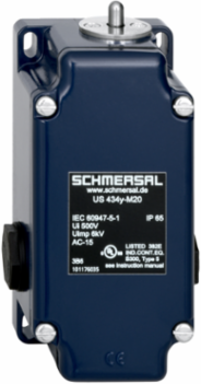

Schmersal 101176035 Position Switch, Metal Enclosure, 138 mm Height, IP65, Plunger Actuation
- MPN: 101176035
- PPN: SCM-101176035
CAD
$484.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Position Switch, Metal Enclosure, 138 mm Height, IP65, Plunger Actuation
Features
- Metal enclosure
- 4 Contacts
- 62 mm x 127 mm x 50 mm ( basic component)

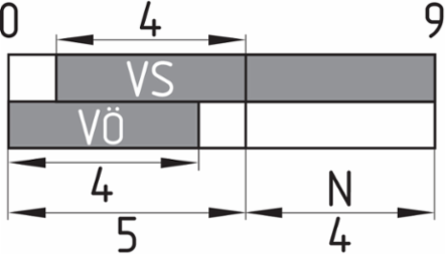

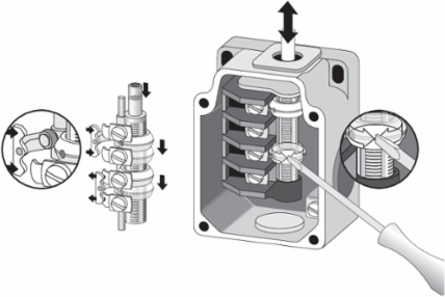

- Switching points and contact function adjustable
- 3 cable entries M 20 x 1.5
Documentation & Downloads
Specifications
Electrical data
- Thermal test current
- 16 A
- Switching principle
- Slow action

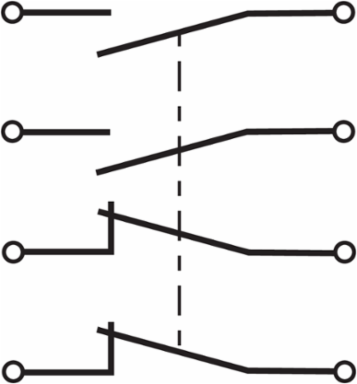

Switching elementNC contact NO contact
Material of the contacts, electricalSilver
Note
- Note (General)
- Type of contact and switching points can be factory set to order. | Actuation from the side of the plunger should be avoided, since this reduces the mechanical life of the position switch.

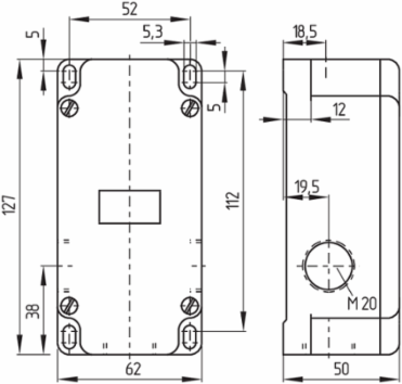

Mechanical data - Dimensions
- Length of sensor
- 50 mm
- Height of sensor
- 138 mm
Width of sensor62 mm
Diameter of the Plunger6 mm
Ambient conditions - Insulation values
- Rated insulation voltage U
- 500 V
Safety classification - Safety outputs
- B
- 2,000,000 Operations
General data - Features
- Number of normally closed (NC)
- 2
Number of normally open (NO)2
General data
- Standards
- EN IEC 60947-5-1
- Slide form
- Sphere
- Enclosure coating material
- painted
Working principlemechanical
Enclosure materialLight alloy die-casting
Gross weight435 g
Ambient conditions
- Degree of protection
- IP65
Ambient temperature-20 ... +60 °C
Mechanical data - Connection technique
- Termination
- Screw terminals M20 x 1.5
- Cable section, maximum
- 2.5 mm²
- Wire cross-section
- 13 AWG
Cable section, minimum1.5 mm²
Note (Cable section)All indications including the conductor ferrules.
Mechanical data
- Actuating element
- Plunger
- Actuating angle
- 20 °
- Actuating speed, minimum
- 1 mm/min
- Note (Actuating speed)
- Actuating speed with vertical actuating angle to switch axis
Mechanical life, minimum10,000,000 Operations
Contact opening2 x 1.5 mm
Actuating speed, maximum1 m/s
Approvals - Standards
- Certificates
- cULus
