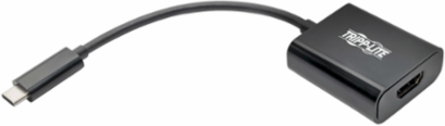

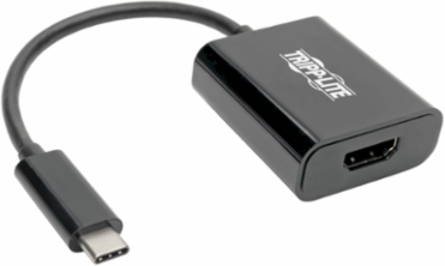

Tripp Lite U444-06N-HDB-AM USB-C to HDMI Adapter 4K @ 30Hz, Black, 6 Inch Length
- MPN: U444-06N-HDB-AM
- UPC: 037332210661
- PPN: TRP-U444-06N-HDB-AM
CAD
$49.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
USB-C to HDMI Adapter 4K @ 30Hz, Black, 6 Inch Length
Features
- Transmits video signals from sources supporting USB DisplayPort Alt Mode
- Delivers UHD picture quality at resolutions up to 4K @ 24/25/30 Hz
- Supports USB 3.1 Gen 1 speeds up to 5 Gbps to ensure fast data transfers
- Reversible USB-C plug connects in either direction for immediate no-fuss use
- Easy installation with plug-and-play operation—no software required
- 3-year limited warranty

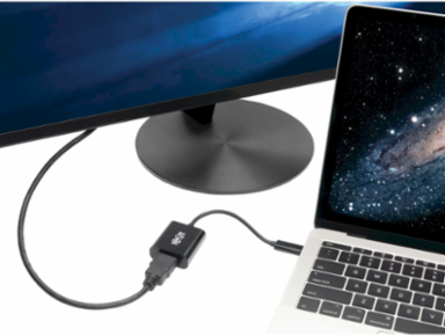

- USB-C to HDMI Cable Connects a 4K HDMI Display to Your USB-C or Thunderbolt 3 Device
- Supports USB DisplayPort Alternate Mode for Transmitting Video Signals
- Transmits Crystal-Clear 4K HDMI Video and Digital Audio
- Built-In USB-C Cable Connects in Either Direction
- Ready to Use Right Out of the Package
- 3-Year Warranty and Environmentally Responsible Design
Documentation & Downloads
Specifications
Features & Specifications
| Max Supported Video Resolution | HDMI: 3840 X 2160 (4K) @ 24/25/30HZ |
|---|---|
| HDMI Specification | 1.4 |
| USB Specification | USB 3.1 Gen 1 (up to 5 Gbps) |
| USB Power Delivery (PD) Charging Support | No |
| Displayport Specification | 1.2 |
|---|---|
| HDCP Specification | 1.4 |
| Driver Required | No |
| Technology | USB 3.1 (Gen 1); HDMI; USB |
Battery
| Battery Charging (1.2 Port) | No |
|---|
Certifications
| Certifications | Tested to CE, FCC, RoHS, REACH |
|---|
Connections
| Ports | 1 |
|---|---|

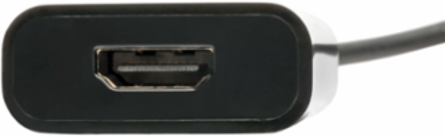

| Side B - Connector 1 | HDMI (FEMALE) |

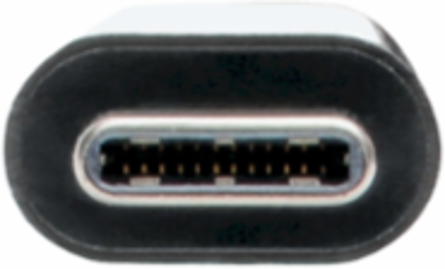

| Side A - Connector 1 | USB C (MALE) |
|---|---|
| Connector Plating | Nickel |
Physical
| Cable Jacket Rating | VW-1 |
|---|---|
| Material of Construction | PVC and ABS |
| Shipping Weight (lbs.) | 0.10 |
| Unit Packaging Type | Box |
| Color | Black |
|---|---|
| Shipping Dimensions (hwd / in.) | 0.80 x 3.80 x 4.70 |
| Unit Dimensions (hwd / in.) | 0.26 x 0.49 x 1.38 |
| Unit Weight (lbs.) | 0.05 |
Input
| Bus Powered | Yes |
|---|---|
| Product Length (cm.) | 15.24 |
| Product Length (m.) | 0.15 |
| Product Length (in.) | 6 |
|---|---|
| Product Length (ft.) | 0.5 |
Communications
| Signal Range (ft.) | 16 |
|---|
Environmental
| Operating Temperature Range | 32 to 113 F (0 to 45 C) |
|---|---|
| BTUs | 2.1 BTU/Hr |
| Operating Humidity Range | 10% to 85% RH, Non-Condensing |
| Storage Temperature Range | 14 to 158 F (-10 to 70 C) |
|---|---|
| Power Consumption (Watts) | 0.6 |
| Storage Humidity Range | 5% to 90% RH, Non-Condensing |
Overview
| UPC Code | 037332210661 |
|---|
Warranty
| Product Warranty Period (Worldwide) | 3-year limited warranty |
|---|
