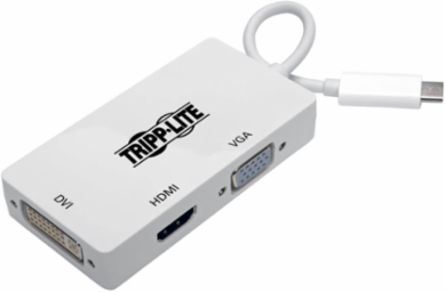

Tripp Lite U444-06N-HDV4K USB-C Multiport Adapter, 4K HDMI/DVI/VGA, Plug-and-Play, 6 Inch
- MPN: U444-06N-HDV4K
- UPC: 037332203571
- PPN: TRP-U444-06N-HDV4K
CAD
$44.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

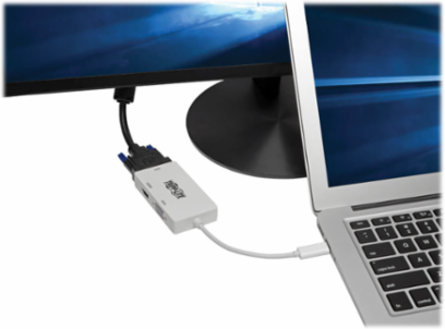

All-in-one converter/adapter connects a USB-C or Thunderbolt™ 3 port to an HDMI, DVI or VGA display without the need to carry separate adapters. Designed for MacBook®, Google Chromebook Pixel™ and other USB-C computers.
Features
- Separate DVI, HD15 and HDMI female connectors
- HDMI port supports 4K x 2K video resolutions @ 30 Hz
- Supports USB DisplayPort Alternate Mode
- Plug and play—no software, drivers or power supply needed
- Low-profile design for easy carrying in laptop bag or briefcase
- 3-year limited warranty
Documentation & Downloads
Specifications
Features & Specifications
| Max Supported Video Resolution | HDMI: 3840 X 2160 (4K X 2K) @ 30HZ, VGA: 1920 x 1200 (1080p) @ 60Hz, DVI: 1920 x 1080 (1080p) @ 60Hz |
|---|---|
| HDCP Specification | 1.4 |
| Driver Required | No |
| HDMI Specification | 1.4 |
|---|---|
| USB Specification | USB 3.1 Gen 1 (up to 5 Gbps) |
| Technology | DVI; HDMI; USB 3.0 (SuperSpeed); USB 3.1 (Gen 1); VGA/SVGA |
Battery
| Battery Charging (1.2 Port) | No |
|---|
Certifications
| Certifications | Tested to CE, FCC, RoHS, REACH |
|---|
Connections
| Ports | 3 |
|---|---|

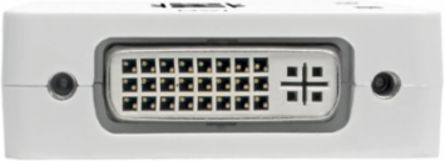

| Side B - Connector 1 | DVI-I DUAL-LINK (FEMALE) (WIRED TO DVI-D SINGLE-LINK) |
| Side B - Connector 3 | HDMI (FEMALE) |

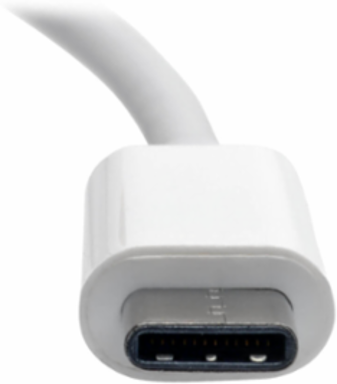

| Side A - Connector 1 | USB C (MALE) |
|---|---|
| Side B - Connector 2 | HD15 (FEMALE) |
| Connector Plating | Nickel |
Physical
| Cable Jacket Rating | VW-1 |
|---|---|
| Color | White |
| Shipping Dimensions (hwd / in.) | 0.91 x 5.51 x 3.94 |
| Unit Dimensions (hwd / in.) | 0.6 x 3.3 x 1.8 |
| Unit Weight (lbs.) | 0.12 |
| Cable Outer Diameter (OD) | 3.9mm |
|---|---|
| Material of Construction | PVC, ABS |
| Shipping Weight (lbs.) | 0.15 |
| Unit Packaging Type | Box |
Input
| Bus Powered | Yes |
|---|---|
| Product Length (cm.) | 15.24 |
| Product Length (m.) | 0.15 |
| Product Length (in.) | 6 |
|---|---|
| Product Length (ft.) | 0.5 |
Environmental
| Operating Temperature Range | 32 to 113 F (0 to 45 C) |
|---|---|
| BTUs | 6.1 BTU/Hr |
| Operating Humidity Range | 10% to 85% RH, Non-Condensing |
| Storage Temperature Range | 14 to 158 F (-10 to 70 C) |
|---|---|
| Power Consumption (Watts) | 1.8 |
| Storage Humidity Range | 5% to 90% RH, Non- Condensing |
Overview
| UPC Code | 037332203571 |
|---|
Warranty
| Product Warranty Period (Worldwide) | 3-year limited warranty |
|---|
