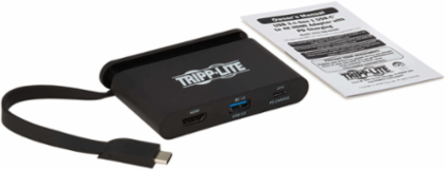

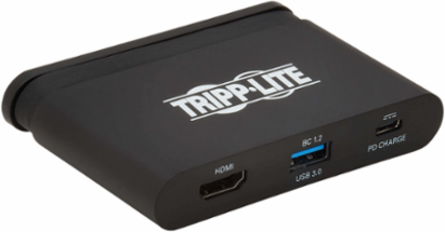

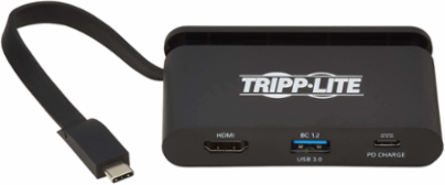

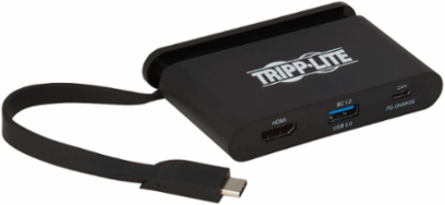

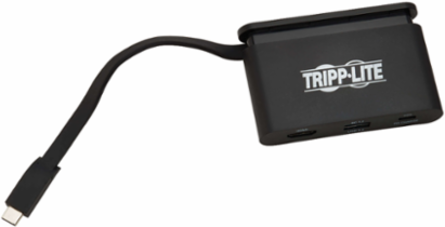

Tripp Lite U444-T6N-H4UBC USB-C Multiport Adapter with 4K HDMI, 100W PD, 3 Ports, Black
- MPN: U444-T6N-H4UBC
- UPC: 037332232779
- PPN: TRP-U444-T6N-H4UBC
CAD
$70.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
USB-C Multiport Adapter with 4K HDMI, 100W PD, 3 Ports, Black
Features
- Transmits video signals from sources supporting USB-C DisplayPort Alt Mode
- Delivers UHD picture quality at resolutions up to 3840 x 2160 (4K x 2K) @ 30 Hz
- Power Delivery cable provides 5A (100W) power output for charging connected device
- Supports USB 3.1 Gen 1 speeds up to 5 Gbps to ensure fast data transfers
- Reversible USB-C plug connects in either direction for immediate no-fuss use
- 3-year limited warranty

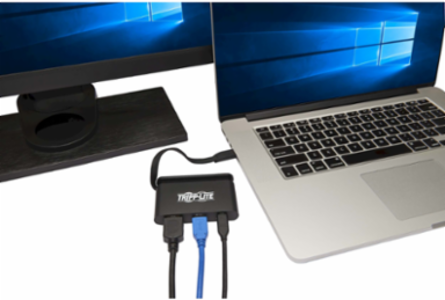

- USB 3.1 Type-C Adapter Connects an HDMI Monitor to Your USB-C or Thunderbolt 3 Device
- Supports USB-C DisplayPort Alternate Mode for Transmitting Audio/Video Signals
- Transmits Crystal-Clear 4K HDMI Video and Digital Audio
- PD Charging Port Charges Connected Device via AC Wall Charger
- Connects USB Peripherals and Transfers Data at Fast USB 3.1 Gen 1 Speeds
- Self-Storing USB-C Cable Connects in Either Direction
- Ready to Use Right Out of the Package
Documentation & Downloads
Specifications
Features & Specifications
| Max Supported Video Resolution | DP/HDMI: 3840 X 2160 (4K X 2K) @ 30HZ |
|---|---|
| HDCP Specification | 1.4 |
| Driver Required | No |
| Technology | USB 3.1 (Gen 1); HDMI; USB; PD Charging |
| HDMI Specification | 1.4 |
|---|---|
| USB Specification | USB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps) |
| USB Power Delivery (PD) Charging Support | Yes |
| USB Power Delivery (PD) Charging Specification | 3.0 |
Battery
| Battery Charging (1.2 Port) | Yes |
|---|
Certifications
| Certifications | Tested to CE, FCC, RoHS, REACH |
|---|
Connections
| Ports | 3 |
|---|---|
| Side B - Connector 1 | HDMI (FEMALE) |
| Side B - Connector 3 | USB Type-C (FEMALE) |
| Side A - Connector 1 | USB C (MALE) |
|---|---|
| Side B - Connector 2 | USB 3.0 A (FEMALE) |
| Connector Plating | Nickel |
Physical
| Cable Jacket Rating | VW-1 |
|---|---|
| Material of Construction | TPE and ABS |
| Shipping Weight (lbs.) | 0.00 |
| Unit Packaging Type | Box |
| Color | Black |
|---|---|
| Shipping Dimensions (hwd / in.) | 0.00 x 0.00 x 0.00 |
| Unit Dimensions (hwd / in.) | 0.55 x 1.57 x 2.32 |
| Unit Weight (lbs.) | 0.07 |
Input
| Bus Powered | Yes |
|---|---|
| Product Length (cm.) | 15.24 |
| Product Length (m.) | 0.15 |
| Product Length (in.) | 6 |
|---|---|
| Product Length (ft.) | 0.5 |
Output
| Charging Ports / Amps | 1.5A; 5A |
|---|
| Charging Watts | 100 |
|---|
Environmental
| Operating Temperature Range | 32 to 113 F (0 to 45 C) |
|---|---|
| Operating Humidity Range | 10% to 85% RH, Non-Condensing |
| Power Provided to Connected Device(s) | 100W (20/5A) |
| Storage Temperature Range | 14 to 158 F (-10 to 70 C) |
|---|---|
| Storage Humidity Range | 5% to 90% RH, Non-Condensing |
Overview
| UPC Code | 037332232779 |
|---|
Warranty
| Product Warranty Period (Worldwide) | 3-year limited warranty |
|---|
