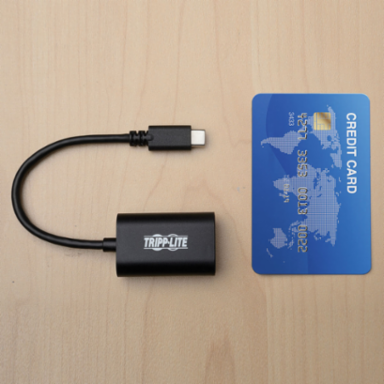

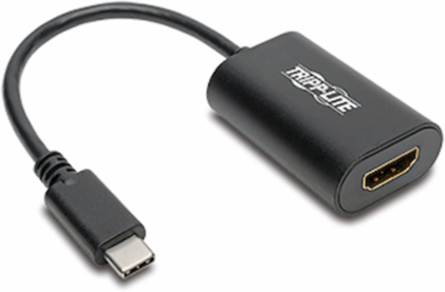

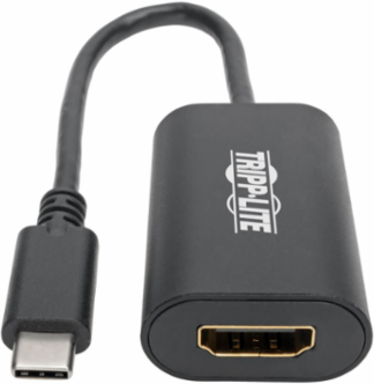

Tripp Lite U444-06N-HD4K6B USB-C to HDMI 4K Adapter, HDCP 2.2, Supports 4096 x 2160 @ 60 Hz
- MPN: U444-06N-HD4K6B
- UPC: 037332203366
- PPN: TRP-U444-06N-HD4K6B
CAD
$61.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

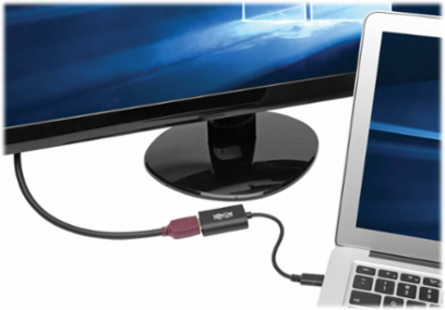

Connects your existing 4K HDMI TV, monitor or projector to the USB-C or Thunderbolt 3 port on your tablet, laptop, notebook, MacBook, Chromebook, smartphone or PC.
Features
- Supports USB DisplayPort Alternate Mode for transmitting audio/video
- Supports UHD video resolutions up to 4096 x 2160 (4K x 2K) @ 60 Hz
- Supports 7.1-channel surround sound
- Reversible USB-C plug connects in either direction
- Plug-and-play operation with no software or drivers required
- 3-year limited warranty
Documentation & Downloads
Specifications
Features & Specifications
| Max Supported Video Resolution | HDMI: 4096 X 2160 (4K X 2K) @ 60HZ |
|---|---|
| HDCP Specification | 2.2 |
| Audio Specification | 7.1 Channel Surround Sound |
| Technology | HDMI; USB; USB 3.0 (SuperSpeed); USB 3.1 (Gen 1) |
| HDMI Specification | 2.0a |
|---|---|
| USB Specification | USB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps) |
| Driver Required | No |
Battery
| Battery Charging (1.2 Port) | No |
|---|
Certifications
| Certifications | Tested to CE, FCC, RoHS, REACH |
|---|
Connections
| Ports | 1 |
|---|---|

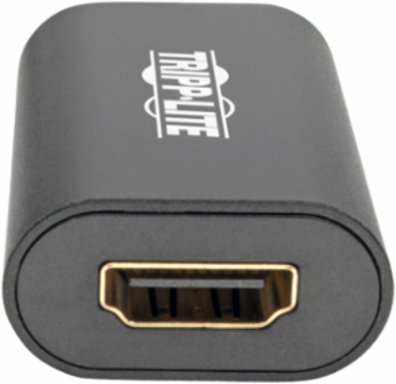

| Side B - Connector 1 | HDMI (FEMALE) |
| Contact Plating | Gold |

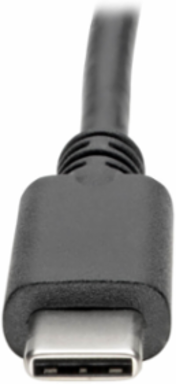

| Side A - Connector 1 | USB C (MALE) |
|---|---|
| Connector Plating | Nickel |
Physical
| Cable Jacket Rating | VW-1 |
|---|---|
| Material of Construction | ABS |
| Shipping Weight (lbs.) | 0.11 |
| Unit Packaging Type | Box |
| Color | Black |
|---|---|
| Shipping Dimensions (hwd / in.) | 1.06 x 5.71 x 3.00 |
| Unit Dimensions (hwd / in.) | 0.55 x 1.8 x 1.1 |
| Unit Weight (lbs.) | 0.04 |
Input
| Bus Powered | Yes |
|---|---|
| Product Length (cm.) | 15.24 |
| Product Length (m.) | 0.15 |
| Product Length (in.) | 6 |
|---|---|
| Product Length (ft.) | 0.5 |
Environmental
| Operating Temperature Range | -4 to 158 F (-20 to 70 C) |
|---|---|
| Relative Humidity | 20% to 80% RH, Non-Condensing |
| Power Consumption (Watts) | 0.68 |
| Storage Temperature Range | -4 to 185 F (-20 to 85 C) |
|---|---|
| BTUs | 2.3 BTU/Hr |
Overview
| UPC Code | 037332203366 |
|---|
Warranty
| Product Warranty Period (Worldwide) | 3-year limited warranty |
|---|
