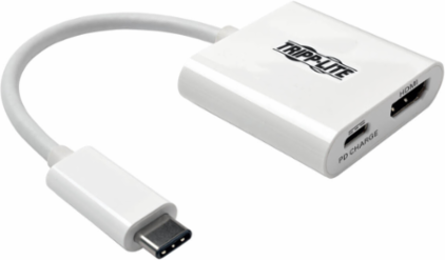

Tripp Lite U444-06N-H4-C USB-C to HDMI Adapter, Supports 4K Video & PD Charging (60W)
- MPN: U444-06N-H4-C
- UPC: 037332193926
- PPN: TRP-U444-06N-H4-C
CAD
$69.59
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

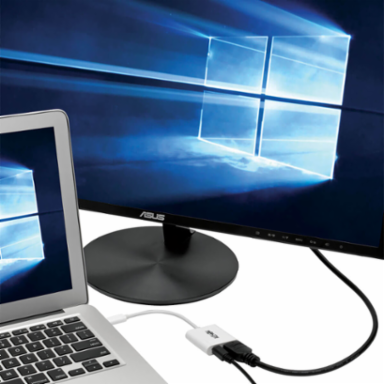

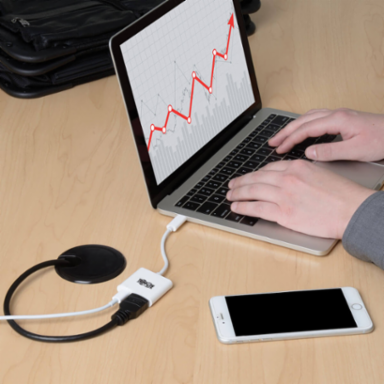

Adds HDMI and USB-C PD ports to the USB-C or Thunderbolt 3 port on your tablet, laptop, notebook, MacBook, Chromebook, smartphone or PC.
Features
- Supports USB DisplayPort Alternate Mode for transmitting audio/video
- Supports UHD video resolutions up to 3840 x 2160 (4K x 2K) @ 30 Hz
- USB-C PD charging port supports power input up to 20V 3A (60W)

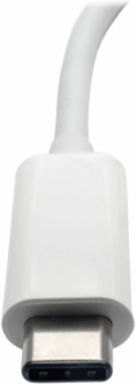

- Reversible USB-C plug connects in either direction
- Plug-and-play operation with no software or drivers required
- 3-year limited warranty
Documentation & Downloads
Specifications
Features & Specifications
| Max Supported Video Resolution | HDMI: 3840 X 2160 (4K X 2K) @ 30HZ |
|---|---|
| HDCP Specification | 1.4 |
| Driver Required | No |
| Technology | USB 3.1 (Gen 1); HDMI; USB; PD Charging |
| HDMI Specification | 1.4 |
|---|---|
| USB Specification | USB 3.1 Gen 1 (up to 5 Gbps) |
| USB Power Delivery (PD) Charging Support | Yes |
| USB Power Delivery (PD) Charging Specification | 2.0 |
Battery
| Battery Charging (1.2 Port) | No |
|---|
Certifications
| Certifications | Tested to CE, FCC, RoHS, REACH |
|---|

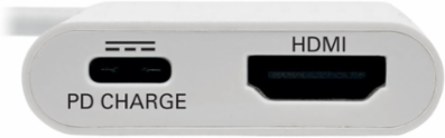

Connections
| Ports | 2 |
|---|---|
| Side B - Connector 1 | HDMI (FEMALE) |
| Connector Plating | Nickel |
| Side A - Connector 1 | USB C (MALE) |
|---|---|
| Side B - Connector 2 | USB Type-C (FEMALE) |
Physical
| Cable Jacket Rating | VW-1 |
|---|---|
| Material of Construction | PVC, ABS |
| Shipping Weight (lbs.) | 0.20 |
| Unit Packaging Type | Box |
| Color | White |
|---|---|
| Shipping Dimensions (hwd / in.) | 0.80 x 3.90 x 4.70 |
| Unit Dimensions (hwd / in.) | 0.45 x 1.7 x 1.57 |
| Unit Weight (lbs.) | 0.06 |
Input
| Bus Powered | Yes |
|---|---|
| Product Length (cm.) | 15.24 |
| Product Length (m.) | 0.15 |
| Product Length (in.) | 6 |
|---|---|
| Product Length (ft.) | 0.5 |
Output
| Charging Ports / Amps | 3A |
|---|
| Charging Watts | 60 |
|---|
Environmental
| Operating Temperature Range | 32 to 113 F (0 to 45 C) |
|---|---|
| BTUs | 5.1 BTU/Hr |
| Operating Humidity Range | 10% to 85% RH, Non-Condensing |
| Power Provided to Connected Device(s) | Up to 20V, 3A (60W) Input (USB-C) |
| Storage Temperature Range | 14 to 158 F (-10 to 70 C) |
|---|---|
| Power Consumption (Watts) | 1.5 |
| Storage Humidity Range | 5% to 90% RH, Non- Condensing |
Overview
| UPC Code | 037332193926 |
|---|
Warranty
| Product Warranty Period (Worldwide) | 3-year limited warranty |
|---|
