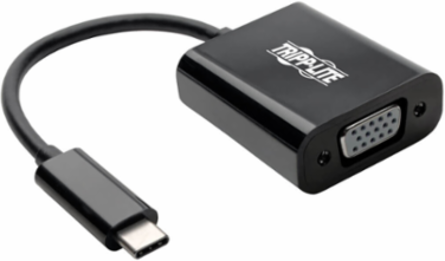

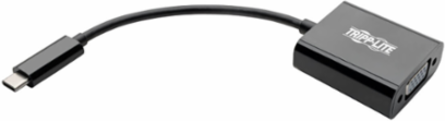

Tripp Lite U444-06N-VB-AM USB-C to VGA Adapter, 6 Inch, 1080p Video, Plug-and-Play, Black
- MPN: U444-06N-VB-AM
- UPC: 037332213327
- PPN: TRP-U444-06N-VB-AM
CAD
$39.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
USB-C to VGA Adapter, 6 Inch, 1080p Video, Plug-and-Play, Black
Features
- Transmits video signals from sources supporting USB DisplayPort Alt Mode
- Delivers HD picture quality at resolutions up to 1920 x 1200 (1080p) @ 60 Hz
- Supports USB 3.1 Gen 1 speeds up to 5 Gbps to ensure fast data transfers
- Reversible USB-C plug connects in either direction for immediate no-fuss use
- Easy installation with plug-and-play operation—no software required
- 3-year limited warranty

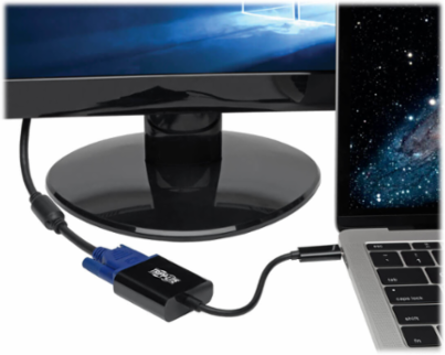

- Connects a VGA Display to Your USB-C or Thunderbolt 3 Device
- Supports USB DisplayPort Alternate Mode for Transmitting Video Signals
- Transmits Crystal-Clear 1080p Video to a VGA Display
- Built-In USB-C Cable Connects in Either Direction
- Ready to Use Right Out of the Package
- 3-Year Warranty and Environmentally Responsible Design
Documentation & Downloads
Specifications
Features & Specifications
| Max Supported Video Resolution | VGA: 1920 X 1200 (1080P) @ 60HZ |
|---|---|
| USB Specification | USB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps) |
| Technology | USB 3.1 (Gen 1); USB; VGA/SVGA; PD Charging |
| Displayport Specification | 1.2 |
|---|---|
| Driver Required | No |
Battery
| Battery Charging (1.2 Port) | No |
|---|
Certifications
| Certifications | Tested to CE, FCC, RoHS, REACH |
|---|
Connections
| Ports | 1 |
|---|---|

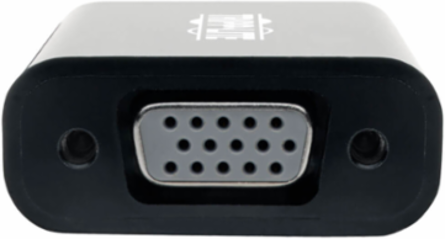

| Side B - Connector 1 | HD15 (FEMALE) |
| Side A - Connector 1 | USB C (MALE) |
|---|---|
| Connector Plating | Nickel |
Physical
| Cable Jacket Rating | VW-1 |
|---|---|
| Material of Construction | PVC & ABS |
| Unit Packaging Type | Box |
| Color | Black |
|---|---|
| Unit Dimensions (hwd / in.) | 0.6 x 1.5 x 1.7 |
| Unit Weight (lbs.) | 0.05 |
Input
| Bus Powered | Yes |
|---|---|
| Product Length (cm.) | 15.24 |
| Product Length (m.) | 0.15 |
| Product Length (in.) | 6 |
|---|---|
| Product Length (ft.) | 0.5 |
Environmental
| Operating Temperature Range | 32 to 113 F (0 to 45 C) |
|---|---|
| BTUs | 2.7 BTU/Hr |
| Operating Humidity Range | 10% to 85% RH, Non-Condensing |
| Storage Temperature Range | 14 to 158 F (-10 to 70 C) |
|---|---|
| Power Consumption (Watts) | 0.8 |
| Storage Humidity Range | 5% to 90% RH, Non-Condensing |
Overview
| UPC Code | 037332213327 |
|---|
Warranty
| Product Warranty Period (Worldwide) | 3-year limited warranty |
|---|
