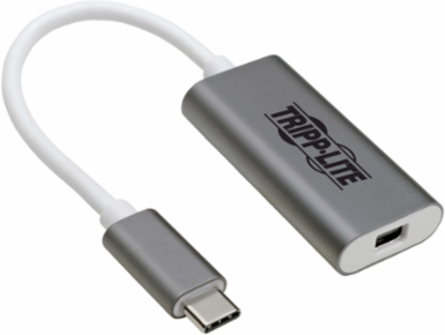

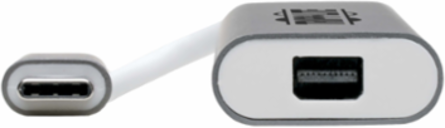

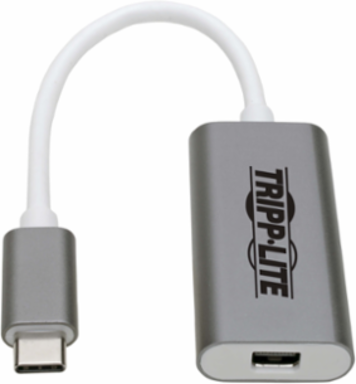

Tripp Lite U444-06N-MDP-AL USB-C to Mini DisplayPort Adapter, 4K 60Hz, Aluminum Housing
- MPN: U444-06N-MDP-AL
- UPC: 037332236128
- PPN: TRP-U444-06N-MDP-AL
CAD
$32.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
USB-C to Mini DisplayPort Adapter, 4K 60Hz, Aluminum Housing
Features
- Transmits audio/video signals from sources supporting USB DisplayPort Alt Mode
- Delivers UHD picture quality at resolutions up to 3840 x 2160 (4K) @ 60 Hz
- Supports USB 3.1 Gen 1 speeds up to 5 Gbps to ensure fast data transfers
- Reversible USB-C plug connects in either direction for immediate no-fuss use
- Plug-and-play operation with no software required for easy, immediate installation
- 3-year limited warranty

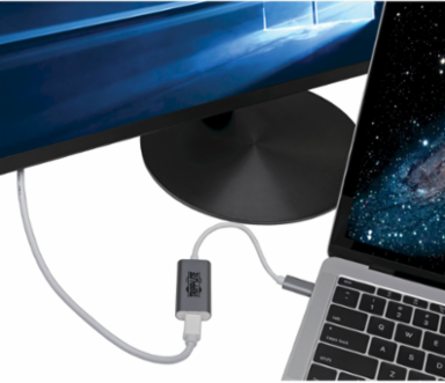

- USB-C to Mini DisplayPort Adapter Connects to Your Laptop’s USB-C or Thunderbolt 3 Port
- Supports USB-C DisplayPort Alternate Mode for Transmitting Audio/Video Signals
- Transmits Crystal-Clear 4K Video and Digital Audio to a Mini DisplayPort Monitor
- Reversible USB-C Connector Attaches in Either Direction
- Ready to Use Right from the Package, So You Can Plug and Play Immediately
Specifications
Features & Specifications
- Max Supported Video Resolution
- MDP: 3840 X 2160 (4K) @ 60HZ
- HDCP Specification
- 2.2
- Driver Required
- No
- Technology
- DisplayPort; USB; USB 3.0 (SuperSpeed); USB 3.1 (Gen 1)
Displayport Specification1.2
USB SpecificationUSB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps)
USB Power Delivery (PD) Charging SupportNo
Battery
- Battery Charging (1.2 Port)
- No
Certifications
- Certifications
- Tested to CE, FCC, RoHS, REACH
Connections
- Ports
- 1
- Side B - Connector 1
- MINI DISPLAYPORT (FEMALE)
- Connector Plating
- Nickel
Side A - Connector 1USB C (MALE)
Side B - Connector 2USB Type-C (FEMALE)
Contact PlatingGold
Physical
- Cable Jacket Rating
- VW-1
- Material of Construction
- PVC and ABS
- Shipping Weight (lbs.)
- 0.00
- Unit Packaging Type
- Box
ColorSilver; White
Shipping Dimensions (hwd / in.)0.00 x 0.00 x 0.00
Unit Dimensions (hwd / in.)0.39 x 2.0 x 0.98
Unit Weight (lbs.)0.07
Input
- Bus Powered
- Yes
- Product Length (cm.)
- 15.2
- Product Length (m.)
- 0.2
Product Length (in.)6
Product Length (ft.)0.5
Environmental
- Operating Temperature Range
- 32 to 113 F (0 to 45 C)
- BTUs
- 4.27 BTU/Hr
- Operating Humidity Range
- 10% to 85% RH, Non-Condensing
Storage Temperature Range14 to 158 F (-10 to 70 C)
Power Consumption (Watts)1.25
Storage Humidity Range5% to 90% RH, Non-Condensing
Overview
- UPC Code
- 037332236128
Special Features
- HDR Support
- Yes
Warranty
- Product Warranty Period (Worldwide)
- 3-year limited warranty
