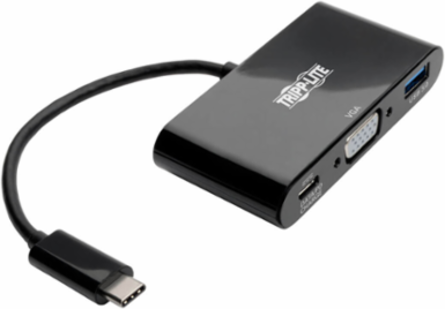

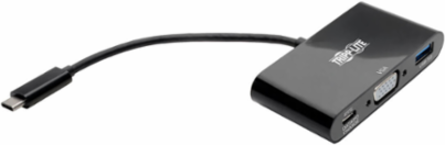

Tripp Lite U444-06N-VUB-C USB-C to VGA Adapter with USB-A Hub, 1080p, PD Charging, Black
- MPN: U444-06N-VUB-C
- UPC: 037332213242
- PPN: TRP-U444-06N-VUB-C
CAD
$34.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
USB-C to VGA Adapter with USB-A Hub, 1080p, PD Charging, Black
Features
- Transmits video signals from sources supporting USB DisplayPort Alt Mode
- Delivers HD picture quality at resolutions up to 1920 x 1080 (1080p) @ 60 Hz
- Supports USB 3.1 Gen 1 speeds up to 5 Gbps to ensure fast data transfers
- Reversible USB-C plug connects in either direction for immediate no-fuss use
- Easy installation with plug-and-play operation—no software required
- 3-year limited warranty
- USB 3.1 Type-C Mini Dock Connects to Your Device’s USB-C or Thunderbolt 3 Port
- Supports USB DisplayPort Alternate Mode for Transmitting Video Signals
- Transmits Crystal-Clear 1080p Video to a VGA Display
- Connects Keyboards, Thumb Drives and Other USB Peripherals
- Charges the Connected Laptop, Smartphone or Other Device
- Built-In USB-C Cable Connects in Either Direction
- Ready to Use Right Out of the Package
- 3-Year Warranty and Environmentally Responsible Design
Documentation & Downloads
Specifications
Features & Specifications
- Max Supported Video Resolution
- VGA: 1920 X 1080 (1080P) @ 60HZ
- Driver Required
- No
- Technology
- USB 3.1 (Gen 1); USB; VGA/SVGA; PD Charging
USB SpecificationUSB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps)
USB Power Delivery (PD) Charging SupportYes
USB Power Delivery (PD) Charging Specification2.0
Battery
- Battery Charging (1.2 Port)
- Yes
Certifications
- Certifications
- Tested to CE, FCC, RoHS, REACH

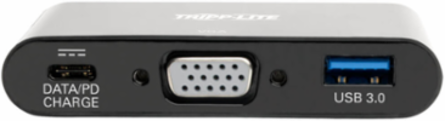

Connections
- Ports
- 3
- Side B - Connector 1
- HD15 (FEMALE)
- Side B - Connector 3
- USB Type-C (FEMALE)
Side A - Connector 1USB C (MALE)
Side B - Connector 2USB 3.0 A (FEMALE)
Connector PlatingNickel
Physical
- Cable Jacket Rating
- VW-1
- Material of Construction
- PVC and ABS
- Shipping Weight (lbs.)
- 0.20
- Unit Packaging Type
- Box
ColorBlack
Shipping Dimensions (hwd / in.)0.90 x 3.70 x 5.50
Unit Dimensions (hwd / in.)0.57 x 3.1 x 1.6
Unit Weight (lbs.)0.09
Input
- Bus Powered
- Yes
- Product Length (cm.)
- 15.24
- Product Length (m.)
- 0.15
Product Length (in.)6
Product Length (ft.)0.5
Output
- Charging Ports / Amps
- 0.9A; 3A
Charging Watts60
Environmental
- Operating Temperature Range
- 32 to 113 F (0 to 45 C)
- BTUs
- 6.1 BTU/Hr
- Operating Humidity Range
- 10% to 85% RH, Non-Condensing
- Power Provided to Connected Device(s)
- 5V 0.9A (4.5W) Output per USB port, Up to 20V 3A (60W) Input (USB-C)
Storage Temperature Range14 to 158 F (-10 to 70 C)
Power Consumption (Watts)1.8
Storage Humidity Range5% to 90% RH, Non-Condensing
Overview
- UPC Code
- 037332213242
Warranty
- Product Warranty Period (Worldwide)
- 3-year limited warranty
