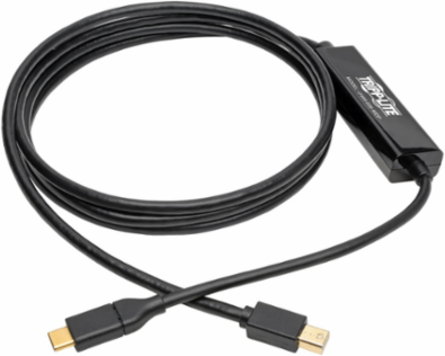

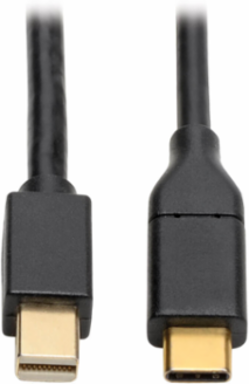

Tripp Lite U444-006-MDP USB-C to Mini DisplayPort Adapter Cable, 6 ft, 4K 60Hz, Black
- MPN: U444-006-MDP
- UPC: 037332193841
- PPN: TRP-U444-006-MDP
CAD
$34.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

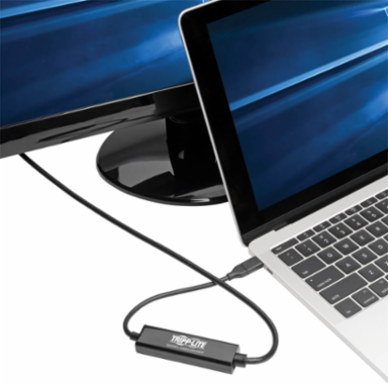

Connects your existing Mini DisplayPort (mDP) monitor or projector to the USB-C or Thunderbolt 3 port on your tablet, laptop, notebook, smartphone or PC. Saves you the clutter and expense of additional cables, adapters and displays.
Features
- Supports USB DisplayPort Alternate Mode for transmitting audio/video
- Supports UHD video resolutions up to 4K @ 60 Hz
- Supports USB 3.1 Gen 1 data transfer rates up to 5 Gbps
- Reversible USB-C plug connects in either direction
- Plug-and-play operation with no software or drivers required
- 3-year limited warranty
- Connects a Mini DisplayPort Display to Your USB-C or Thunderbolt 3 Device
- Crystal-Clear 4K Video and Digital Audio
- Reversible USB-C Connector
- Premium Construction
- Ready for Instant Use
Documentation & Downloads
Specifications
Features & Specifications
- Max Supported Video Resolution
- MDP: 3840 X 2160 (4K) @ 60HZ
- HDCP Specification
- 1.3
- Driver Required
- No
Displayport Specification1.2
USB SpecificationUSB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps)
TechnologyUSB 3.1 (Gen 1); USB; DisplayPort
Battery
- Battery Charging (1.2 Port)
- No
Certifications
- Certifications
- Tested to CE, FCC, RoHS, REACH
Connections

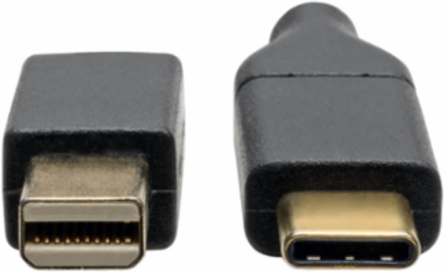

- Side A - Connector 1
- USB C (MALE)
- Connector Plating
- Gold

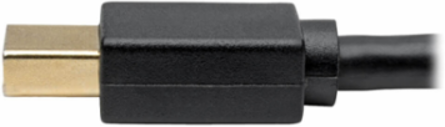

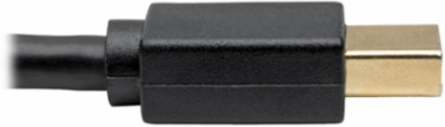

Side B - Connector 1MINI DISPLAYPORT (MALE)
Physical
- Cable Jacket Rating
- VW-1
- Material of Construction
- PVC and ABS
- Shipping Weight (lbs.)
- 0.19
- Unit Weight (lbs.)
- 0.18
ColorBlack
Shipping Dimensions (hwd / in.)9.00 x 7.00 x 0.50
Unit Packaging TypePolybag
Input
- Cable Length (ft.)
- 6
- Product Length (in.)
- 72
- Product Length (ft.)
- 6
Bus PoweredYes
Product Length (cm.)182.88
Product Length (m.)1.83
Environmental
- Operating Temperature Range
- 32 to 113 F (0 to 45 C)
- BTUs
- 2.1 BTU/Hr
- Operating Humidity Range
- 10% to 85% RH, non-condensing
Storage Temperature Range14 to 158 F (-10 to 70 C)
Power Consumption (Watts)0.6
Storage Humidity Range5% to 90% RH, non-condensing
Overview
- UPC Code
- 037332193841
Special Features
- HDR Support
- Yes
Warranty
- Product Warranty Period (Worldwide)
- 3-year limited warranty
