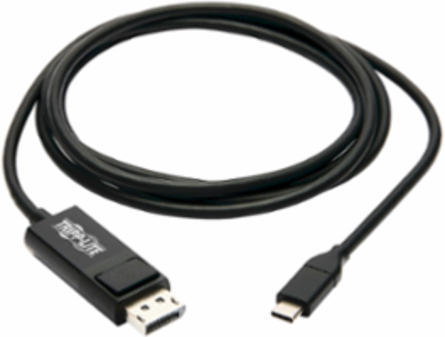

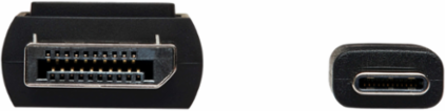

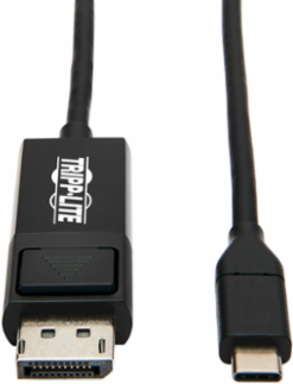

Tripp Lite U444-006-DP-BE USB-C to DisplayPort Adapter Cable, 4K Resolution, 6 ft Length
- MPN: U444-006-DP-BE
- UPC: 037332236685
- PPN: TRP-U444-006-DP-BE
CAD
$60.67
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
USB-C to DisplayPort Adapter Cable, 4K Resolution, 6 ft Length
Features
- Converts audio/video signals from sources supporting USB DisplayPort Alt Mode
- Delivers Ultra HD picture quality at resolutions up to 3840 x 2160 (4K) @ 60 Hz
- Reversible USB-C plug connects in either direction for immediate no-fuss use
- Locking DisplayPort connector prevents cable from coming loose accidentally
- Dual male plugs connect directly to devices—no other adapter or cable is needed
- Note: This cable is uni-directional. Will only work from a USB-C port to DisplayPort
- 3-year limited warranty
- USB-C to DisplayPort Adapter Connects to Your Computer’s USB-C or Thunderbolt 3 Port
- Supports USB-C DisplayPort Alternate Mode for Converting Audio/Video Signals
- Enjoy the Clarity of True 4K Video with Audio and 4:4:4 Color
- Locking DP Connector Helps Prevent Accidental Disconnection and Expensive Downtime
- Reversible USB-C Connector Attaches in Either Direction
- Ready to Use Right from the Package, So You Can Plug and Play Immediately
Documentation & Downloads
Specifications
Features & Specifications
- Max Supported Video Resolution
- DP: 3840 X 2160 (4K) @ 60HZ
- HDCP Specification
- 2.2
- Driver Required
- No
Displayport Specification1.2
USB SpecificationUSB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps)
TechnologyDisplayPort; USB 3.1 (Gen 1); USB
Battery
- Battery Charging (1.2 Port)
- No
Certifications
- Certifications
- CE, FCC, ROHS, REACH
Connections
- Side A - Connector 1
- USB C (MALE)
- Connector Plating
- Nickel
Side B - Connector 1DISPLAYPORT (MALE)
Contact PlatingGold
Physical
- Cable Jacket Rating
- VW-1
- Color
- Black
- Shipping Dimensions (hwd / in.)
- 9.00 x 7.00 x 0.50
- Unit Packaging Type
- Polybag
Cable Outer Diameter (OD)4.5mm
Material of ConstructionPVC and ABS
Shipping Weight (lbs.)0.24
Unit Weight (lbs.)0.23
Input
- Cable Length (ft.)
- 6
Bus PoweredYes
Environmental
- Operating Temperature Range
- 32 to 113 F (0 to 45 C)
- BTUs
- 2.1 BTU/Hr
- Operating Humidity Range
- 10% to 85% RH, non-condensing
Storage Temperature Range14 to 158 F (-10 to 70 C)
Power Consumption (Watts)0.6
Storage Humidity Range5% to 90% RH, non-condensing
Overview
- UPC Code
- 037332236685
Special Features
- HDR Support
- Yes
Warranty
- Product Warranty Period (Worldwide)
- 3-year limited warranty
