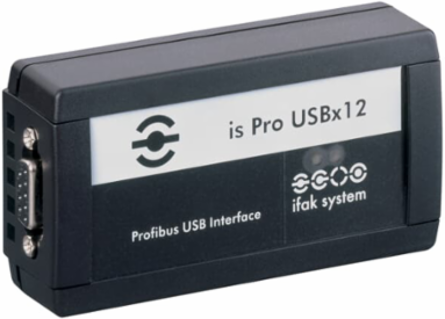

ABB 1SAJ924013R0001 USB Interface for Profibus Networks
- MPN: 1SAJ924013R0001
- UPC: 804325361286
- PPN: ABB-1SAJ924013R0001
- UNSPSC: 32151802
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The UTP22-FBP allows to configure and monitor multiple UMC100.3 devices connected to a PROFIBUS network from a service laptop via FIM software.
Specifications
Dimensions
| Product Net Width | 54 mm |
|---|---|
| Product Net Height | 0.03 mm |
| Product Net Depth / Length | 105 mm |
|---|---|
| Product Net Weight | 261 g |
Technical
| Mounting on DIN Rail | No |
|---|---|
| Recommended Screw Driver | Pozidriv 1 |
| Suitable For | PDP32.0FIM UMC EDITION |
| Terminal Type | Screw Terminals |
| Power Loss | Approximately 1.3 W |
|---|---|
| Standards | EN 55022EN 55024IEC/EN 61326-1 |
| Suitable for Product Class | Universal Motor Controllers Accessories |
Classifications
| eClass | V11.0 : 27242608 |
|---|---|
| ETIM 9 | EC001604 - Fieldbus, decentr. periphery - communication module |
| Object Classification Code | K |
| E-Number (Sweden) | 4517293 |
|---|---|
| IDEA Granular Category Code (IGCC) | 3594 >> Interface module |
Environmental
| Degree of Protection | IP20 |
|---|---|
| WEEE B2C / B2B | Business To Business |
| RoHS Information | 1SVD981036-0001 |
|---|---|
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
Ordering
| Minimum Order Quantity | 1 piece |
|---|---|
| Product Main Type | UTP22-FBP.0 |
| Customs Tariff Number | 85176200 |
|---|
