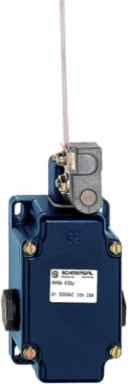

Schmersal 101060584 Position Switch UV6H 433Y, 434 mm Height, IP65, Metal Enclosure
- MPN: 101060584
- PPN: SCM-101060584
CAD
$572.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Position Switch UV6H 433Y, 434 mm Height, IP65, Metal Enclosure
Features
- Metal enclosure
- 3 Contacts
- 62 mm x 105 mm x 50 mm ( basic component)
- Switching points and contact function adjustable
- 3 cable entries M 20 x 1.5
- Actuator head can be repositioned in steps 4 x 90°
- Continuous adjustment of lever position 360°
- Lever can be transposed by 180°
- Spring-steel leaf spring
Documentation & Downloads
Specifications
Electrical data
- Thermal test current
- 16 A
- Switching principle
- Slow action
Switching elementOpener (NC)
Material of the contacts, electricalSilver
Note
- Note (General)
- Type of contact and switching points can be factory set to order.

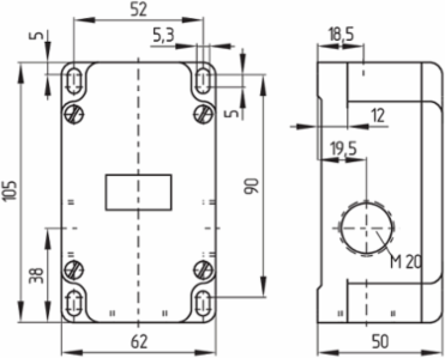

Mechanical data - Dimensions
- Length x Width x Height
- Leaf spring thickness: 0.8 mm
- Width of sensor
- 62 mm
Length of sensor50 mm
Height of sensor434 mm
Ambient conditions - Insulation values
- Rated insulation voltage U
- 500 V
General data - Features
- Number of normally closed (NC)
- 3
General data
- Standards
- EN IEC 60947-5-1
- Enclosure material
- Light alloy die-casting
- Lever material
- Spring-steel
Working principlemechanical
Enclosure coating materialpainted
Gross weight635 g
Ambient conditions
- Degree of protection
- IP65
Ambient temperature-20 ... +60 °C
Mechanical data - Connection technique
- Termination
- Screw terminals M20 x 1.5
- Cable section, maximum
- 2.5 mm²
- Wire cross-section
- 13 AWG
Cable section, minimum1.5 mm²
Note (Cable section)All indications including the conductor ferrules.
Mechanical data
- Actuating element
- Swivel lever
- Actuating angle, from left of switch axis
- 30 °
- Contact opening
- 2 x 1.5 mm
- Actuating speed, maximum
- 3 m/s
Mechanical life, minimum10,000,000 Operations
Actuating angle, from right of switch axis30 °
Actuating speed, minimum1 mm/min
Note (Actuating speed)Actuating speed with vertical actuating angle to switch axis
