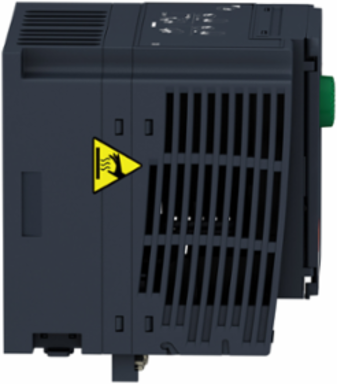

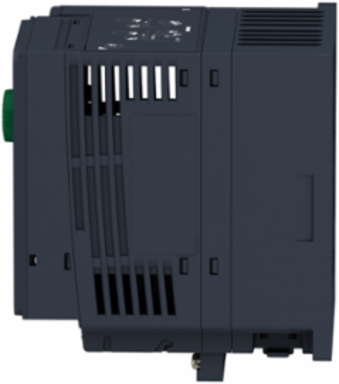

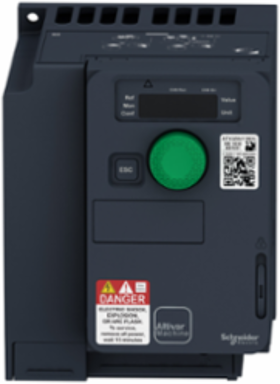

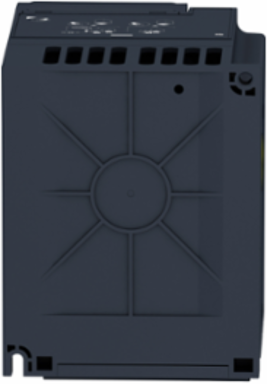

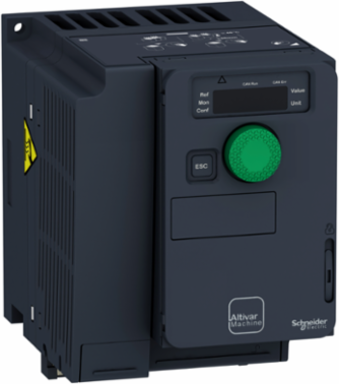

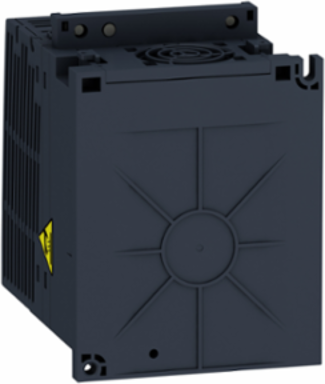

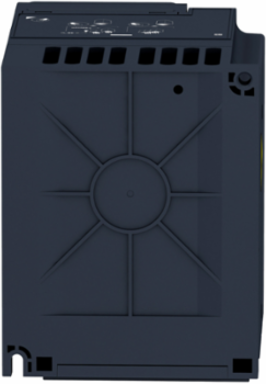

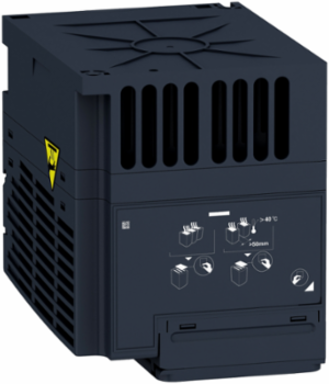

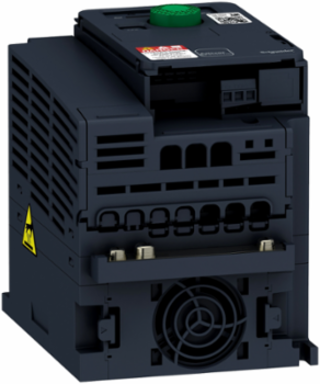

Schneider Electric ATV320U15M3C Variable Speed Drive 1.5kW 200-240V 3 Phases Compact
- MPN: ATV320U15M3C
- PPN: SCH-ATV320U15M3C
CAD
$497.18
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Altivar Machine ATV320 range is an offer of variable speed drives designed for Original Equipment Manufacturers (OEMs). Its compact form factor allows vertical stacking of drives inside machine frames. It works at a rated power up to 1.5kW / 2hp and a rated voltage from 200V to 240V AC. Its robust design with IEC 60721-3-3 class 3C3 coated printed circuit boards allows to extend machine availability in harsh environmental conditions, for example at ambient temperatures of up to 60°C without the need of additional cooling. It incorporates functions suitable for the most common applications, including torque and speed accuracy at very low speed, high dynamic performance with flux vector control without sensor and extended frequency range for high-speed motors. It also incorporates parallel connection of motors and special drives using the voltage/frequency ratio and static speed accuracy and energy saving for open-loop synchronous motors. It weighs 1.4kg and its dimensions are 105mm wide, 143mm high, 138mm deep. The drive software includes 5 safety functions that help machines meet safety requirements, whether or not they are used in conjunction with a Preventa safety module. These safety functions are configured using SoMove software. Altivar Machine ATV320 was designed for Original Equipment Manufacturers (OEMs) that meets simple and advanced application requirements covered for packaging, material handling, textile, material working, mechanical actuators and hoisting. It conforms to IEC, UL, TUV, KC and other international standards. Mounting accessories and external options (braking resistors, line chokes, motor chokes, additional EMC filters) are available with Altivar Machine ATV320 drives. The type of external accessories and options depends on the drive rating. The product is delivered in one package. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. It is fully integrated inside Schneider Electric’s EcoStruxure Machine through DTM. It is possible to configure, control, and diagnose ATV320 drives directly in SoMachine and SoMove software by means of the same software brick (DTM). It is eco-friendly and complies with directives such as RoHS, WEEE, etc.relating to environmental protection.
Features
- Operating on 200-240V 3-phase power, this Altivar Machine ATV320 variable speed drive (VFD) delivers exceptional open-loop and closed-loop control for both asynchronous and synchronous motors. This precise torque management guarantees smooth acceleration for your conveyors, packaging equipment, and material handling systems, actively reducing mechanical shock and drastically lowering your long-term maintenance costs.
- Engineered specifically with a space-saving, compact footprint (the "C" in M3C), this AC drive is optimized for installation into shallow or densely packed industrial electrical enclosures. This intelligent design allows panel builders to easily retrofit legacy machinery with modern automation technology without the frustrating expense and downtime of a complete cabinet redesign.
- Out of the box, this drive features embedded SIL3-rated safety protocols—including Safe Torque Off (STO)—to instantly cut motor power and prevent unexpected, dangerous mechanical startups. This built-in, fail-safe architecture eliminates the need for bulky external safety relays, simplifying your panel wiring while ensuring your facility easily passes rigorous IEC 61508 and ISO 13849-1 workplace safety compliance audits.
- Equipped with standard Modbus Serial and CANopen communication ports, this variable frequency drive integrates effortlessly into your established industrial control architecture. This native network capability allows automation engineers to rapidly commission the drive, monitor real-time diagnostics, and easily scale up to advanced Ethernet-based protocols using simple add-on communication modules.
Documentation & Downloads
Specifications
Additional
- Power
- 1.5 kW heavy duty
- Phases
- 3
- Apparent Power
- 3.9 kVA at 240 V heavy duty
- Switching Frequency
- 2-16 kHz adjustable, nominal 4 kHz
- Transient Overtorque
- 170-200 % of nominal motor torque
- Acceleration And Deceleration Ramps
- linear, U, S, CUS, ramp switching, acceleration/deceleration ramp adaptation, acceleration/deceleration automatic stop with DC injection
- Maximum Deflection Under Vibratory Load (During Operation)
- 1.5 mm at 2-13 Hz
- Protection Type
- input phase breaks, overcurrent, overheating, short-circuit, thermal protection
- Operating Temperature Range
- -10 to 50 °C without derating, up to 60 °C with derating
- Brake Chopper Integrated
- true
- Nominal Switching Frequency
- 4 kHz
- Nominal Output Current
- 8.0 A
- Braking To Standstill
- by DC injection
- Maximum Switching Current
- relay outputs 3 A resistive 250 V AC / 30 V DC; 7 ms inductive 2 A 250 V AC / 30 V DC; 5 A resistive certain relays
- Weight
- 1.4 kg (3.09 lb)
- Format
- compact
- IP Degree of Protection
- IP20
- Overvoltage Category
- III
- Storage Temperature
- -25 to 70 °C
- Environmental Disclosure
- ENVPEP1512003EN
- Communication Protocols
- Modbus serial, CANopen
- Discrete Inputs
- 7 inputs, 24 V DC
- Analogue Inputs
- 3 inputs (0-10 V DC, ±10 V DC, 0-20 mA)
- Relay Outputs
- Configurable relay logic, 1 NO, 1 NC, 3 A resistive 250 V AC / 30 V DC, 5 A resistive (certain relays), 2 A inductive 250 V AC / 30 V DC
- Discrete Input Type
- STO safe torque off, 24 V DC 1.5 kΩ; logic inputs 24 V DC 30 V; one input programmable as pulse input 0-30 kHz
- Minimum Switching Current
- relay outputs 5 mA 24 V DC
- Country of Origin
- Indonesia
Voltage200-240 V AC -15...10 %
Rated Output Current8.0 A
Maximum Output Frequency0.599 kHz
Line Current11.1 A at 200 V heavy duty, 9.3 A at 240 V heavy duty
Speed Accuracy+/- 10 % of nominal slip 0.2 Tn to Tn
Maximum Acceleration Under Vibrational Stress (During Operation)10 m/s² at 13-200 Hz
Maximum Acceleration Under Shock Impact (During Operation)150 m/s² at 11 ms
Safety FunctionsSafely Limited Speed (SLS), Safe Stop 1 (SS1), Safe Torque Off (STO)
Base Load Current At High Overload4 A
Motor Slip Compensationautomatic whatever the load; adjustable 0...300 %; not available in voltage/frequency ratio (2 or 5 points)
Regulation Loopadjustable PID regulator
4 Quadrant Operation Possibletrue
Discrete Input Logicpositive logic (source), negative logic (sink)

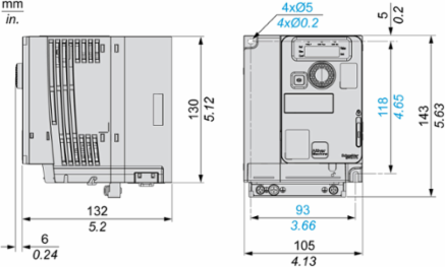

Dimensions (W x H x D)105 x 143 x 138 mm (4.13 x 5.63 x 5.43 in)
Mounting Modewall mount, vertical +/- 10°
MaterialMercury Free
Standards ComplianceIEC 61800-5-1, CE, ATEX, UL, CSA, EAC, RCM, KC, NOM, GOST, TUV
Environmental Class3C3 and 3S2 (IEC 60721-3-3)
Pollution Degree2
Circularity ProfileENVEOLI1512003EN
Optional Communication ModulesCANopen, EtherCAT, Profibus DP V1, PROFINET, Ethernet Powerlink, EtherNet/IP, DeviceNet
Discrete Outputs3 open collector outputs, 30 V DC, 100 mA
Analogue Output1 configurable (0-20 mA or 0-10 V DC)
Method Of Accessslave CANopen
Discrete Output Typeopen collector DQ+ 0-1 kHz 30 V DC 100 mA, open collector DQ- 0-1 kHz 30 V DC 100 mA
Communication Port ProtocolModbus serial, CANopen
