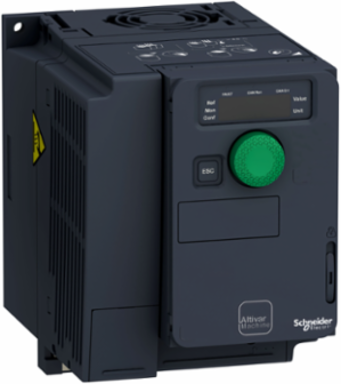

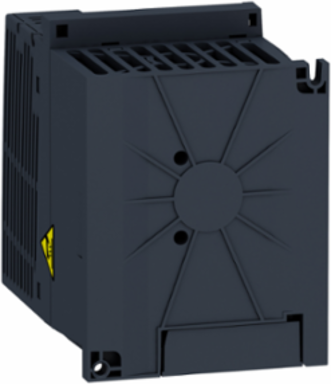

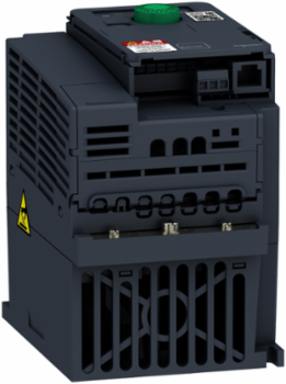

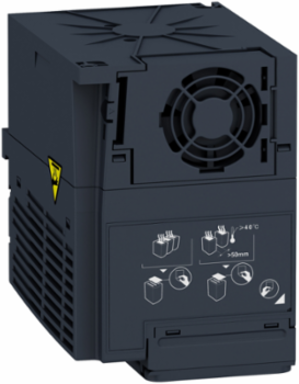

Schneider Electric ATV320U07S6C Variable Speed Drive, 0.75kW, 525-600V, 1.27kg, Compact
Schneider Electric ATV320U07S6C Variable Speed Drive, 0.75kW, 525-600V, 1.27kg, Compact
- MPN: ATV320U07S6C
- PPN: SCH-ATV320U07S6C
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$705.09/ EA
Description

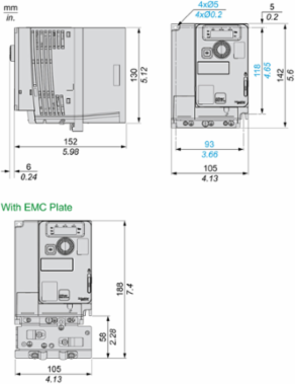

Altivar Machine ATV320 range is an offer of variable speed drives designed for Original Equipment Manufacturers (OEMs). Its compact form factor allows vertical stacking of drives inside machine frames. It works at a rated power up to 0.75kW / 1hp and a rated voltage from 525V to 600V AC. Its robust design with IEC 60721-3-3 class 3C3 coated printed circuit boards allows to extend machine availability in harsh environmental conditions, for example at ambient temperatures of up to 60°C without the need of additional cooling. It incorporates functions suitable for the most common applications, including torque and speed accuracy at very low speed, high dynamic performance with flux vector control without sensor and extended frequency range for high-speed motors. It also incorporates parallel connection of motors and special drives using the voltage/frequency ratio and static speed accuracy and energy saving for open-loop synchronous motors. It weighs 1.27kg and its dimensions are 105mm wide, 142mm high, 158mm deep. The drive software includes 5 safety functions that help machines meet safety requirements, whether or not they are used in conjunction with a Preventa safety module. These safety functions are configured using SoMove software. Altivar Machine ATV320 was designed for Original Equipment Manufacturers (OEMs) that meets simple and advanced application requirements covered for packaging, material handling, textile, material working, mechanical actuators and hoisting. It conforms to IEC, UL, TUV, KC and other international standards. Mounting accessories and external options (braking resistors, line chokes, motor chokes, additional EMC filters) are available with Altivar Machine ATV320 drives. The type of external accessories and options depends on the drive rating. The product is delivered in three packages. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. It is fully integrated inside Schneider Electric’s EcoStruxure Machine through DTM. It is possible to configure, control, and diagnose ATV320 drives directly in SoMachine and SoMove software by means of the same software brick (DTM). It is eco-friendly and complies with directives such as RoHS, WEEE, etc.relating to environmental protection.
Specifications
Complementary
- Prospective Line Isc
- 5 kA
- Power Dissipation In W
- fan 34.0 W 525 V 4 kHz
- Analogue Output Type
- software-configurable current AQ1 0...20 mA 800 Ohm 10 bits || software-configurable voltage AQ1 0...10 V DC 470 Ohm 10 bits
- Asynchronous Motor Control Profile
- voltage/frequency ratio, 5 points || flux vector control without sensor, standard || voltage/frequency ratio - Energy Saving, quadratic U/f || flux vector control without sensor - Energy Saving || voltage/frequency ratio, 2 points
- 4 Quadrant Operation Possible
- true
- Apparent Power
- 1.5 kVA 600 V heavy duty)
- With Safety Function Safe Direction (Sdi)
- false
- Switching Frequency
- 2...16 kHz adjustable || 4...16 kHz with derating factor
- Motor Slip Compensation
- automatic whatever the load || adjustable 0...300 % || not available in voltage/frequency ratio (2 or 5 points)
- With Safety Function Safe Position (Sp)
- false
- With Safety Function Safely Limited Position (Slp)
- false
- Discrete Input Number
- 7
- With Safety Function Safe Stop 1 (Ss1)
- true
- Depth
- 158.0 mm
- Maximum Output Frequency
- 0.599 kHz
- Height
- 142.0 mm
- Maximum Output Voltage
- 600 V
- With Safety Function Safe Speed Monitor (Ssm)
- false
- With Safety Function Safe Torque Off (Sto)
- true
- Minimum Switching Current
- relay output R1A, R1B, R1C, R2A, R2C 5 mA 24 V DC
- With Safety Function Safe Programmable Logic
- false
- Nominal Switching Frequency
- 4 kHz
- Discrete Input Type
- STO safe torque off, 24 V DC1.5 kOhm || DI1...DI6 logic inputs, 24 V DC 30 V) || DI5 programmable as pulse input 0-30 kHz, 24 V DC 30 V)
- With Safety Function Safely Limited Speed (Sls)
- true
Network Frequency50...60 Hz
Line Current1.5 A 525 V heavy duty) || 1.4 A 600 V heavy duty)
Discrete Output Typeopen collector DQ+ 0-1 kHz 30 V DC 100 mA || open collector DQ- 0-1 kHz 30 V DC 100 mA
Maximum Switching Currentrelay output R1A, R1B, R1C resistive, cos phi = 1 3 A 250 V AC || relay output R1A, R1B, R1C resistive, cos phi = 1 3 A 30 V DC || relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 30 V DC || relay output R2A, R2C resistive, cos phi = 1 5 A 250 V AC || relay output R2A, R2C resistive, cos phi = 1 5 A 30 V DC
Relative Symmetric Network Frequency Tolerance5 %
Net Weight1.27 kg
Relay Output Typeconfigurable relay logic R1A 1 NO 100000 cycles || configurable relay logic R1B 1 NC 100000 cycles || configurable relay logic R1C || configurable relay logic R2A 1 NO 100000 cycles || configurable relay logic R2C
Analogue Input Number3
Discrete Output Number3
Method Of Accessslave CANopen
With Safety Function Safe Operating Stop (Sos)false
With Sft Fct Safe Stop 2 (Ss2)false
Width105.0 mm
Analogue Input TypeAI1 voltage 0...10 V DC 30 kOhm 10 bits || AI2 bipolar differential voltage +/- 10 V DC 30 kOhm 10 bits || AI3 current 0...20 mA (or 4-20 mA, x-20 mA, 20-x mA or other patterns by configuration) 250 Ohm 10 bits
With Safety Function Safe Brake Management (Sbc/Sbt)false
Acceleration And Deceleration Rampslinear || U || S || CUS || ramp switching || acceleration/deceleration ramp adaptation || acceleration/deceleration automatic stop with DC injection
Base Load Current At High Overload27.7 A
Transient Overtorque170-200 % of nominal motor torque
Analogue Output Number1
Discrete Input Logicpositive logic (source) || negative logic (sink)
Brake Chopper Integratedtrue
Braking To Standstillby DC injection
Protection Typeinput phase breaks drive || overcurrent between output phases and earth drive || overheating protection drive || short-circuit between motor phases drive || thermal protection drive
Synchronous Motor Control Profilevector control without sensor
Offer Sustainability
- Mercury Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Upgradeability
- Upgraded components available
- Environmental Disclosure
- ENVPEP1512003EN
- Circularity Profile
- ENVEOLI1512003EN
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationX
Rohs Exemption InformationYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Specifications
- Variant
- standard version
- Product Or Component Type
- variable speed drive
- Communication Port Protocol
- Modbus serial || CANopen
- Product Specific Application
- complex machines
- Range Of Product
- Altivar Machine ATV320
- [Us] Rated Supply Voltage
- 525...600 V - 15...10 %
- Emc Filter
- without EMC filter
Format Of The Drivecompact
Ip Degree Of ProtectionIP20
Nominal Output Current1.7 A
Option Cardcommunication module, CANopen || communication module, EtherCAT || communication module, Profibus DP V1 || communication module, PROFINET || communication module, Ethernet Powerlink || communication module, EtherNet/IP || communication module, DeviceNet
Motor Power Kw0.75 kW heavy duty
Mounting Modewall mount
Environment
- Product Certifications
- CE || ATEX || NOM || GOST || EAC || RCM || KC
- Standards
- IEC 61800-5-1
- Permitted Relative Humidity (During Operation)
- class 3K5 according to EN 60721-3
- Environmental Class (During Operation)
- class 3C3 according to IEC 60721-3-3 || class 3S2 according to IEC 60721-3-3
- Pollution Degree
- 2
- Ambient Air Temperature For Operation
- -10-50 °C without derating || 50-60 °C with derating factor
- Marking
- CE || ATEX || UL || CSA || EAC || RCM
- Ambient Air Temperature For Storage
- -25-70 °C
- Ambient Air Transport Temperature
- -25-70 °C
Maximum Deflection Under Vibratory Load (During Operation)1.5 mm at 2...13 Hz
Regulation Loopadjustable PID regulator
Overvoltage CategoryIII
Maximum Acceleration Under Shock Impact (During Operation)150 m/s² at 11 ms
Electromagnetic Compatibilityelectrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge immunity test level 3 IEC 61000-4-5 || conducted radio-frequency immunity test level 3 IEC 61000-4-6 || voltage dips and interruptions immunity test IEC 61000-4-11
Volume Of Cooling Air18.0 m3/h
Maximum Acceleration Under Vibrational Stress (During Operation)10 m/s² at 13...200 Hz
Operating Positionvertical +/- 10 degree
Speed Accuracy+/- 10 % of nominal slip 0.2 Tn to Tn
