Schneider Electric GV3P13 TeSys Deca Motor Circuit Breaker 3P, 9-13A, Thermal-Magnetic, 100kA Icu

MPN: GV3P13
PPN: SCH-GV3P13

$252.77

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

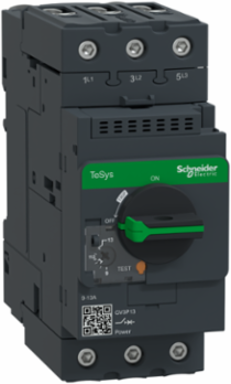

GV3P13 is a TeSys GV motor circuit breaker from Schneider Electric. It ensures thermal-magnetic protection for motors 5.5kW@400V and high breaking capacity Icu 100kA. Start-stop control by rotary knob guaranteed for 50 000 cycles AC-3 415V. GV3P13 is a TeSys GV motor circuit breaker from Schneider Electric designed for motor applications 5.5kW@400V. It fulfills a thermal-magnetic protection with a thermal setting range 9-13A, magnetic tripping at 14xIn and high breaking capacity Icu 100kA@400V. Start-stop control by rotary knob guaranteed for 50 000 cycles AC-3 415V. Complete motor protection in a single device , short-circuit, overload, disconnection. Associated with a TeSys contactor, it ensures a complete type 1 or type 2 Motor Starter solution. Compact, 55mm wide, for DIN-rail and panel mounting. Manual control with rotary knob for Start / Stop, padlockable. Possible mounting of auxiliary contacts front or side mounted (GVAE, GVAN, GVAD) for status and tripping signaling. For large industrial or building LV distribution networks thanks to a high 100kA breaking capacity. Power connections with EverLink BTR screw connectors providing constant tightening pressure. Can be associated with undervoltage or shunt tripping units (GVAU, GVAS) and power distribution busbars (GV3G).

Features

Specifically designed for motor control and protection, this 3-pole manual starter integrates thermal-magnetic protection in a single, compact unit. It is optimized for 3-phase motors with a full-load current (FLC) range of 9 to 13 Amps, providing a robust solution for medium-to-large machinery in manufacturing and industrial automation environments.
Featuring Schneider s innovative EverLink power terminal blocks, this unit maintains a constant pressure on the cables even if the copper creeps or vibrates. This eliminates the need for periodic re-tightening of terminals, significantly reducing the risk of overheating or electrical fires at the connection point and ensuring long-term operational reliability.
The dual-action trip mechanism provides a precise thermal element for protection against motor stalling and overheating, alongside a magnetic element that instantly trips during a high-current short circuit. This "all-in-one" protection reduces the number of components required in your control panel, saving space and simplifying your circuit design.
The ergonomic rotary handle provides clear visual indication of the "ON," "OFF," and "TRIP" positions for instant diagnostic status. The handle is padlockable in the "OFF" position, ensuring full compliance with LOTO (Lock-Out Tag-Out) safety protocols to protect technicians during machine servicing.
At a standardized 55mm width, the GV3P13 offers high-performance protection in a footprint usually reserved for lower-capacity devices. It snaps easily onto a 35mm DIN rail or can be screw-mounted, offering maximum flexibility for panel builders looking to densify their motor control centers without sacrificing cooling airflow.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, France, United Kingdom, Mexico, United States

Depth	136 mm

Physical Attributes

Color	dark grey

Complementary Attributes

Rated Current	13 A
Maximum Operating Rate	25 cyc/h

Line Rated Current	13 A
Rated Duty	uninterrupted IEC 60947-4-1

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB, SC
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Fixing Mode	35 mm symmetrical DIN rail clipped, panel screwed with 3 x M4 screws)
Range Of Product	TeSys GV3, TeSys Deca
Certificate Agency	CCC, UL, CSA, EAC, ATEX, LROS (Lloyds register of shipping), BV, ABS, DNV-GL, UKCA
Carbon Footprint Of The Distribution Phase [A4]	0.28544635420228376, 0.3 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.1 kg CO2 eq., 0.1069344392964876
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	21 kg CO2 eq., 21.070000000000004
Local Publishable Date	2026-07-07
Stocking Flag	N
Device Type	LV equipment - Low voltage circuit breaker
Traceability	No
Average Life Duration	15 year(s)
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	3
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Control Type	rotary handle
Device Short Name	GV3P
Fire Resistance	960 °C IEC 60695-2-11
Mechanical Durability	50000 cycles
Motor Power Kw	5.5-5.5 kW 400/415 V AC 50/60 Hz7.5-7.5 kW 500 V AC 50/60 Hz11-11 kW 690 V AC 50/60 Hz
Network Type	AC
Phase Failure Sensitivity	yes IEC 60947-4-1
Product Availability	Stock - Normally stocked in distribution facility
Product Or Component Type	motor circuit breaker
Returnability	Yes
Suitability For Isolation	yes IEC 60947-1
Thermal Protection Adjustment Range	9-13 A IEC 60947-2
Total Lifecycle Carbon Footprint	30 kg CO2 eq.
Utilisation Category	category A IEC 60947-2AC-3 IEC 60947-4-1
Pep Code	ENVPEP0609001EN
Pep Verification Date	2025-08-05
Psr Version	PSR-0005-ed2-2016 03 29
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	20
Energy Model - Manufacturing [A1-a3]	Electricity Mix; Production mix; Low voltage; FR
Energy Model - Use [B6]	Electricity Mix; Production mix; Low voltage; FR
Recyclability Potential In %	58
Width Nominal	55 mm
[Ue] Rated Operational Voltage	690 V AC 50/60 Hz IEC 60947-2
[Uimp] Rated Impulse Withstand Voltage	6 kV IEC 60947-2
Package Weight(Lbs)	977.000 g
Warranty (In Months)	18

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market Segmentation	Commercial, Industrial
Mounting Position	horizontal, vertical
Rated Current 1	13 A
[Ics] Rated Service Short-circuit Breaking Capacity	100 % 230/240 V AC 50/60 Hz IEC 60947-2, 100 % 400/415 V AC 50/60 Hz IEC 60947-2, 100 % 440 V AC 50/60 Hz IEC 60947-250 % 500 V AC 50/60 Hz IEC 60947-2, 50 % 690 V AC 50/60 Hz IEC 60947-2
Carbon Footprint Of The End-of-life Phase [C1 To C4]	2.5759934932242534, 3 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	5 kg CO2 eq., 5.484113459283891
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Serviceability	No
Field Service Division	PPIBS
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI060901
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	1929
China Rohs In Scope	No
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Compatibility Code	GV3P
Device Application	motor protection
Electrical Durability	50000 cycles AC-3 415 V In
Magnetic Tripping Current	182-182 A
Mechanical Robustness	shocks 15 Gn for 11 ms contactor openshocks 30 Gn for 11 ms contactor closedvibrations 4 Gn, 5...300 Hz
Network Frequency	50/60 Hz IEC 60947-2
Number Of Poles	3P
Power Dissipation Per Pole	8 W
Product Name	TeSys GV3
Range	TeSys Deca
Software Version	v5.9.4
Sustainable Packaging	Yes
Tightening Torque	5 N.m screw clamp terminal
Trip Unit Technology	thermal-magnetic
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version	2022-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	Protect during 20 years the installation against overloads and short-circuits in circuit with 690V and 65A. This protection is ensured in accordance with the following parameters:& 10- Number of poles 3P& 10- Rated breaking capacity 6KA
Functional-unit Unit	unit
Energy Consumption On Product Lifetime In Kwh	315.36
Energy Model - Installation [A5]	Electricity Mix; Production mix; Low voltage; FR
Energy Model - End Of Life [C1-c4]	Electricity Mix; Production mix; Low voltage; FR
Height Nominal	132 mm
[Ith] Conventional Free Air Thermal Current	13 A IEC 60947-2
[Ui] Rated Insulation Voltage	690 V AC 50/60 Hz IEC 60947-2
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8536200020

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Take Back	No
Mercury Free	Yes
Ambient Air Temperature For Operation	-20-60 °C-20-60 °C
Climatic Withstand	IACS E10
Eu Rohs Directive	Compliant By Exemption
Operating Altitude	9842.52 ft (3000 m)
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP0609001EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review

Ambient Air Temperature For Storage	-40-80 °C, -40-80 °C
Recycled Metal Content At Cr Level	0 %
Carbon Footprint	29.52248774600692
Circularity Profile	ENVEOLI060901
Environmental Disclosure	ENVPEP0609001EN
Ip Degree Of Protection	IP20 IEC 60529
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
