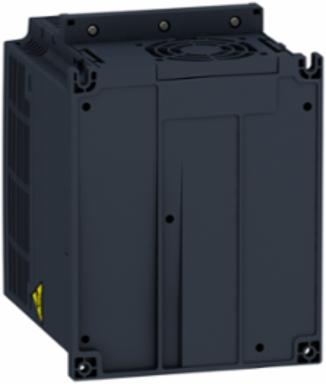

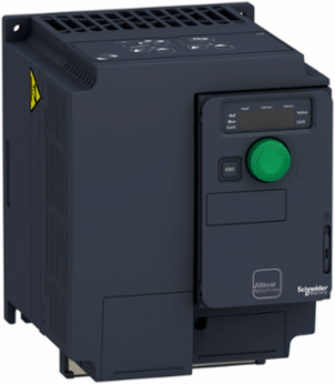

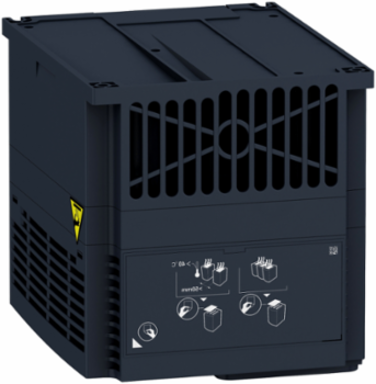

Schneider Electric ATV320U22S6C Variable Speed Drive, 2.2kW, 525-600V, Compact Design
Schneider Electric ATV320U22S6C Variable Speed Drive, 2.2kW, 525-600V, Compact Design
- MPN: ATV320U22S6C
- PPN: SCH-ATV320U22S6C
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$906.20/ EA
Description
Altivar Machine ATV320 range is an offer of variable speed drives designed for Original Equipment Manufacturers (OEMs). Its compact form factor allows vertical stacking of drives inside machine frames. It works at a rated power up to 2.2kW / 3hp and a rated voltage from 525V to 600V AC. Its robust design with IEC 60721-3-3 class 3C3 coated printed circuit boards allows to extend machine availability in harsh environmental conditions, for example at ambient temperatures of up to 60°C without the need of additional cooling. It incorporates functions suitable for the most common applications, including torque and speed accuracy at very low speed, high dynamic performance with flux vector control without sensor and extended frequency range for high-speed motors. It also incorporates parallel connection of motors and special drives using the voltage/frequency ratio and static speed accuracy and energy saving for open-loop synchronous motors. It weighs 2.0kg and its dimensions are 140mm wide, 184mm high, 158mm deep. The drive software includes 5 safety functions that help machines meet safety requirements, whether or not they are used in conjunction with a Preventa safety module. These safety functions are configured using SoMove software. Altivar Machine ATV320 was designed for Original Equipment Manufacturers (OEMs) that meets simple and advanced application requirements covered for packaging, material handling, textile, material working, mechanical actuators and hoisting. It conforms to IEC, UL, TUV, KC and other international standards. Mounting accessories and external options (braking resistors, line chokes, motor chokes, additional EMC filters) are available with Altivar Machine ATV320 drives. The type of external accessories and options depends on the drive rating. The product is delivered in two packages. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. It is fully integrated inside Schneider Electric’s EcoStruxure Machine through DTM. It is possible to configure, control, and diagnose ATV320 drives directly in SoMachine and SoMove software by means of the same software brick (DTM). It is eco-friendly and complies with directives such as RoHS, WEEE, etc.relating to environmental protection.
Features
- Designed with a slim "Book" form factor, this Altivar Machine ATV320 drive allows for side-by-side mounting without derating, significantly reducing the footprint required in your electrical enclosure. This space-saving design is ideal for industrial machine builders looking to pack more functionality into smaller, cost-effective cabinets without compromising thermal performance.
- Specifically engineered for 525V to 600V AC power supplies, this 2.2kW (3hp) variable speed drive provides precise motor control for heavy-duty Canadian and US industrial applications. By optimizing energy consumption and providing smooth ramp-ups, it prevents mechanical stress on high-voltage pumps, fans, and conveyors, extending the lifespan of your mechanical assets.
- This drive comes standard with five embedded safety functions, including Safe Torque Off (STO), which allows for immediate power removal while keeping the drive energized. These integrated features simplify machine design and help you achieve SIL3/PLe safety certifications more affordably by eliminating the need for complex external safety relays and redundant wiring.
- Equipped with native Modbus and CANopen communication protocols, the ATV320 ensures seamless integration into major automation architectures. Whether you are using EtherNet/IP, Profinet, or EtherCAT via optional modules, this "plug-and-play" connectivity allows for real-time monitoring and remote diagnostics, drastically reducing commissioning time and simplifying troubleshooting on the factory floor.
Specifications
- Power
- 2.2 kW heavy duty
- Current
- 3.9 A
- Operating Frequency
- 50-60 Hz
- Transient Overtorque
- 170-200% of nominal motor torque
- Nominal Switching Frequency
- 4 kHz
- Line Current
- 3.7 A at 525 V heavy duty, 3.2 A at 600 V heavy duty
- Power Dissipation
- 77 W at 525 V, 4 kHz switching frequency
- Maximum Output Voltage
- 600 V
- 4 Quadrant Operation Possible
- Yes
- Asynchronous Motor Control Profile
- voltage/frequency ratio (2,5 points), flux vector control without sensor, energy saving modes
- Acceleration And Deceleration Ramps
- linear, U, S, custom, ramp switching, adaptation, automatic stop with DC injection

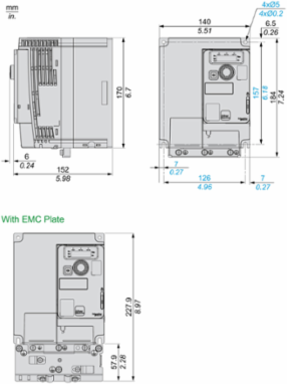

- Width
- 140 mm (5.51 in)
- Depth
- 158 mm (6.22 in)
- Mounting Mode
- Wall mount vertical +/- 10°
- Operating Temperature Range
- -10 to 50 °C without derating, up to 60 °C with derating
- Relative Humidity
- Class 3K5 (EN 60721-3)
- IP Rating
- IP20
- Analogue Inputs
- 3 inputs: AI1 voltage 0-10 V DC 30 kOhm, AI2 bipolar differential +/-10 V DC 30 kOhm, AI3 current 0-20 mA (configurable), 10 bits
- Discrete Outputs
- 3 open collector outputs, 30 V DC 100 mA
- Operating Position
- vertical +/- 10°
- Discrete Input Logic
- positive (source) or negative (sink) logic
- Maximum Deflection Under Vibratory Load (During Operation)
- 1.5 mm at 2-13 Hz
- Maximum Acceleration Under Vibrational Stress (During Operation)
- 10 m/s² at 13-200 Hz
- Electromagnetic Compatibility
- IEC 61000-4 series level 3-4 immunity tests, including ESD, radiated RF, fast transient, surge, conducted RF, voltage dips
- Compliance
- CE, ATEX, UL, CSA, EAC, RCM, KC
- Environmental Compliance
- RoHS compliant, Mercury free, WEEE compliant
- Pollution Degree
- 2
- Upgradeability
- upgraded components available
- Environmental Disclosure
- ENVPEP1512005EN
- Variant
- standard version
Voltage525-600 V AC (-15% to +10%)
Phases3
Maximum Output Frequency0.599 Hz
Switching Frequency Range2-16 kHz adjustable (4-16 kHz with derating)
Apparent Power3.4 kVA at 600 V heavy duty
Base Load Current At High Overload2.3 A
Overvoltage CategoryIII
Speed Accuracy+/- 10% of nominal slip 0.2 Tn to Tn
Motor Slip Compensationautomatic or adjustable 0-300%
Synchronous Motor Control Profilevector control without sensor
Regulation Loopadjustable PID regulator
Height184 mm (7.24 in)
Weight2.0 kg (4.41 lb)
Protection TypeInput phase breaks, overcurrent, overheating, short-circuit, thermal protection
Storage Temperature Range-25 to 70 °C
Environmental ClassClass 3C3, Class 3S2 (IEC 60721-3-3)
Analogue Outputs1 software-configurable current 0-20 mA (800 Ohm) or voltage 0-10 V DC (470 Ohm), 10 bits
Discrete Inputs7 inputs including 1 programmable pulse input 0-30 kHz, 24 V DC
Relay OutputsConfigurable relay logic with max switching current 2-5 A, 250 V AC or 30 V DC
Brake Chopper IntegratedYes
Volume Of Cooling Air37.7 m³/h
Maximum Acceleration Under Shock Impact (During Operation)150 m/s² at 11 ms
Format Of The Drivecompact
StandardsIEC 61800-5-1
Product CertificationsCE, ATEX, NOM, GOST, EAC, RCM, KC
Mercury FreeYes
Prospective Line Isc5 kA
Circularity ProfileENVEOLI1512005EN
Range Of ProductAltivar Machine ATV320
