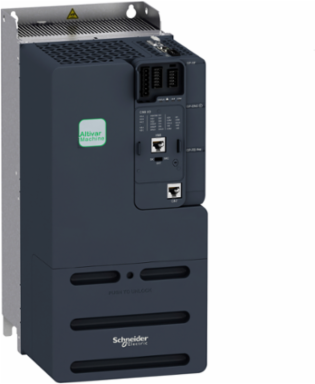

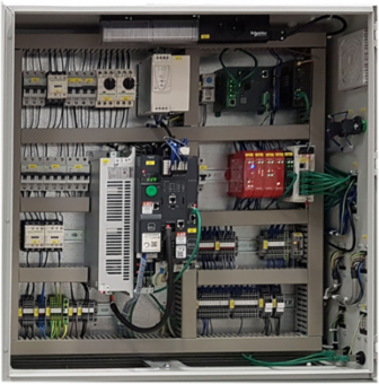

Altivar Machine Variable Speed Drive, 11kW, 400V, Heavy Duty, 3-Phase
Altivar Machine Variable Speed Drive, 11kW, 400V, Heavy Duty, 3-Phase
Altivar Machine Variable Speed Drive, 11kW, 400V, Heavy Duty, 3-Phase
Schneider Electric

Schneider Electric ATV340D11N4 Altivar Machine Variable Speed Drive, 11kW, 400V, Heavy Duty, 3-Phase

  • MPN: ATV340D11N4
  • PPN: SCH-ATV340D11N4
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $2762.22

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    Altivar Machine Variable Speed Drive, 11kW, 400V, Heavy Duty, 3-Phase

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Indonesia, United States

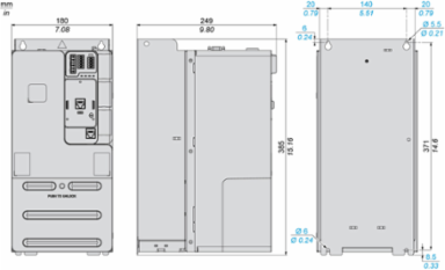

    Depth249.0 mm

    Communications & Management Attributes

    Communication Port Protocol
    Modbus serial

    Complementary Attributes

    Maximum Horse Power Rating
    20 hp normal duty, 15 hp heavy duty
    Maximum Transient Current
    35.2 A 60 s normal duty), 36 A 60 s heavy duty), 43.2 A 2 s normal duty), 43 A 2 s heavy duty)
    Brake Chopper Integrated
    true
    Maximum Input Current Per Phase
    34.7 A
    Maximum Output Voltage
    480 V
    Maximum Switching Currentrelay output R1C inductive, cos phi = 0.4 7 ms 2 A 30 V DC, relay output R2C resistive, cos phi = 1 5 A 30 V DC, relay output R2C inductive, cos phi = 0.4 7 ms 2 A 250 V AC, relay output R2C inductive, cos phi = 0.4 7 ms 2 A 30 V DCrelay output R1C resistive, cos phi = 1 3 A 250 V AC, relay output R1C resistive, cos phi = 1 3 A 30 V DC, relay output R1C inductive, cos phi = 0.4 7 ms 2 A 250 V AC, relay output R2C resistive, cos phi = 1 5 A 250 V AC
    Minimum Switching Currentrelay output R1B 5 mA 24 V DC, relay output R2C 5 mA 24 V DC
    Maximum Associated Fuse Rating63.0 A
    Maximum Output Frequency0.599 kHz

    Important Information Attributes

    Product Contributes To Saved And Avoided Emissions
    YES_SSI2, Yes
    Persona Type Names
    End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, System Integrator
    Asynchronous Motor Control Profile
    optimized torque mode, variable torque standard, constant torque standard
    Discrete And Process Manufacturing
    packaging other application, hoisting tower crane, hoisting other application, material handling grouping conveyor, material handling palletizer - high performance, material working (wood, ceramic, stone, pvc, metal) cutting - high accuracy, material working (wood, ceramic, stone, pvc, metal) polishing, material working (wood, ceramic, stone, pvc, metal) grinding, material working (wood, ceramic, stone, pvc, metal) slitter, packaging filling bottles - synchronized operation, packaging feed conveyor - medium performance, packaging grouping boxing, packaging conveyor, packaging elevator, hoisting standard crane - hoist, material handling automatic storage / retrieval system, packaging shrinking wrapping
    Electromagnetic Compatibility
    electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2, radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3, electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4, 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5, conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6
    Insulation Resistance
    > 1 MOhm 500 V DC for 1 minute to earth, > 1 MOhm 500 V DC for 1 minute to earth> 1 MOhm 500 V DC for 1 minute to earth, > 1 MOhm 500 V DC for 1 minute to earth
    Linearity Error
    AI1, AI2 +/- 0.15 % of maximum value analog input, AQ1 +/- 0.2 % analog output
    Motor Slip Compensation
    not available in permanent magnet motor law, adjustable, can be suppressed, automatic whatever the load
    Power Dissipation In W
    natural convection 13 W 380 V 4 kHz heavy duty), forced convection 241 W 380 V 4 kHz heavy duty), natural convection 16 W 380 V 4 kHz normal duty), forced convection 311 W 380 V 4 kHz normal duty)
    Protection Type
    safe torque off drive, motor phase loss drivethermal protection motor, safe torque off motor, motor phase loss motor, thermal protection drive, overheating drive, overcurrent drive, output overcurrent between motor phase and earth drive, output overcurrent between motor phases drive, short-circuit between motor phase and earth drive, short-circuit between motor phases drive, DC Bus overvoltage drive, line supply overvoltage drive, line supply undervoltage drive, input supply loss drive, exceeding limit speed drive, break on the control circuit drive
    Switching Frequency
    2...16 kHz adjustable, 4...16 kHz with derating factor
    Transmission Rate
    4.8 kbit/s, 9.6 kbit/s, 19.2 kbit/s, 38.4 kbit/s
    Motor Power Hp 12
    20 hp normal duty, 15 hp heavy duty
    [Ue] Rated Operational Voltage
    380...480 V 15 kW normal duty, 380...480 V 11 kW heavy duty, 380...480 V 20 hp normal duty, 380...480 V 15 hp heavy duty
    Input/Output Type
    programmable as logic input/output DQ1 0-1 kHz, <= 30 V DC, 100 mA, programmable as logic input/output DQ2 0-1 kHz, <= 30 V DC, 100 mA
    Environmental Class (During Storage)
    class 1C3 according to EN 60721-3-1, class 1S2 according to EN 60721-3-1
    Carbon Footprint Of The Distribution Phase [A4]
    2.1836769991377283, 2 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]
    2 kg CO2 eq., 1.7213766031619742
    Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
    7 719 kg CO2 eq., 7719.432075063918
    Local Publishable Date
    2026-01-12
    Stocking Flag
    N
    Device Type
    Variable speed drive - VSD Compacts
    Traceability
    Yes
    Average Life Duration
    10 year(s)
    Weee Scope
    In
    Scope Perimeter
    At least in Europe
    End Of Life Doc Ref
    ENVEOLI1609006EN
    Reach Full Compliance Status Id
    CONTAINS_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    1923
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    Yes
    Tier Id
    1
    Function Option Id
    STANDARD
    Market Segmentation Id
    INDUSTRIAL
    Product Kit Identifier
    N
    4 Quadrant Operation Possible
    true
    Assembly Style
    with heat sink
    Base Load Current At Low Overload
    32.0 A
    Capacity Of Dc Link
    1500.0 µF
    Data Format
    8 bits, configurable odd, even or no parity
    Emc Filter
    class C3 EMC filter integrated
    Isolation
    between power and control terminals
    Maximum Associated Fuse Rating
    63.0 A
    Method Of Access
    slave Modbus RTU
    Mounting Mode
    cabinet mount
    Noise Level
    55.6 dB
    Number Of Addresses
    1-247
    Number Of Output Phases
    3
    Operating Position
    vertical +/- 10 degree
    Overvoltage Category
    class III
    Power Loss Per Device Current Dependent
    363.0 W
    Product Availability
    Stock - Normally stocked in distribution facility
    Product Specific Application
    machine
    Range Of Product
    Altivar Machine ATV340
    Regulation Loop
    adjustable PID regulator
    Relative Symmetric Network Frequency Tolerance
    5 %
    Safety Function
    STO (safe torque off) SIL 3
    Software Version
    v6.1
    Supply Frequency
    50...60 Hz +/- 5 %
    Supporting Protocol For Bacnet
    false
    Supporting Protocol For Devicenet
    false
    Supporting Protocol For Foundation Fieldbus
    false
    Supporting Protocol For Knx
    false
    Supporting Protocol For Modbus
    true
    Supporting Protocol For Profibus
    true
    Supporting Protocol For Profinet Io
    true
    Supporting Protocol For Safetybus P
    false
    Supporting Protocol For Suconet
    false
    Total Lifecycle Carbon Footprint
    7 899 kg CO2 eq.
    Type Of Cooling
    forced convection
    Volume Of Cooling Air
    128.0 m3/h
    With Safety Function Safe Programmable Logic
    false
    Motor Power Kw 10
    15 kW normal duty11 kW heavy duty
    Database Version
    2023-02
    Pcr Version
    PCR-4-ed4-EN-2021 09 06
    Type Of Verification For The Pep
    Independent external review
    Functional-unit Description
    To adapt the speed and torque of synchronous, asynchronous or reluctance motor to the machine&apos;s operating point for 22 kW for heavy duty electric motors for fluid management and industrial applications in IP20/UL type 1 conditions, at 380V to 480V rated 3-phases voltage supply. Calculation of the environmental impacts is based on 10 years of product service lifetime. The usage profile taken into account is 80% uptime in use phase and 20% uptime in stand by phase.
    Functional-unit Unit
    Unit
    Energy Model - Manufacturing [A1-a3]
    Indonesia, ID
    Energy Model - Use [B6]
    Electricity Mix; Low voltage; 2018; Europe, EU-27
    Recyclability Potential, In %
    65
    Width Nominal
    180.0 mm
    Maximum Acceleration Under Shock Impact (During Operation)
    70 m/s² at 22 ms
    Maximum Acceleration Under Shock Load (During Transport)
    70 m/s² at 22 ms
    Maximum Acceleration Under Vibratory Load (During Storage)
    5 m/s² at 9...200 Hz
    Maximum Deflection Under Vibratory Load (During Operation)
    1.5 mm at 2...9 Hz
    Maximum Deflection Under Vibratory Load (During Transport)
    1.5 mm at 2...9 Hz
    Permitted Relative Humidity (During Storage)
    class 1K5 according to EN 60721-3
    Supporting Protocol For As-interface Safety At Work
    false
    Supporting Protocol For Ethernet/Ip
    false
    Supporting Protocol For Tcp/Ip
    false
    With Safety Function Safe Direction (Sdi)
    false
    With Safety Function Safe Position (Sp)
    false
    With Safety Function Safe Stop 1 (Ss1)
    true
    With Safety Function Safely Limited Position (Slp)
    false
    With Sft Fct Safe Stop 2 (Ss2)
    false
    Package Weight(Lbs)
    11.206 kg
    Warranty (In Months)
    18
    Persona Type IdsEU, OM, OM8, SI
    Apparent Power22.7 kVA 480 V normal duty), 23 kVA 480 V heavy duty)
    Connector Type1 x RJ45, Modbus serial on front face, 1 x RJ45, Modbus serial HMI on front face, 1 RJ45
    Electrical Connectionscrew terminal 0.2...2.5 mm² control, screw terminal 4...25 mm² line side, screw terminal 4...25 mm² DC bus, screw terminal 2.5...25 mm² motor, control screw terminal 0.2...2.5 mm² AWG 24...AWG 12, line side screw terminal 4...25 mm² AWG 10...AWG 3, DC bus screw terminal 4...25 mm² AWG 10...AWG 3, motor screw terminal 2.5...25 mm² AWG 12...AWG 3
    Encoder Protocol1 Vpp, EnDat 2.2, resolver, RS 422, SSI 24V, SSI 5V, TTL/HTL
    Line Current28.8 A 380 V normal duty), 23.0 A 480 V normal duty), 34.7 A 380 V heavy duty), 27.7 A 480 V heavy duty), 34.7 A 380 V without line choke heavy duty), 27.7 A 480 V without line choke heavy duty), 33.9 A 380 V with external line choke normal duty), 27.2 A 480 V with external line choke normal duty), 35.1 A 380 V with external line choke heavy duty), 27.8 A 480 V with external line choke heavy duty)
    Motor Power Kw15 kW normal duty, 11 kW heavy duty
    Option Cardcommunication module, Profibus DP V1, communication module, PROFINET, communication module, DeviceNet, communication module, CANopen, communication module, EtherCAT
    Power Range7-11 kW 380-440 V 3 phase, 7-11 kW 480-500 V 3 phase
    Sampling Duration2 ms +/- 0.5 ms DI1...DI5) - discrete input, 5 ms +/- 1 ms PTI) - pulse input, 1 ms +/- 1 ms AI1, AI2) - analog input, 5 ms +/- 1 ms AQ1) - analog output, 2 ms +/- 0.5 ms DQ1, DQ2) - discrete input/output
    Synchronous Motor Control Profilepermanent magnet motor, reluctance motor
    Vibration Resistance1.5 mm peak to peak 2-19 Hz)IEC 60721-3-3 class 3M3, 1 gn 9-200 Hz)IEC 60721-3-3 class 3M3
    Certificate AgencyUL, CSA, TÃœV, EAC, CTick
    [Us] Rated Supply Voltage380...480 V, 380...480 V - 15...10 %
    Environmental Class (During Operation)class 3C3 according to IEC 60721-3-3, class 3S3 according to IEC 60721-3-3
    Environmental Class (During Transport)class 2C3 according to EN 60721-3-2, class 2S1 according to EN 60721-3-2
    Carbon Footprint Of The End-of-life Phase [C1 To C4]20.85239870978329, 21 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]155 kg CO2 eq., 154.52649496583658
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy2
    ServiceabilityNo
    Field Service DivisionIDIBS
    Weee ApplicabilityFinished product
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label5
    Without Single Use PlasticNo
    Tier1
    Function OptionStandard
    Market SegmentationIndustrial
    1 Phase Low Current Possiblefalse
    Application In Domestic And Commercial Area Permittedfalse
    Base Load Current At High Overload24.0 A
    Braking To Standstillby DC injection
    Computer Porttrue
    Design Of Frequency ChangerU converter
    Housing Materialplastic
    MarkingCE
    Maximum Input Current Per Phase34.7 A
    Motor Starter Typevariable speed drive
    Network Frequency50-60 Hz
    Nominal Switching Frequency4 kHz
    Number Of Hw Interfaces Serial Rs4851
    Operating Element Presenttrue
    Optical Interface Presentfalse
    Phase3 phase
    Power Loss Static Current Independent19.0 W
    Product Or Component Typevariable speed drive
    Prospective Line Isc22 kA
    Refresh Timerelay output R1, R2)5 ms +/- 0.5 ms)
    Relative Symmetric Mains Voltage Tolerance10 %
    ReturnabilityYes
    Shock Resistance15 gn 11 ms, class 3M3 IEC 60721-3-3
    Specific Applicationmachine
    Supporting Protocol For Asifalse
    Supporting Protocol For Cantrue
    Supporting Protocol For Devicenet Safetyfalse
    Supporting Protocol For Interbusfalse
    Supporting Protocol For Lonfalse
    Supporting Protocol For Other Bus Systemstrue
    Supporting Protocol For Profinet Cbatrue
    Supporting Protocol For Profisafefalse
    Supporting Protocol For Sercosfalse
    Sustainable PackagingNo
    Transmission FrameRTU
    Type Of Polarizationno impedance
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Application In Industrial Area Permittedtrue
    Pep CodeENVPEP1609006EN
    Pep Verification Date2024-07-01
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime, In Y10
    Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; Europe, EU-27
    Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; Europe, EU-27
    Height Nominal385.0 mm
    Emc Limit Value (Complied)true
    Maximum Acceleration Under Shock Load (During Storage)70 m/s² at 22 ms
    Maximum Acceleration Under Vibrational Stress (During Operation)5 m/s² at 9...200 Hz
    Maximum Acceleration Under Vibratory Load (During Transport)5 m/s² at 9...200 Hz
    Maximum Deflection Under Vibratory Load (During Storage)1.5 mm at 2...9 Hz
    Permitted Relative Humidity (During Operation)class 3K5 according to EN 60721-3
    Permitted Relative Humidity (During Transport)class 2K5 according to EN 60721-3
    Supporting Protocol For Data-highwayfalse
    Supporting Protocol For Interbus-safetyfalse
    With Safety Function Safe Brake Management (Sbc/Sbt)true
    With Safety Function Safe Operating Stop (Sos)false
    With Safety Function Safe Speed Monitor (Ssm)false
    With Safety Function Safe Torque Off (Sto)true
    With Safety Function Safely Limited Speed (Sls)true
    Nbr. Of Units In Pkg.1
    Take-backNo

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -15-50 °C without derating vertical position), -15-50 °C without derating vertical position), -15-50 °C without derating vertical position), -15-60 °C, -15-60 °C, -15-50 °C without derating vertical position), -15-50 °C without derating vertical position), -15-50 °C without derating vertical position), 50-60 °C with derating factor vertical position)
    Ambient Air Transport Temperature
    -40-70 °C, -40-70 °C
    Take Back
    No
    China Rohs Regulation
    X
    Carbon Footprint
    7898.716022341838
    Environmental Disclosure
    ENVPEP1609006EN
    Ip Degree Of Protection
    IP20
    Packaging Made With Recycled Cardboard
    Yes
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    Pep Verification Date
    2024-07-01
    Psr Version
    PSR-0005-ed3.1-EN-2023 12 08
    Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
    Operating Altitude<= 9842.52 ft (3000 m) with current derating above 1000m, <= 9842.52 ft (3000 m) with current derating above 1000m<= 9842.52 ft (3000 m) with current derating above 1000m, <= 9842.52 ft (3000 m) with current derating above 1000m
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Circularity ProfileENVEOLI1609006EN
    Eu Rohs DirectiveCompliant By Exemption
    Nema Degree Of Protectionnot applicable
    Packaging Without Single Use PlasticNo
    Pep CodeENVPEP1609006EN
    Pcr VersionPCR-4-ed4-EN-2021 09 06
    Type Of Verification For The PepIndependent external review

    General Attributes

    Phase
    3 phase
    Range Of Product
    Altivar Machine ATV340
    Product Or Component Typevariable speed drive

    ETIM

    ETIM 8
    EC001857
    ETIM 9EC001857

    Output Attributes

    Analogue Output Type
    software-configurable voltage AQ1 0...10 V DC 470 Ohm 10 bits, software-configurable current AQ1 0...20 mA 500 Ohm 10 bits
    Output Voltage
    <= power supply voltage, <= power supply voltage
    Analogue Output Number
    1
    Discrete Output Type
    programmable output DQ1, DQ2 30 V DC 100 mA
    Maximum Output Voltage
    480 V
    Nominal Output Power
    11.0 kW
    Speed Drive Output Frequency
    0.1-599 Hz
    Continuous Output Current32 A 4 kHz normal duty, 24 A 4 kHz heavy duty
    Relay Output Typerelay outputs R1A, relay outputs R1C 100000 cycles, relay outputs R2A, relay outputs R2C 100000 cycles
    Discrete Output Number2.0
    Maximum Output Frequency0.599 kHz
    Nominal Output Current24.0 A
    Relay Output Number2

    Surge Protection And Filtering Attributes

    Emc Filter
    class C3 EMC filter integrated

    Input Attributes

    Analogue Input Type
    AI1 software-configurable current 0...20 mA 250 Ohm 12 bits, AI1 software-configurable temperature probe or water level sensor, AI1 software-configurable voltage 0...10 V DC 31.5 kOhm 12 bits, AI2 software-configurable voltage - 10...10 V DC 31.5 kOhm 12 bits
    Discrete Input Type
    PTI programmable as pulse input 0-30 kHz, 24 V DC 30 V), DI1...DI5 programmable, 24 V DC 30 V)3.5 kOhm
    Analogue Input Number
    2
    Number Of Input Phases
    3
    Discrete Input Logicpositive logic (source) DI1...DI5), < 5 V, > 11 V, negative logic (sink) DI1...DI5), > 16 V, < 10 V, positive logic (source) PTI), < 0.6 V, > 2.5 V, positive logic (source) STOA, STOB), < 5 V, > 11 V, 16 preset speeds
    Input CompatibilityDI1...DI5 discrete input level 1 PLC IEC 61131-2, PTI pulse input level 1 PLC IEC 65A-68, STOA, STOB discrete input level 1 PLC IEC 61131-2
    Discrete Input Number5
    Loading video…

    Accessories

    Loading carousel layout...

    Similar Products

    Loading carousel layout...

    CAD$2762.22/ EA

    Loading add to cart quantity...

    banner

    Need assistance?

    We can help! Connect with our Sales Team Today!

    Contact Us
    ",{"children":null,"id":"ahrefs web analytics"}])",{"children":null,"id":"ahrefs web analytics"}])
