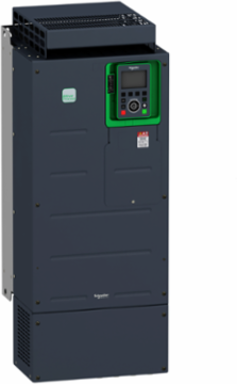

Schneider Electric ATV630D75S6 Variable Speed Drive 100hp 600V IP20

  • MPN: ATV630D75S6
  • PPN: SCH-ATV630D75S6
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    The ATV630D75S6 Variable Speed Drive from Schneider Electric is engineered to deliver reliable performance in demanding industrial applications. With a powerful capability of 100 horsepower and designed for operation at 600V, this variable speed drive excels in enhancing energy efficiency and control over motor performance. Its wall mount design maximizes space utilization, while the IP20 rating ensures adequate protection in dry and clean environments. Ideal for automating and controlling AC motors, this drive is a robust solution for modern automation needs, providing versatility and precision in motor management.

    Documentation & Downloads

    Specifications

    Additional

    Horsepower
    100 Hp normal duty, 75 Hp heavy duty
    Apparent Power
    92.9 kVA 600 V normal duty, 72.9 kVA 600 V heavy duty
    Supply Voltage
    600 V -15...10 %
    Switching Frequency
    1...4.9 kHz adjustable, 2.5...4.9 kHz with derating factor
    Speed Drive Output Frequency
    0.1-500 Hz
    Maximum Output Frequency
    500 kHz
    Protection Type
    Thermal protection motor, Safe torque off motor, Motor phase break motor, Thermal protection drive, Safe torque off drive, Overheating drive, Overcurrent between output phases and earth, Overload of output voltage, Short-circuit protection, Motor phase break, Overvoltages on DC bus, Line supply overvoltage, Undervoltage, Phase loss, Overspeed, Break on control circuit
    Mounting
    Wall mount
    Net Weight
    55 kg (121.25 lb)
    Operating Altitude
    ≤ 1000 m without derating, 1000–4800 m with derating 1 % per 100 m
    Ambient Air Temperature for Storage
    -40 to 70 °C
    Power Dissipation
    Natural convection 287 W 600 V 2.5 kHz, Forced convection 1206 W 600 V 2.5 kHz
    Degree of Protection
    UL type 1 UL 508C
    Pollution Degree
    2 IEC 61800-5-1
    Product Certifications
    TÃœV, CSA, UL
    RoHS Compliance
    Pro-active compliance, Mercury free, China RoHS Declaration
    EMC Filter
    Without EMC filter
    Physical Interface
    Ethernet, 2-wire RS 485
    Data Format
    8 bits, configurable odd, even or no parity
    Number of Addresses
    1–247 Modbus serial
    Analogue Input Number
    3
    Analogue Output Number
    2
    Discrete Input Number
    8
    Discrete Input Type
    DI7, DI8 programmable as pulse input 0–30 kHz, 24 V DC ≤ 30 V
    Discrete Output Type
    Relay outputs R1A, R1B, R1C 250 V AC 3000 mA, R2A, R2C 250 V AC 5000 mA, R3A, R3C 250 V AC 5000 mA
    Relay Output Type
    Configurable relay logic R1 fault NO/NC, R2 sequence NO, R3 sequence NO
    Minimum Switching Current
    5 mA 24 V DC
    Noise Level
    52–56 dB
    Shock Resistance
    15 g 11 ms IEC 60068-2-27
    Sustainable Status
    Green Premium product
    Line Current89.4 A normal duty, 70.1 A heavy duty
    Continuous Output Current100 A normal duty, 83 A heavy duty
    Supply Frequency50...60 Hz -5...5 %
    Nominal Switching Frequency2.5 kHz
    Permissible Temporary Current Boost1.1 x In 60 s normal duty, 1.5 x In 60 s heavy duty
    Prospective Line Isc70 kA
    Safety FunctionSTO (safe torque off) SIL 3
    DimensionsWidth 331 mm (13.03 in), Height 822 mm (32.36 in), Depth 297 mm (11.69 in)
    Operating PositionVertical ±10°
    Ambient Air Temperature for Operation-15 to 50 °C without derating, 50 to 60 °C with derating
    Volume of Cooling Air406 m³/h (107255.77 Gal/hr)
    Material & ConstructionNot specified
    IP RatingIP20 IEC 61800-5-1, IP20 IEC 60529
    Overvoltage CategoryIII
    StandardsUL 508C, IEC 61800-3, IEC 61800-5-1, IEC 61000-3-12, IEC 60721-3, IEC 61508, IEC 13849-1
    Electromagnetic CompatibilityIEC 61000-4-2 level 3, IEC 61000-4-3 level 3, IEC 61000-4-4 level 4, IEC 61000-4-5 level 3, IEC 61000-4-6 level 3
    Communication ProtocolsModbus serial, Modbus TCP, Ethernet
    Connector TypeRJ45 (Ethernet/Modbus TCP, Modbus serial)
    Exchange ModeHalf duplex, full duplex, autonegotiation Ethernet/Modbus TCP
    Method of AccessSlave Modbus TCP
    Analogue Input TypeVoltage 0–10 V DC, Current 0–20 mA, 12 bits
    Analogue Output TypeVoltage 0–10 V DC, Current 0–20 mA, Current 30 V DC 100 mA
    Discrete Input Logic16 preset speeds, positive logic (source), negative logic (sink)
    Discrete Output Number0
    Relay Output Number3
    Maximum Switching Current3 A 250 V AC resistive, 3 A 30 V DC resistive, 2 A 250 V AC inductive, 2 A 30 V DC inductive
    Insulation Resistance> 1 MOhm 500 V DC for 1 min to earth
    Vibration Resistance1.5 mm peak-to-peak 2–13 Hz, 1 g 13–200 Hz
    Relative Humidity5–95 % non-condensing IEC 60068-2-3
    Country of OriginIN
