Variable Speed Drive 3hp 600V IP21, Wall Mounted
Schneider Electric

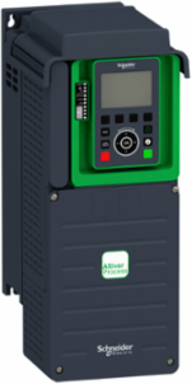

Schneider Electric ATV630U22S6X Variable Speed Drive 3hp 600V IP21, Wall Mounted

  • MPN: ATV630U22S6X
  • PPN: SCH-ATV630U22S6X
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $1737.78

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    The Schneider Electric ATV630U22S6X Variable Speed Drive is engineered for efficiency and reliability in various automation and control applications. With a robust capacity of 3hp and designed for use in environments up to 600V, this wall-mounted drive ensures seamless control over motor operations. Rated at IP21, it offers essential protection against limited dust and moisture, making it suitable for diverse operational settings. This drive is an optimal choice for enhancing performance in dynamic industrial environments, allowing for precise speed adjustments and improved energy management.

    Documentation & Downloads

    Specifications

    Additional

    Rated Power
    3 hp normal duty, 2 hp heavy duty
    Maximum Transient Current
    4.6 A 60 s normal duty, 4.7 A 60 s heavy duty
    Supply Voltage
    600 V -15...10 %
    Supply Frequency
    50...60 Hz -5...5 %
    Nominal Switching Frequency
    4 kHz
    Phase
    3 phase
    Protection Type
    thermal protection motor and drive, safe torque off motor and drive, motor phase break motor and drive, overheating drive, overcurrent, overvoltage, undervoltage, phase loss, overspeed, short-circuit
    Motor Power Hp
    3 hp normal duty, 2 hp heavy duty
    Apparent Power
    3 kVA normal duty, 2.2 kVA heavy duty
    Operating Temperature
    5-50 °C without derating, 50-60 °C with derating
    Operating Altitude
    <= 1000 m without derating, 1000-4800 m with current derating 1% per 100 m
    Type Of Cooling
    forced convection

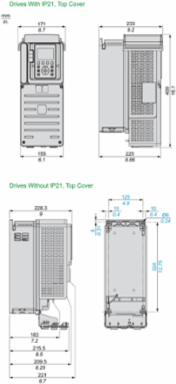

    Width
    6.73 in (171 mm)
    Net Weight
    12.13 lb (5.5 kg)
    Enclosure Mounting
    wall mounted
    Connector Type
    RJ45 on remote graphic terminal: Ethernet/Modbus TCP, Modbus serial
    Communication Port Protocol
    Modbus TCP, Modbus serial, Ethernet
    Relay Output Type
    configurable relay logic fault and sequence relays NO/NC 100000 cycles
    Discrete Output Type
    relay outputs 250 V AC 3 A, 30 V DC 3 A, 5 A depending on relay
    Discrete Input Type
    DI7, DI8 programmable as pulse input 0-30 kHz, 24 V DC <= 30 V
    Analog Input Number
    3
    Analog Output Number
    2
    Analogue Input Type
    software-configurable voltage 0-10 V DC 31.5 kOhm 12 bits; software-configurable current 0-20 mA 250 Ohm 12 bits
    Data Format
    8 bits, configurable odd, even or no parity
    Transmission Frame
    RTU
    Method Of Access
    slave Modbus TCP
    Upgradeability
    upgraded components available
    Standards
    UL 508C, IEC 61800-3, IEC 61800-5-1, IEC 61000-3-12, IEC 60721-3, IEC 61508, IEC 13849-1
    Insulation Resistance
    > 1 MOhm 500 V DC for 1 minute to earth
    IP Degree Of Protection
    IP21 IEC 61800-5-1, IP21 IEC 60529
    Relative Humidity
    5-95% without condensation IEC 60068-2-3
    Shock Resistance
    15 gn 11 ms IEC 60068-2-27
    Frequency Resolution
    display unit 0.1 Hz, analog input 0.012/50 Hz
    Linearity Error
    AI1, AI2, AI3 +/- 0.15% of max value; AO1, AO2 +/- 0.2%
    Permissible Temporary Current Boost
    1.1 x In 60 s normal duty, 1.5 x In 60 s heavy duty
    Minimum Switching Current
    relay 5 mA 24 V DC
    Product Destination
    asynchronous and synchronous motors
    Range Of Product
    Altivar Process ATV600
    Synchronous Motor Control Profile
    permanent magnet motor, synchronous reluctance motor
    Motor Slip Compensation
    can be suppressed, adjustable, automatic except permanent magnet motor
    Emission
    Mercury free
    Environmental Disclosure
    ENVPEP1707007EN
    Weee
    EU disposal requirements
    Continuous Output Current4.2 A normal duty, 3.1 A heavy duty
    Line Current2.9 A normal duty, 2.1 A heavy duty
    Voltage600 V
    Switching Frequency2...12 kHz adjustable, 4...12 kHz with derating factor
    Speed Drive Output Frequency0.1...500 Hz
    Maximum Output Frequency500 kHz
    Safety FunctionSTO (safe torque off) SIL 3
    Overvoltage CategoryIII
    Pollution Degree2 IEC 61800-5-1
    Storage Temperature-40-70 °C
    Noise Level52 dB
    Length16.10 in (409 mm)
    Depth9.17 in (233 mm)
    Mounting Modewall mount
    Physical InterfaceEthernet, 2-wire RS 485
    Communication ProtocolsModbus TCP, Modbus serial, Ethernet
    Relay Output Number3
    Discrete Output Number0
    Discrete Input Number8
    Discrete Input Logicpositive logic (source) DI1...DI8, <5 V, >11 V; negative logic (sink) DI1...DI8, >16 V, <10 V; 16 preset speeds
    Analogue Input Number3
    Analogue Output Number2
    Analogue Output Typesoftware-configurable voltage 0-10 V DC 470 Ohm 10 bits; software-configurable current 0-20 mA 10 bits; software-configurable current 30 V DC and 100 mA
    Transmission Rate10, 100 Mbits; 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps
    Exchange Modehalf duplex, full duplex, autonegotiation Ethernet/Modbus TCP
    Supplyexternal 24 V DC for digital inputs, internal 10.5 V DC for potentiometer, internal 24 V DC for digital inputs and STO
    Product CertificationsTÃœV, UL, CSA
    Electromagnetic CompatibilityIEC 61000-4-2 level 3, IEC 61000-4-3 level 3, IEC 61000-4-4 level 4, IEC 61000-4-5 level 3, IEC 61000-4-6 level 3
    Degree Of ProtectionUL type 1 UL 508C
    Braking To Standstillby DC injection
    Vibration Resistance1.5 mm peak to peak 2-13 Hz, 1 gn 13-200 Hz IEC 60068-2-6
    Operating Positionvertical +/- 10 degrees
    Accuracy+/- 0.6% for AI1, AI2, AI3; +/- 1% for AO1, AO2 over 60 °C temperature variation
    Sampling Duration2 ms DI1...DI4, 5 ms DI5, DI6, 5 ms AI1, AI2, AI3, 10 ms AO1
    Maximum Switching Currentrelay resistive 3 A 250 V AC & 30 V DC; relay inductive 2 A 250 V AC & 30 V DC
    Local Signallinglocal diagnostic 3 LEDs, communication status LEDs, presence of voltage LED
    Product Specific Applicationprocess and utilities
    Device Short NameATV630
    Asynchronous Motor Control Profileconstant torque standard, optimized torque mode, variable torque standard
    Type Of Polarizationno impedance
    RoHS CompliancePro-active compliance (Product out of EU RoHS legal scope), China RoHS X
    Circularity ProfileENVEOLI1707007EN
    Sustainable Offer StatusGreen Premium product
