Variable Speed Drive 20hp 600V IP21, Wall Mount, Green Premium
Schneider Electric

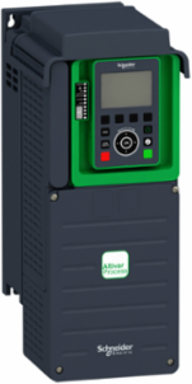

Schneider Electric ATV630D15S6X Variable Speed Drive 20hp 600V IP21, Wall Mount, Green Premium

  • MPN: ATV630D15S6X
  • PPN: SCH-ATV630D15S6X
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $3735.91

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    Designed to enhance operational efficiency, this variable speed drive from Schneider Electric delivers exceptional performance for a range of automation applications. With its robust 20 horsepower capacity and compatibility with 600V systems, it plays a crucial role in precise motor control and energy management. The ATV630D15S6X model features an IP21 rating, ensuring it is suitable for indoor environments, effectively safeguarding it against dust and water ingress. Ideal for various industrial settings, this drive empowers users to optimize their processes with reliable speed regulation and adaptability to changing demands.

    Documentation & Downloads

    Specifications

    Additional

    Horse Power
    20 hp
    Voltage
    600 V
    Line Current
    19.6 A normal duty, 15.3 A heavy duty
    Apparent Power
    20.4 kVA normal duty, 15.9 kVA heavy duty
    Switching Frequency
    2-12 kHz adjustable, 4-12 kHz with derating
    Ambient Air Temperature for Operation
    -15-50 °C without derating, 50-60 °C with derating
    Protection Type
    Thermal protection motor and drive, Safe Torque Off motor and drive, Motor phase break motor and drive, Overheating drive, Overcurrent, Overload, Short-circuit protection, Overvoltages, Line supply overvoltage/undervoltage, Phase loss, Overspeed, Control circuit break
    Ambient Air Temperature For Operation
    -15-50 °C without derating; 50-60 °C with derating
    Output Voltage
    ≤ power supply voltage
    Maximum Output Frequency
    500 kHz
    Weight
    5.5 kg (12.13 lb)
    Mounting Mode
    Wall mount
    Electrical Connection
    Control removable screw terminals 0.5-1.5 mm² AWG 20-16; motor screw terminal 6-10 mm² AWG 10-8; line side screw terminal 6-10 mm² AWG 10-8
    Discrete Input Number
    8
    Analogue Output Number
    2
    Relay Output Number
    3
    Noise Level
    52 dB
    Ip Degree Of Protection
    IP21 IEC 61800-5-1, IEC 60529
    Product Certifications
    TÃœV, UL, CSA
    Supply for Digital Inputs
    24 V DC 19-30 V, <1.25 mA overload and short-circuit protection
    Operating Altitude
    ≤1000 m without derating; 1000-4800 m with 1% current derating per 100 m
    Discrete Input Logic
    Positive logic (source) DI1-DI8 <5 V low, >11 V high; Negative logic (sink) DI1-DI8 >16 V high, <10 V low
    Operating Position
    Vertical ±10°
    Emc Filter
    Without EMC filter
    Discrete Output Type
    Relay outputs R1A, R1B, R1C 250 V AC 3000 mA or 30 V DC 3000 mA; R2A, R2C and R3A, R3C 250 V AC 5000 mA or 30 V DC 5000 mA
    Product Specific Application
    Process and utilities
    Power Dissipation
    136 W natural convection; 192 W forced convection at 600 V 4 kHz
    Shock Resistance
    15 gn 11 ms IEC 60068-2-27
    Discrete Input Type
    DI7, DI8 programmable as pulse input 0-30 kHz, 24 V DC ≤30 V
    Pollution Degree
    2 IEC 61800-5-1
    Regulation Loop
    Adjustable PID regulator
    Maximum Switching Current
    3 A 250 V AC or 30 V DC resistive; 2 A 250 V AC or 30 V DC inductive
    Device Short Name
    ATV630
    Relative Humidity
    5-95% non-condensing IEC 60068-2-3
    Degree Of Protection
    UL type 1 UL 508C
    Connector Type
    RJ45 Ethernet/Modbus TCP and Modbus serial
    Electromagnetic Compatibility
    Immunity tests IEC 61000-4 (2, 3, 4, 5, 6) levels 3-4
    Product Destination
    Asynchronous and synchronous motors
    Analogue Output Type
    Software-configurable voltage 0-10 V DC 470 Ω 10 bits; current 0-20 mA 10 bits
    Sampling Duration
    2 ms ±0.5 ms DI1-DI4; 5 ms ±1 ms DI5-DI6; 5 ms ±0.1 ms AI1-AI3; 10 ms ±1 ms AO1
    Communication Port Protocol
    Modbus TCP, Ethernet, Modbus serial
    Exchange Mode
    Half duplex, full duplex, autonegotiation Ethernet/Modbus TCP
    Motor Slip Compensation
    Adjustable, automatic regardless of load; can be suppressed; not available for permanent magnet motor law
    Upgradeability
    Upgraded components available
    Rohs Exemption Information
    Yes
    Linearity Error
    AI1, AI2, AI3 ±0.15% max analog input; AO1, AO2 ±0.2% analog output
    Vibration Resistance
    1.5 mm peak-to-peak 2-13 Hz; 1 gn 13-200 Hz IEC 60068-2-6
    Method Of Access
    Slave Modbus TCP
    Rated Supply Voltage600 V -15...10 %
    Phase3 phase
    Continuous Output Current22 A normal duty, 18 A heavy duty
    Speed Drive Output Frequency0.1-500 Hz
    Safety FunctionSTO (safe torque off) SIL 3
    Supply Frequency50-60 Hz ±5 %
    Braking To StandstillBy DC injection
    Product Or Component TypeVariable speed drive
    Network Number Of Phases3 phases
    Mounting ModeWall mount

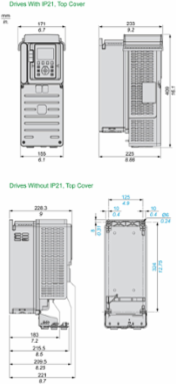

    Dimensions (W×H×D)171 mm × 409 mm × 233 mm (6.7 in × 16.1 in × 9.17 in)
    Height409 mm
    Width171 mm
    Analogue Input Number3
    Discrete Output Number0
    Relay Output TypeConfigurable relay logic R1 fault relay NO/NC 100000 cycles; R2 and R3 sequence relays NO 100000 cycles
    Overvoltage CategoryIII
    Ip Degree Of ProtectionIP21 IEC 61800-5-1, IEC 60529
    StandardsUL 508C, IEC 61800-3, IEC 61800-5-1, IEC 61000-3-12, IEC 60721-3, IEC 61508, IEC 13849-1
    Data Format8 bits, configurable odd, even or no parity
    Accuracy+/- 0.6% AI1, AI2, AI3; +/- 1% AO1, AO2 for 60 °C variation
    Option CardMultiple slot A/B communication and I/O extension modules including Profibus DP V1, PROFINET, DeviceNet, Modbus TCP/EtherNet/IP, CANopen (daisy chain, SUB-D 9, screw terminals), BACnet MS/TP, Ethernet Powerlink
    Analogue Input TypeSoftware-configurable voltage 0-10 V DC 31.5 kΩ 12 bits; current 0-20 mA 250 Ω 12 bits
    Permissible Temporary Current Boost1.1×In 60 s normal duty; 1.5×In 60 s heavy duty
    Range Of ProductAltivar Process ATV600
    Mercury FreeYes
    Transmission FrameRTU
    Ambient Air Temperature For Storage-40 to 70 °C
    Motor Power Hp20 hp 600 V normal duty; 15 hp 600 V heavy duty
    Maximum Thdi<48% with external line choke IEC 61000-3-12
    Acceleration And Deceleration RampsLinear adjustable separately 0.01-9999 s; S, U or customized
    Type Of CoolingForced convection
    Number Of Addresses1-247 Modbus serial
    Insulation Resistance>1 MΩ 500 V DC 1 min to earth
    Transmission Rate10, 100 Mbits Ethernet; 4800, 9600, 19200, 38.4 Kbps serial
    Input CompatibilityDI1-DI6 discrete input level 1 PLC IEC 61131-2, DI5-DI6 discrete input level 1 PLC IEC 65A-68, STOA, STOB discrete input level 1 PLC IEC 61131-2
    Discrete Input Logic16 preset speeds
    Asynchronous Motor Control ProfileConstant torque standard, optimized torque mode, variable torque standard
    Type Of PolarizationNo impedance
    Minimum Switching Current5 mA 24 V DC relay output R1, R2, R3
    Prospective Line Isc70 kA
    Synchronous Motor Control ProfilePermanent magnet motor, synchronous reluctance motor
    Local SignallingLocal diagnostic 3 LEDs; embedded communication status 3 dual-color LEDs; communication module status 4 dual-color LEDs; presence of voltage 1 red LED
    Physical InterfaceEthernet, 2-wire RS 485
    Maximum Transient Current24.2 A 60 s normal duty; 27 A 60 s heavy duty
    VariantStandard version
    SupplyExternal 24 V DC 19-30 V for digital inputs; internal 10.5 V DC ±5% for reference potentiometer; internal 24 V DC 21-27 V for digital inputs and STO
    Circularity ProfileENVEOLI1707007EN
