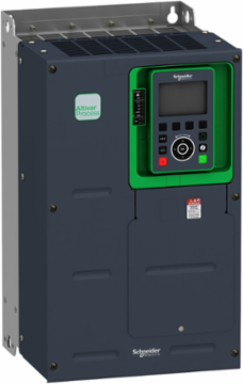

Schneider Electric ATV930U22Y6 Variable Speed Drive, 2.2 kW, 3 hp, 500-690V, IP21, 58 dB
- MPN: ATV930U22Y6
- PPN: SCH-ATV930U22Y6
CAD
$1916.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

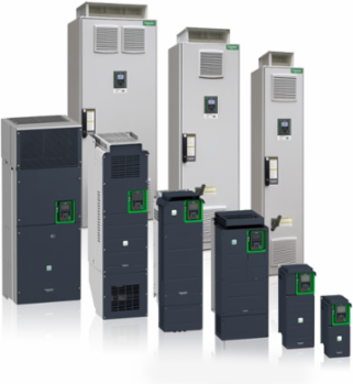

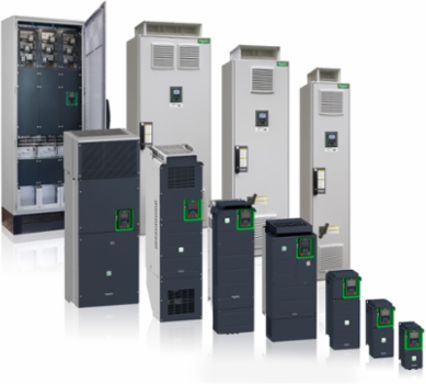

This Altivar Process ATV900 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It is suitable for motors with power rating up to 2.2kW/3HP for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 1.1kW/1.5HP for applications requiring significant overload (up to 150%). It works at a rated supply voltage from 500Vac to 690Vac. This variable speed / frequency drive (VSD / VFD) is specifically designed for industrial processes. In the following market segments: oil and gas, mining, minerals and metals, food and beverage water and wastewater. It offers high motor performance on any motor and total control of any kind of coupling in master/slave applications. Network services help ensure operation continuity even in case of connection breakdown. Web server and data logging help reduce downtime through fast troubleshooting and preventive maintenance. Its advanced connectivity, including EtherNet/IP and Modbus TCP, allows deep integration into automation architectures.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Indonesia, India, United States

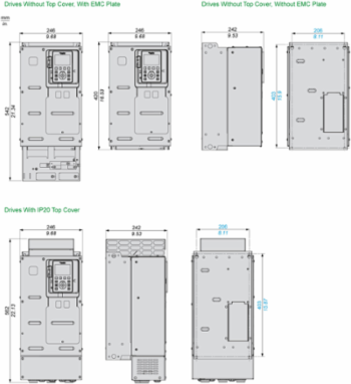

Depth242 mm
Communications & Management Attributes
- Communication Port Protocol
- EtherNet/IP, Modbus serial, Modbus TCP
Complementary Attributes
- Brake Chopper Integrated
- true
- Maximum Input Current Per Phase
- 3.6 A
- Maximum Output Voltage
- 690.0 V
- Maximum Transient Current
- 3.72 A 60 s normal duty)3.6 A 60 s heavy duty)
Maximum Associated Fuse Rating8.0 A
Maximum Output Frequency599 Hz
Maximum Switching Currentrelay output R1 inductive, cos phi = 0.4 7 ms 2 A 30 V DCrelay output R2, R3 resistive, cos phi = 1 5 A 30 V DCrelay output R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V ACrelay output R2, R3 inductive, cos phi = 0.4 7 ms 2 A 30 V DCrelay output R1 resistive, cos phi = 1 3 A 250 V ACrelay output R1 resistive, cos phi = 1 3 A 30 V DCrelay output R1 inductive, cos phi = 0.4 7 ms 2 A 250 V ACrelay output R2, R3 resistive, cos phi = 1 5 A 250 V AC
Minimum Switching Currentrelay output R1, R2, R3 5 mA 24 V DC
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8, SI
- Asynchronous Motor Control Profile
- variable torque standard, optimized torque mode, constant torque standard
- Data Format
- Modbus serial, 8 bits, configurable odd, even or no parity
- Emc Filter
- integrated, with EMC plate option
- Line Current
- 2.6 A 690 V heavy duty), 3.4 A 500 V normal duty)2.6 A 500 V heavy duty)3.6 A 690 V normal duty)
- Motor Slip Compensation
- automatic whatever the load, adjustable, can be suppressed, not available in permanent magnet motor law
- Product Destination
- synchronous motors, asynchronous motors
- Sampling Duration
- 2 ms +/- 0.5 ms DI1...DI8) - discrete input5 ms +/- 1 ms DI7, DI8) - pulse input, 1 ms +/- 1 ms AI1, AI2, AI3) - analog input5 ms +/- 1 ms AQ1, AQ2) - analog output
- Transmission Rate
- 10/100 Mbit/s Ethernet IP/Modbus TCP4.8, 9.6, 19.2, 38.4 kbit/s Modbus serial, 10, 100 Mbits, 4.8 kbps, 9600 bit/s, 19200 bit/s
- [Ue] Rated Operational Voltage
- 690 V 1.5 kW 2 hp heavy duty, 500 V 1.5 kW 2 hp normal duty, 500 V 1.1 kW 1.5 hp heavy duty, 690 V 2.2 kW 3 hp normal duty
- Environmental Class (During Storage)
- class 1C3 according to EN 60721-3-1, class 1S2 according to EN 60721-3-1
- Carbon Footprint Of The Distribution Phase [A4]
- 6.040869799506476, 6 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 10 kg CO2 eq., 10.460376275840128
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 2 571 kg CO2 eq., 2570.7504026724464
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- N
- Device Type
- Variable speed drive - VSD Compacts
- Traceability
- Yes
- Average Life Duration
- 10 year(s)
- Weee Applicability
- Finished product
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- No
- Dangerous Goods Code
- LITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
- Tier
- 2
- Function Option
- Advanced
- Market Segmentation
- Industrial
- 1 Phase Low Current Possible
- false
- Apparent Power
- 4.3 kVA 690 V normal duty)3.1 kVA 690 V heavy duty)
- Assembly Style
- enclosed
- Base Load Current At High Overload
- 2.4 A
- Braking To Standstill
- by DC injection
- Design Of Frequency Changer
- U converter
- Exchange Mode
- half duplex, full duplex, autonegotiation Ethernet IP/Modbus TCP
- Isolation
- between power and control terminals
- Maximum Associated Fuse Rating
- 8.0 A
- Method Of Access
- slave Modbus TCP
- Mounting Mode
- wall mount
- Nominal Switching Frequency
- 4 kHz
- Number Of Hw Interfaces Industrial Ethernet
- 2
- Number Of Output Phases
- 3
- Operating Position
- vertical +/- 10 degree
- Overvoltage Category
- III
- Power Dissipation In W
- forced convection 43 W 500 V 4 kHznatural convection 73 W 500 V 4 kHz
- Power Loss Static Current Independent
- 41.0 W
- Product Or Component Type
- variable speed drive
- Prospective Line Isc
- 70 kA
- Range Of Product
- Altivar Process ATV900
- Regulation Loop
- adjustable PID regulator
- Relative Symmetric Network Frequency Tolerance
- 5 %
- Software Version
- v6.1
- Supporting Protocol For Bacnet
- false
- Supporting Protocol For Devicenet
- false
- Supporting Protocol For Foundation Fieldbus
- false
- Supporting Protocol For Knx
- false
- Supporting Protocol For Modbus
- true
- Supporting Protocol For Profibus
- true
- Supporting Protocol For Profinet Io
- true
- Supporting Protocol For Safetybus P
- false
- Supporting Protocol For Suconet
- false
- Switching Frequency
- 2...8 kHz adjustable4...8 kHz with derating factor
- Transmission Frame
- RTU
- Updatability
- Upgradeable through digital modules
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Application In Industrial Area Permitted
- true
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- To adapt the speed and torque of synchronous, asynchronous or reluctance motor to the machine's operating point for 22 kW for heavy duty electric motors for fluid management and industrial applications in IP20/UL type 1 conditions, at 600V rated 3-phases voltage supply. Calculation of the environmental impacts is based on 10 years of product service lifetime. The usage profile taken into account is 80% uptime in use phase at 75% loading rate and 20% uptime in stand by phase.
- Functional-unit Unit
- Unit
- Energy Consumption On Product Lifetime In Kwh
- 6272.16
- Energy Model - Installation [A5]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Height Nominal
- 420 mm
- [Us] Rated Supply Voltage
- 500...690 V500...690 V - 15...10 %
- Maximum Acceleration Under Shock Impact (During Operation)
- 150 m/s² at 11 ms
- Maximum Acceleration Under Shock Load (During Transport)
- 150 m/s² at 11 ms
- Maximum Acceleration Under Vibratory Load (During Storage)
- 10 m/s² at 13...200 Hz
- Maximum Deflection Under Vibratory Load (During Operation)
- 1.5 mm at 2...13 Hz
- Maximum Deflection Under Vibratory Load (During Transport)
- 1.5 mm at 2...13 Hz
- Permitted Relative Humidity (During Storage)
- class 1K5 according to EN 60721-3
- Supporting Protocol For As-interface Safety At Work
- false
- Supporting Protocol For Ethernet/Ip
- true
- Supporting Protocol For Tcp/Ip
- true
- With Safety Function Safe Direction (Sdi)
- false
- With Safety Function Safe Position (Sp)
- false
- With Safety Function Safe Stop 1 (Ss1)
- true
- With Safety Function Safely Limited Position (Slp)
- false
- With Sft Fct Safe Stop 2 (Ss2)
- false
- Package Weight(Lbs)
- 31.0 kg
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, System Integrator
Connector Type2 RJ45, 1 RJ45
Electromagnetic Compatibilityelectrostatic discharge immunity test level 3 conforming to IEC 61000-4-2radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3, electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-41.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6
Encoder Protocol1 Vpp, EnDat 2.2, resolver, RS 422, SSI 24V, SSI 5V, TTL/HTL
Linearity ErrorAI1, AI2, AI3 +/- 0.15 % of maximum value analog input, AQ1, AQ2 +/- 0.2 % analog output
Noise Level86/188/EEC, 58 dB
Protection Typesafe torque off drivemotor phase break drive, thermal protection motor, safe torque off motor, motor phase break motor, thermal protection drive, overheating drive, overcurrent between output phases and earth drive, overload of output voltage drive, short-circuit protection drive, overvoltages on the DC bus drive, line supply overvoltage drive, line supply undervoltage drive, line supply phase loss drive, overspeed drive, break on the control circuit drive
Synchronous Motor Control Profilepermanent magnet motor, synchronous reluctance motor
Certificate AgencyTÃœV, UL, CSA
Environmental Class (During Operation)class 3C3 according to IEC 60721-3-3, class 3S3 according to IEC 60721-3-3
Environmental Class (During Transport)class 2C3 according to EN 60721-3-2, class 2S1 according to EN 60721-3-2
Carbon Footprint Of The End-of-life Phase [C1 To C4]56.94408762736743, 57 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]337 kg CO2 eq., 337.28024686035957
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Field Service DivisionIDIBS
Average Percentage Of Asi Certified Metals100 %
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1704001EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1923
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsYES_SSI2Yes
Tier Id2
Function Option IdADVANCED
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
4 Quadrant Operation Possibletrue
Application In Domestic And Commercial Area Permittedfalse
Average Percentage Of Recycled Plastic Content2 %
Base Load Current At Low Overload3.1 A
Computer Porttrue
Device ApplicationIndustrial Application
Housing Materialsheet steel
MarkingCE
Maximum Input Current Per Phase3.6 A
Motor Power Kw1.5 kW normal duty1.1 kW heavy duty
Network Frequency50-60 Hz
Number Of Addresses1-2471-247 Modbus serial
Number Of Hw Interfaces Serial Rs4851
Operating Element Presenttrue
Optical Interface Presentfalse
Phase3 phase
Power Loss Per Device Current Dependent111.0 W
Product AvailabilityStock - Normally stocked in distribution facility
Product Specific Applicationprocess for industrial
Quantity Per Set1
Refresh Timerelay output R1, R2, R3)5 ms +/- 0.5 ms)
Relative Symmetric Mains Voltage Tolerance10 %
ReturnabilityYes
Supporting Protocol For Asifalse
Supporting Protocol For Cantrue
Supporting Protocol For Devicenet Safetyfalse
Supporting Protocol For Interbusfalse
Supporting Protocol For Lonfalse
Supporting Protocol For Other Bus Systemsfalse
Supporting Protocol For Profinet Cbatrue
Supporting Protocol For Profisafefalse
Supporting Protocol For Sercosfalse
Sustainable PackagingNo
Total Lifecycle Carbon Footprint2 981 kg CO2 eq.
Type Of Polarizationno impedanceno impedance Modbus serial
Volume Of Cooling Air330 m3/h
With Safety Function Safe Programmable Logicfalse
Pep CodeENVPEP1704001EN
Pep Verification Date2024-11-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]India, IN
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; Europe, EU-27
Recyclability Potential In %84
Width Nominal246 mm
Emc Limit Value (Complied)true
Maximum Acceleration Under Shock Load (During Storage)150 m/s² at 11 ms
Maximum Acceleration Under Vibrational Stress (During Operation)10 m/s² at 13...200 Hz
Maximum Acceleration Under Vibratory Load (During Transport)10 m/s² at 13...200 Hz
Maximum Deflection Under Vibratory Load (During Storage)1.5 mm at 2...13 Hz
Permitted Relative Humidity (During Operation)class 3K5 according to EN 60721-3
Permitted Relative Humidity (During Transport)class 2K5 according to EN 60721-3
Supporting Protocol For Data-highwayfalse
Supporting Protocol For Interbus-safetyfalse
With Safety Function Safe Brake Management (Sbc/Sbt)true
With Safety Function Safe Operating Stop (Sos)false
With Safety Function Safe Speed Monitor (Ssm)false
With Safety Function Safe Torque Off (Sto)true
With Safety Function Safely Limited Speed (Sls)true
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8504404000
Environment Attributes Main
- Ambient Air Temperature For Operation
- -15-50 °C (without derating), -15-50 °C (without derating), -15-60 °C, -15-60 °C, -15-50 °C (without derating), -15-50 °C (without derating)50-60 °C (with derating factor)
- Ambient Air Transport Temperature
- -40-70 °C, -40-70 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 2981.4759832355203
- Environmental Disclosure
- ENVPEP1704001EN
- Ip Degree Of Protection
- IP21
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP1704001EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Operating Altitude<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating1000...4800 m with current derating 1 % per 100 m
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI1704001EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2024-11-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Phase
- 3 phase
- Range Of Product
- Altivar Process ATV900
Product Or Component Typevariable speed drive
ETIM
- ETIM 8
- EC001857
ETIM 9EC001857
Output Attributes
- Analogue Output Type
- software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits, software-configurable current AQ1, AQ2 0...20 mA 500 Ohm 10 bits
- Relay Output Type
- configurable relay logic R1 fault relay NO/NC 100000 cyclesconfigurable relay logic R2 sequence relay NO 1000000 cycles, configurable relay logic R3 sequence relay NO 1000000 cycles
- Continuous Output Current
- 3.1 A 4 kHz normal duty2.4 A 4 kHz heavy duty
- Maximum Output Frequency
- 599 Hz
- Nominal Output Current
- 3.1 A
- Relay Output Number
- 3
Discrete Output Typelogic output DQ+ 0-1 kHz <= 30 V DC 100 mAprogrammable as pulse output DQ+ 0-30 kHz <= 30 V DC 20 mA, logic output DQ- 0-1 kHz <= 30 V DC 100 mA
Analogue Output Number2
Discrete Output Number2
Maximum Output Voltage690.0 V
Nominal Output Power2.2 W
Surge Protection And Filtering Attributes
- Emc Filter
- integrated, with EMC plate option
Input Attributes
- Analogue Input Type
- AI1, AI2, AI3 software-configurable voltage 0...10 V DC 30 kOhm 12 bits, AI1, AI2, AI3 software-configurable current 0...20 mA/4...20 mA 250 Ohm 12 bits
- Input Compatibility
- DI1...DI8 discrete input level 1 PLC IEC 61131-2, DI7, DI8 pulse input level 1 PLC IEC 65A-68, STOA, STOB discrete input level 1 PLC IEC 61131-2
- Discrete Input Logic
- 16 preset speeds
- Number Of Input Phases
- 3
Discrete Input TypeDI1...DI8 programmable, 24 V DC <= 30 V)3.5 kOhm, DI7, DI8 programmable as pulse input 0-30 kHz, 24 V DC <= 30 V), STOA, STOB safe torque off, 24 V DC <= 30 V)> 2.2 kOhm
Analogue Input Number3
Discrete Input Number10
Batteries & Runtime Attributes
- Removable Battery
- Yes
Loading video…
Similar Products
Loading carousel layout...
Loading carousel layout...
CAD
$1916.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
CAD$1916.20/ EA
Loading add to cart quantity...
