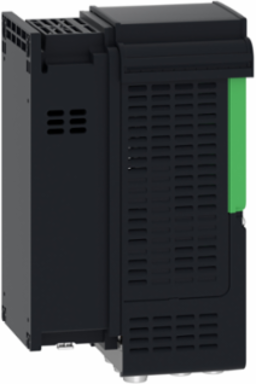

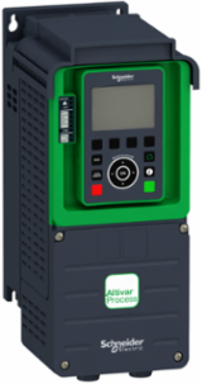

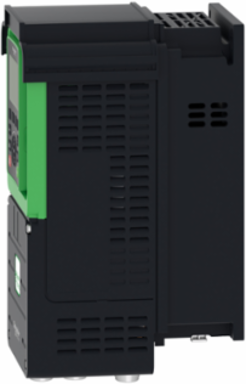

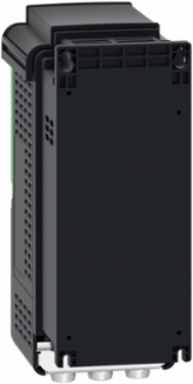

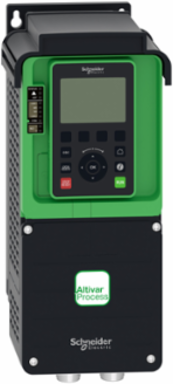

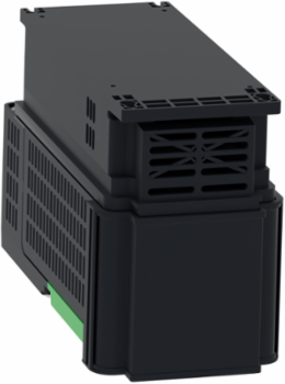

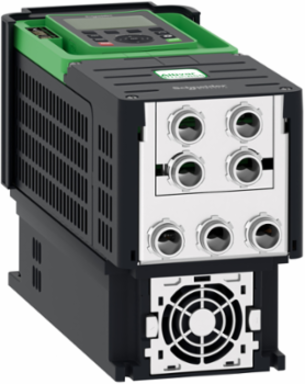

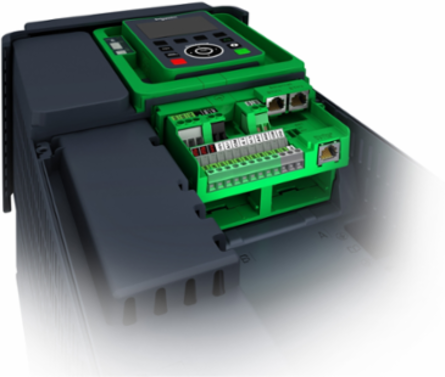

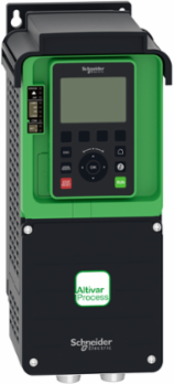

Schneider Electric ATV930U30M3 Altivar Process VSD 3kW 200-240V with Braking Unit IP21
- MPN: ATV930U30M3
- PPN: SCH-ATV930U30M3
CAD
$1741.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This Altivar Process ATV900 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It is suitable for motors with power rating up to 3kW/-HP for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 2.2kW/3HP for applications requiring significant overload (up to 150%). It works at a rated supply voltage from 200Vac to 240Vac. This variable speed / frequency drive (VSD / VFD) is specifically designed for industrial processes. In the following market segments: oil and gas, mining, minerals and metals, food and beverage water and wastewater. It offers high motor performance on any motor and total control of any kind of coupling in master/slave applications. Network services help ensure operation continuity even in case of connection breakdown. Web server and data logging help reduce downtime through fast troubleshooting and preventive maintenance. Its advanced connectivity, including EtherNet/IP and Modbus TCP, allows deep integration into automation architectures.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Indonesia, United States

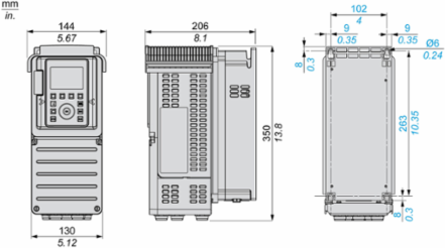

Depth206 mm
Communications & Management Attributes
- Communication Port Protocol
- Modbus serial, Modbus TCP, EtherNet/IP
Complementary Attributes
- Maximum Switching Current
- relay output R1 inductive, cos phi = 0.4 7 ms 2 A 30 V DC, relay output R2, R3 resistive, cos phi = 1 5 A 30 V DC, relay output R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V AC, relay output R2, R3 inductive, cos phi = 0.4 7 ms 2 A 30 V DCrelay output R1 resistive, cos phi = 1 3 A 250 V AC, relay output R1 resistive, cos phi = 1 3 A 30 V DC, relay output R1 inductive, cos phi = 0.4 7 ms 2 A 250 V AC, relay output R2, R3 resistive, cos phi = 1 5 A 250 V AC
- Maximum Transient Current
- 16.4 A 60 s normal duty), 16.8 A 60 s heavy duty)
- Maximum Associated Fuse Rating
- 20.0 A
- Maximum Output Frequency
- 599 Hz
- Minimum Switching Current
- relay output R1, R2, R3 5 mA 24 V DC
Maximum Thdi<48 % full load IEC 61000-3-12, <48 % full load IEC 61000-3-12, <48 % full load IEC 61000-3-12, <48 % full load IEC 61000-3-12, <48 % full load IEC 61000-3-12, <48 % full load IEC 61000-3-12
Brake Chopper Integratedtrue
Maximum Input Current Per Phase11.5 A
Maximum Output Voltage240.0 V
Important Information Attributes
- Product Contributes To Saved And Avoided Emissions
- YES_SSI2, Yes
- Persona Type Names
- End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, System Integrator
- Asynchronous Motor Control Profile
- constant torque standard, variable torque standard, optimized torque mode
- Data Format
- 8 bits, configurable odd, even or no parity Modbus serial, 8 bits, configurable odd, even or no parity
- Emc Filter
- integrated, with EMC plate option
- Line Current
- 11.5 A 200 V normal duty), 8.7 A 200 V heavy duty), 9.9 A 240 V normal duty), 7.6 A 240 V heavy duty)
- Motor Power Kw
- 3.0 kW normal duty, 2.2 kW heavy duty
- Noise Level
- 54.5 dB 86/188/EEC, 54.5 dB
- Power Dissipation In W
- natural convection 34 W 200 V 4 kHz, forced convection 104 W 200 V 4 kHz
- Protection Type
- safe torque off drive, motor phase break drivethermal protection motor, safe torque off motor, motor phase break motor, thermal protection drive, overheating drive, overcurrent between output phases and earth drive, overload of output voltage drive, short-circuit protection drive, overvoltages on the DC bus drive, line supply overvoltage drive, line supply undervoltage drive, line supply phase loss drive, overspeed drive, break on the control circuit drive
- Switching Frequency
- 2...16 kHz adjustable, 4...16 kHz with derating factor
- Transmission Rate
- 10/100 Mbit/s Ethernet IP/Modbus TCP, 4.8, 9.6, 19.2, 38.4 kbit/s Modbus serial, 10, 100 Mbits, 4.8 kbps, 9600 bit/s, 19200 bit/s
- Certificate Agency
- CSA, TÃœV, UL
- [Us] Rated Supply Voltage
- 200...240 V, 200...240 V - 15...10 %
- Environmental Class (During Storage)
- class 1C3 according to EN 60721-3-1, class 1S2 according to EN 60721-3-1
- Carbon Footprint Of The Distribution Phase [A4]
- 1.0870677811789156, 1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 3 kg CO2 eq., 3.390891788642316
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 1 926 kg CO2 eq., 1926.2265800976004
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- N
- Device Type
- Variable speed drive - VSD Compacts
- Traceability
- Yes
- Average Life Duration
- 10 year(s)
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2510024EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1923
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Dangerous Goods Code
- LITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
- Tier
- 2
- Function Option
- Advanced
- Market Segmentation
- Industrial
- 1 Phase Low Current Possible
- false
- Application In Domestic And Commercial Area Permitted
- false
- Base Load Current At High Overload
- 11.2 A
- Braking To Standstill
- by DC injection
- Design Of Frequency Changer
- U converter
- Exchange Mode
- half duplex, full duplex, autonegotiation Ethernet IP/Modbus TCP
- Isolation
- between power and control terminals
- Maximum Associated Fuse Rating
- 20.0 A
- Method Of Access
- slave Modbus TCP
- Network Frequency
- 50-60 Hz
- Number Of Hw Interfaces Industrial Ethernet
- 2
- Number Of Output Phases
- 3
- Operating Position
- vertical +/- 10 degree
- Overvoltage Category
- III
- Power Loss Per Device Current Dependent
- 151.0 W
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Specific Application
- process for industrial
- Quantity Per Set
- 1
- Refresh Time
- relay output R1, R2, R3)5 ms +/- 0.5 ms)
- Relative Symmetric Mains Voltage Tolerance
- 10 %
- Returnability
- Yes
- Supporting Protocol For Asi
- false
- Supporting Protocol For Can
- true
- Supporting Protocol For Devicenet Safety
- false
- Supporting Protocol For Interbus
- false
- Supporting Protocol For Lon
- false
- Supporting Protocol For Other Bus Systems
- false
- Supporting Protocol For Profinet Cba
- true
- Supporting Protocol For Profisafe
- false
- Supporting Protocol For Sercos
- false
- Sustainable Packaging
- Yes
- Transmission Frame
- RTU
- Volume Of Cooling Air
- 38 m3/h
- With Safety Function Safe Programmable Logic
- false
- Pep Code
- ENVPEP2510024EN
- Pep Verification Date
- 2025-11-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; Indonesia, ID
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; Europe, EU-27
- Recyclability Potential, In %
- 77
- Width Nominal
- 144 mm
- Maximum Acceleration Under Shock Impact (During Operation)
- 150 m/s² at 11 ms
- Maximum Acceleration Under Shock Load (During Transport)
- 150 m/s² at 11 ms
- Maximum Acceleration Under Vibratory Load (During Storage)
- 10 m/s² at 13...200 Hz
- Maximum Deflection Under Vibratory Load (During Operation)
- 1.5 mm at 2...13 Hz
- Maximum Deflection Under Vibratory Load (During Transport)
- 1.5 mm at 2...13 Hz
- Permitted Relative Humidity (During Storage)
- class 1K5 according to EN 60721-3
- Supporting Protocol For As-interface Safety At Work
- false
- Supporting Protocol For Ethernet/Ip
- true
- Supporting Protocol For Tcp/Ip
- true
- With Safety Function Safe Direction (Sdi)
- false
- With Safety Function Safe Position (Sp)
- false
- With Safety Function Safe Stop 1 (Ss1)
- true
- With Safety Function Safely Limited Position (Slp)
- false
- With Sft Fct Safe Stop 2 (Ss2)
- false
- Package Weight(Lbs)
- 6.024 kg
- Warranty (In Months)
- 18
Persona Type IdsEU, OM, OM8, SI
Apparent Power4.1 kVA 240 V normal duty), 3.2 kVA 240 V heavy duty)
Connector Type2 RJ45, 1 RJ45
Electromagnetic Compatibilityelectrostatic discharge immunity test level 3 conforming to IEC 61000-4-2, radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3, electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4, 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5, conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6
Encoder Protocol1 Vpp, EnDat 2.2, resolver, RS 422, SSI 24V, SSI 5V, TTL/HTL
Linearity ErrorAI1, AI2, AI3 +/- 0.15 % of maximum value analog input, AQ1, AQ2 +/- 0.2 % analog output
Motor Slip Compensationautomatic whatever the load, adjustable, not available in permanent magnet motor law, can be suppressed
Number Of Addresses1-247, 1-247 Modbus serial
Product Destinationasynchronous motors, synchronous motors
Sampling Duration2 ms +/- 0.5 ms DI1...DI8) - discrete input, 5 ms +/- 1 ms DI7, DI8) - pulse input, 1 ms +/- 1 ms AI1, AI2, AI3) - analog input, 5 ms +/- 1 ms AQ1, AQ2) - analog output
Synchronous Motor Control Profilepermanent magnet motor, synchronous reluctance motor
Type Of Polarizationno impedance, no impedance Modbus serial
[Ue] Rated Operational Voltage200...240 V 3.0 kW normal duty, 200...240 V 2.2 kW 3 hp heavy duty
Environmental Class (During Operation)class 3C3 according to IEC 60721-3-3, class 3S3 according to IEC 60721-3-3
Environmental Class (During Transport)class 2C3 according to EN 60721-3-2, class 2S1 according to EN 60721-3-2
Carbon Footprint Of The End-of-life Phase [C1 To C4]6.220317674678752, 6 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]83 kg CO2 eq., 82.6617561876918
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Field Service DivisionIDIBS
Weee ApplicabilityFinished product
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id2
Function Option IdADVANCED
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
4 Quadrant Operation Possibletrue
Assembly Styleenclosed
Base Load Current At Low Overload13.7 A
Computer Porttrue
Device ApplicationIndustrial Application
Housing Materialplastic
MarkingCE
Maximum Input Current Per Phase11.5 A
Mounting Modewall mount
Nominal Switching Frequency4 kHz
Number Of Hw Interfaces Serial Rs4851
Operating Element Presenttrue
Optical Interface Presentfalse
Phase3 phase
Power Loss Static Current Independent13.0 W
Product Or Component Typevariable speed drive
Prospective Line Isc50 kA
Range Of ProductAltivar Process ATV900
Regulation Loopadjustable PID regulator
Relative Symmetric Network Frequency Tolerance5 %
Software Versionv6.2.5-6
Supporting Protocol For Bacnetfalse
Supporting Protocol For Devicenetfalse
Supporting Protocol For Foundation Fieldbusfalse
Supporting Protocol For Knxfalse
Supporting Protocol For Modbustrue
Supporting Protocol For Profibustrue
Supporting Protocol For Profinet Iotrue
Supporting Protocol For Safetybus Pfalse
Supporting Protocol For Suconetfalse
Total Lifecycle Carbon Footprint2 020 kg CO2 eq.
UpdatabilityUpgradeable through digital modules
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Application In Industrial Area Permittedtrue
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionTo adapt the speed and torque of synchronous, asynchronous or reluctance motor to the machine's operating point for 5,5 kW for heavy duty electric motors for fluid management and industrial applications in IP21/UL type 1 conditions, at 380V to 480V rated 3-phases voltage supply. Calculation of the environmental impacts is based on 10 years of product service lifetime. The usage profile taken into account is 20% uptime in full phase, 30% uptime in medium phase, 40% uptime in low phase and 10% uptime in "standby" phase (equating it with standstill phase) of the 5000h operating time and 1000h of standby according to the "Electric Motor, VSD and PDS use phase GHG Emissions - CEMEP guideline: Duty profile for general Purpose Machinery_V1".
Functional-unit Unitunit
Energy Consumption On Product Lifetime, In Kwh4765.55
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal350 mm
Emc Limit Value (Complied)false
Maximum Acceleration Under Shock Load (During Storage)150 m/s² at 11 ms
Maximum Acceleration Under Vibrational Stress (During Operation)10 m/s² at 13...200 Hz
Maximum Acceleration Under Vibratory Load (During Transport)10 m/s² at 13...200 Hz
Maximum Deflection Under Vibratory Load (During Storage)1.5 mm at 2...13 Hz
Permitted Relative Humidity (During Operation)class 3K5 according to EN 60721-3
Permitted Relative Humidity (During Transport)class 2K5 according to EN 60721-3
Supporting Protocol For Data-highwayfalse
Supporting Protocol For Interbus-safetyfalse
With Safety Function Safe Brake Management (Sbc/Sbt)true
With Safety Function Safe Operating Stop (Sos)false
With Safety Function Safe Speed Monitor (Ssm)false
With Safety Function Safe Torque Off (Sto)true
With Safety Function Safely Limited Speed (Sls)true
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Ambient Air Temperature For Operation
- -15-50 °C (without derating), -15-50 °C (without derating), -15-60 °C, -15-60 °C, -15-50 °C (without derating), -15-50 °C (without derating), 50-60 °C (with derating factor)
- Ambient Air Transport Temperature
- -40-70 °C, -40-70 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 2019.586613529792
- Environmental Disclosure
- ENVPEP2510024EN
- Ip Degree Of Protection
- IP21
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2510024EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Operating Altitude<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, 1000...4800 m with current derating 1 % per 100 m
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2510024EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-11-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Phase
- 3 phase
- Range Of Product
- Altivar Process ATV900
Product Or Component Typevariable speed drive
ETIM
- ETIM 8
- EC001857
ETIM 9EC001857
Output Attributes
- Analogue Output Type
- software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits, software-configurable current AQ1, AQ2 0...20 mA 500 Ohm 10 bits
- Discrete Output Type
- logic output DQ+ 0-1 kHz <= 30 V DC 100 mA, programmable as pulse output DQ+ 0-30 kHz <= 30 V DC 20 mA, logic output DQ- 0-1 kHz <= 30 V DC 100 mA
- Analogue Output Number
- 2
- Maximum Output Frequency
- 599 Hz
- Nominal Output Current
- 13.7 A
- Relay Output Number
- 3
Continuous Output Current13.7 A 4 kHz normal duty, 11.2 A 4 kHz heavy duty
Relay Output Typeconfigurable relay logic R1 fault relay NO/NC 100000 cycles, configurable relay logic R2 sequence relay NO 1000000 cycles, configurable relay logic R3 sequence relay NO 1000000 cycles
Discrete Output Number2
Maximum Output Voltage240.0 V
Nominal Output Power3.0 W
Surge Protection And Filtering Attributes
- Emc Filter
- integrated, with EMC plate option
Input Attributes
- Analogue Input Type
- AI1, AI2, AI3 software-configurable voltage 0...10 V DC 30 kOhm 12 bits, AI1, AI2, AI3 software-configurable current 0...20 mA/4...20 mA 250 Ohm 12 bits
- Input Compatibility
- DI1...DI8 discrete input level 1 PLC IEC 61131-2, DI7, DI8 pulse input level 1 PLC IEC 65A-68, STOA, STOB discrete input level 1 PLC IEC 61131-2
- Discrete Input Logic
- 16 preset speeds
- Number Of Input Phases
- 3
Discrete Input TypeDI1...DI8 programmable, 24 V DC <= 30 V)3.5 kOhm, DI7, DI8 programmable as pulse input 0-30 kHz, 24 V DC <= 30 V), STOA, STOB safe torque off, 24 V DC <= 30 V)> 2.2 kOhm
Analogue Input Number3
Discrete Input Number10
Batteries & Runtime Attributes
- Removable Battery
- Yes
Loading video…
Accessories
Loading carousel layout...
Loading carousel layout...
Similar Products
Loading carousel layout...
Loading carousel layout...
CAD
$1741.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
CAD$1741.42/ EA
Loading add to cart quantity...
