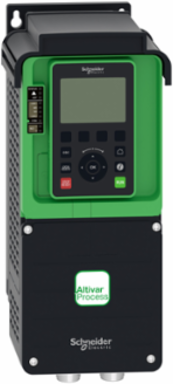

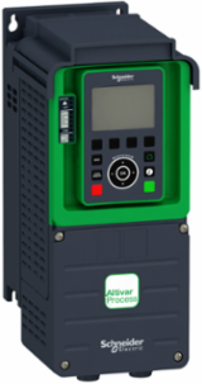

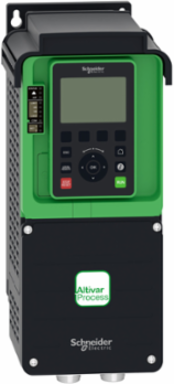

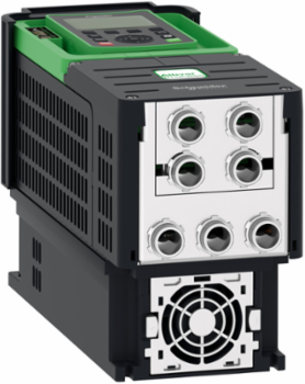

Schneider Electric ATV930U07N4 Variable Speed Drive, 0.75 kW, 400-480V, IP21, Integrated Braking Unit

MPN: ATV930U07N4
PPN: SCH-ATV930U07N4
UNSPSC: 39122001

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$1254.40

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

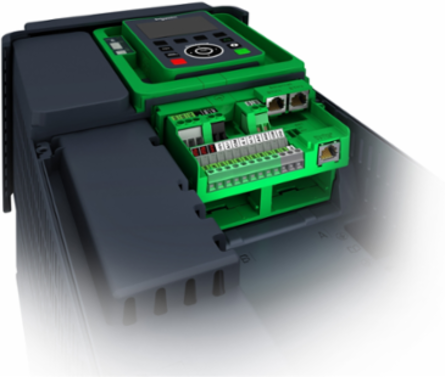

This Altivar Process ATV900 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It is suitable for motors with power rating up to 0.75kW/1hp for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 0.37kW/0.5hp for applications requiring significant overload (up to 150%). It works at a rated supply voltage from 380V to 480V AC. This variable speed / frequency drive (VSD / VFD) is specifically designed for industrial processes. In the following market segments, oil and gas, mining, minerals and metals, food and beverage water and wastewater. It offers high motor performance on any motor and total control of any kind of coupling in master/slave applications. Network services help ensure operation continuity even in case of connection breakdown. Web server and data logging help reduce downtime through fast troubleshooting and preventive maintenance. Its advanced connectivity, including EtherNet/IP and Modbus TCP, allows deep integration into automation architectures. It is designed to be mounted in vertical position (+/- 10 °) on a wall.

Features

Embedded power measurement and energy dashboard
Embedded process monitoring and control
Stop and Go function to reduce energy consumption
Asset monitoring and protection
Drift monitoring
Easy maintenance via a dynamic QR code
Proven technical cooling and harmonics solutions
Modular and compact design
Easy grid integration

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Indonesia

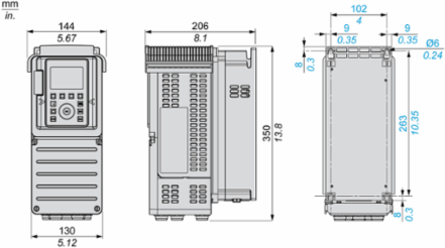

Depth	206 mm

Weight	5717 g

Communications & Management Attributes

Communication Port Protocol	Modbus TCP, EtherNet/IP, Modbus serial

Complementary Attributes

Maximum Thdi	<48 % full load IEC 61000-3-12, <48 % full load IEC 61000-3-12, <48 % full load IEC 61000-3-12, <48 % full load IEC 61000-3-12, <48 % full load IEC 61000-3-12, <48 % full load IEC 61000-3-12
Brake Chopper Integrated	true
Maximum Input Current Per Phase	1.5 A
Maximum Output Voltage	480.0 V
Maximum Transient Current	2.6 A 60 s normal duty)2.3 A 60 s heavy duty)
Us Rated Supply Voltage	380...480 V380...480 V - 15...10 %
Maximum Acceleration Under Shock Load During Storage	150 m/s² at 11 ms
Maximum Acceleration Under Vibrational Stress During Operation	10 m/s² at 13...200 Hz
Maximum Acceleration Under Vibratory Load During Transport	10 m/s² at 13...200 Hz
Maximum Deflection Under Vibratory Load During Storage	1.5 mm at 2...13 Hz

Ue Rated Operational Voltage	380...480 V 0.75 kW 1 hp normal duty, 380...480 V 0.37 kW 0.5 hp heavy duty
Maximum Associated Fuse Rating	4.0 A
Maximum Output Frequency	599 Hz
Maximum Switching Current	relay output R1 inductive, cos phi = 0.4 7 ms 2 A 30 V DCrelay output R2, R3 resistive, cos phi = 1 5 A 30 V DCrelay output R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V ACrelay output R2, R3 inductive, cos phi = 0.4 7 ms 2 A 30 V DCrelay output R1 resistive, cos phi = 1 3 A 250 V ACrelay output R1 resistive, cos phi = 1 3 A 30 V DCrelay output R1 inductive, cos phi = 0.4 7 ms 2 A 250 V ACrelay output R2, R3 resistive, cos phi = 1 5 A 250 V AC
Minimum Switching Current	relay output R1, R2, R3 5 mA 24 V DC
Maximum Acceleration Under Shock Impact During Operation	150 m/s² at 11 ms
Maximum Acceleration Under Shock Load During Transport	150 m/s² at 11 ms
Maximum Acceleration Under Vibratory Load During Storage	10 m/s² at 13...200 Hz
Maximum Deflection Under Vibratory Load During Operation	1.5 mm at 2...13 Hz
Maximum Deflection Under Vibratory Load During Transport	1.5 mm at 2...13 Hz

Important Information Attributes

Persona Type Ids	EU, OM, OM8, SI
Asynchronous Motor Control Profile	constant torque standard, optimized torque mode, variable torque standard
Data Format	Modbus serial, 8 bits, configurable odd, even or no parity
Emc Filter	integrated, with EMC plate option
Line Current	1.5 A 380 V normal duty)0.9 A 380 V heavy duty)1.3 A 480 V normal duty), 0.8 A 480 V heavy duty)
Motor Slip Compensation	not available in permanent magnet motor law, can be suppressed, automatic whatever the load, adjustable
Product Destination	asynchronous motors, synchronous motors
Sampling Duration	2 ms +/- 0.5 ms DI1...DI8) - discrete input5 ms +/- 1 ms DI7, DI8) - pulse input, 1 ms +/- 1 ms AI1, AI2, AI3) - analog input5 ms +/- 1 ms AQ1, AQ2) - analog output
Transmission Rate	10/100 Mbit/s Ethernet IP/Modbus TCP4.8, 9.6, 19.2, 38.4 kbit/s Modbus serial, 10, 100 Mbits, 4.8 kbps, 9600 bit/s, 19200 bit/s
Environmental Class During Storage	class 1C3 according to EN 60721-3-1, class 1S2 according to EN 60721-3-1
Carbon Footprint Of The Distribution Phase A4	1.0483749164979521, 1 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	3 kg CO2 eq., 3.2701970910371325
Carbon Footprint Of The Use Phase B2 B3 B4 B6	867 kg CO2 eq., 867.4496886083369
Local Publishable Date	2026-01-12
Device Type	Variable speed drive - VSD Compacts
Traceability	Yes
Average Life Duration	10 year(s)
Weee Applicability	Finished product
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	Yes
Dangerous Goods Code	LITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
Tier	1
Function Option	Advanced
Market Segmentation	Industrial
1 Phase Low Current Possible	false
Apparent Power	1.1 kVA 480 V normal duty)0.7 kVA 480 V heavy duty)
Assembly Style	enclosed
Base Load Current At High Overload	1.5 A
Braking To Standstill	by DC injection
Design Of Frequency Changer	U converter
Exchange Mode	half duplex, full duplex, autonegotiation Ethernet IP/Modbus TCP
Isolation	between power and control terminals
Method Of Access	slave Modbus TCP
Mounting Mode	wall mount
Nominal Switching Frequency	4 kHz
Number Of Hw Interfaces Industrial Ethernet	2
Number Of Output Phases	3
Operating Position	vertical +/- 10 degree
Overvoltage Category	III
Power Dissipation In W	natural convection 26 W 380 V 4 kHzforced convection 21 W 380 V 4 kHz
Power Loss Static Current Independent	14.0 W
Product Or Component Type	variable speed drive
Prospective Line Isc	50 kA
Range Of Product	Altivar Process ATV900
Regulation Loop	adjustable PID regulator
Relative Symmetric Network Frequency Tolerance	5 %
Software Version	v6.2.5-6
Supporting Protocol For Bacnet	false
Supporting Protocol For Devicenet	false
Supporting Protocol For Foundation Fieldbus	false
Supporting Protocol For Knx	false
Supporting Protocol For Modbus	true
Supporting Protocol For Profibus	true
Supporting Protocol For Profinet Io	true
Supporting Protocol For Safetybus P	false
Supporting Protocol For Suconet	false
Switching Frequency	2...16 kHz adjustable4...16 kHz with derating factor
Transmission Frame	RTU
Updatability	Upgradeable through digital modules
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Application In Industrial Area Permitted	true
Data Source	extrapolated product
Width Nominal	144 mm
Supporting Protocol For Tcp/Ip	true
Customs Code	8504404000
Permitted Relative Humidity During Transport	class 2K5 according to EN 60721-3
Supporting Protocol For Data Highway	false
With Safety Function Safe Brake Management Sbc/Sbt	true
With Safety Function Safe Operating Stop Sos	false
With Safety Function Safe Speed Monitor Ssm	false
With Safety Function Safe Torque Off Sto	true
With Safety Function Safely Limited Speed Sls	true
Warranty In Months	18
Functional Unit Description	To adapt the speed and torque of synchronous, asynchronous or reluctance motor to the machine's operating point for 5,5 kW for heavy duty electric motors for fluid management and industrial applications in IP21/UL type 1 conditions, at 380V to 480V rated 3-phases voltage supply. Calculation of the environmental impacts is based on 10 years of product service lifetime. The usage profile taken into account is 20% uptime in full phase, 30% uptime in medium phase, 40% uptime in low phase and 10% uptime in "standby" phase (equating it with standstill phase) of the 5000h operating time and 1000h of standby according to the "Electric Motor, VSD and PDS use phase GHG Emissions - CEMEP guideline: Duty profile for general Purpose Machinery_V1".
Functional Unit Unit	unit
Energy Consumption On Product Lifetime In Kwh	2146.1

Persona Type Names	End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, System Integrator
Connector Type	2 RJ45, 1 RJ45
Electromagnetic Compatibility	electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3, electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-41.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6
Encoder Protocol	1 Vpp, EnDat 2.2, resolver, RS 422, SSI 24V, SSI 5V, TTL/HTL
Linearity Error	AI1, AI2, AI3 +/- 0.15 % of maximum value analog input, AQ1, AQ2 +/- 0.2 % analog output
Noise Level	86/188/EEC, 54.5 dB
Protection Type	safe torque off drivemotor phase break drive, thermal protection motor, safe torque off motor, motor phase break motor, thermal protection drive, overheating drive, overcurrent between output phases and earth drive, overload of output voltage drive, short-circuit protection drive, overvoltages on the DC bus drive, line supply overvoltage drive, line supply undervoltage drive, line supply phase loss drive, overspeed drive, break on the control circuit drive
Synchronous Motor Control Profile	permanent magnet motor, synchronous reluctance motor
Certificate Agency	CSA, UL, TÜV
Environmental Class During Transport	class 2C3 according to EN 60721-3-2, class 2S1 according to EN 60721-3-2
Carbon Footprint Of The End Of Life Phase C1 To C4	5.998912980117818, 6 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A3	80 kg CO2 eq., 79.71951081731343
Local Data Status	Publishable
Return Indicator	Y
Serviceability	No
Field Service Division	IDIBS
Average Percentage Of Asi Certified Metals	100 %
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2510024EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1923
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	YES_SSI2Yes
Tier Id	1
Function Option Id	ADVANCED
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
4 Quadrant Operation Possible	true
Application In Domestic And Commercial Area Permitted	false
Average Percentage Of Recycled Plastic Content	3 %
Base Load Current At Low Overload	2.2 A
Computer Port	true
Device Application	Industrial Application
Housing Material	plastic
Marking	CE
Motor Power Kw	0.75 kW normal duty0.37 kW heavy duty
Network Frequency	50-60 Hz
Number Of Addresses	1-2471-247 Modbus serial
Number Of Hw Interfaces Serial Rs485	1
Operating Element Present	true
Optical Interface Present	false
Phase	3 phase
Power Loss Per Device Current Dependent	50.0 W
Product Availability	Stock - Normally stocked in distribution facility
Product Specific Application	process for industrial
Quantity Per Set	1
Refresh Time	relay output R1, R2, R3)5 ms +/- 0.5 ms)
Relative Symmetric Mains Voltage Tolerance	10 %
Returnability	Yes
Supporting Protocol For Asi	false
Supporting Protocol For Can	true
Supporting Protocol For Devicenet Safety	false
Supporting Protocol For Interbus	false
Supporting Protocol For Lon	false
Supporting Protocol For Other Bus Systems	false
Supporting Protocol For Profinet Cba	true
Supporting Protocol For Profisafe	false
Supporting Protocol For Sercos	false
Sustainable Packaging	Yes
Total Lifecycle Carbon Footprint	957 kg CO2 eq.
Type Of Polarization	no impedanceno impedance Modbus serial
Volume Of Cooling Air	38 m3/h
With Safety Function Safe Programmable Logic	false
Database Version	2024-01
Height Nominal	350 mm
Supporting Protocol For Ethernet/Ip	true
Nbr. Of Units In Pkg.	1
Emc Limit Value Complied	true
Supporting Protocol For As Interface Safety At Work	false
Supporting Protocol For Interbus Safety	false
With Safety Function Safe Direction Sdi	false
With Safety Function Safe Position Sp	false
With Safety Function Safe Stop 1 Ss1	true
With Safety Function Safely Limited Position Slp	false
With Sft Fct Safe Stop 2 Ss	false
Packaging Weight In G	1431.8
Functional Unit Quantity	1
Reference Lifetime In Y	10
Recyclability Potential In %	77

Environment Attributes Main

Ambient Air Temperature For Operation	-15-50 °C (without derating), -15-50 °C (without derating), -15-60 °C, -15-60 °C, -15-50 °C (without derating), -15-50 °C (without derating)50-60 °C (with derating factor)
Ambient Air Transport Temperature	-40-70 °C, -40-70 °C
Environmental Class During Operation	class 3C3 according to IEC 60721-3-3, class 3S3 according to IEC 60721-3-3
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI2510024EN
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2025-11-01
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
Permitted Relative Humidity During Operation	class 3K5 according to EN 60721-3

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Operating Altitude	<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating1000...4800 m with current derating 1 % per 100 m
Take Back	No
China Rohs Regulation	X
Carbon Footprint	957.4866844133032
Environmental Disclosure	ENVPEP2510024EN
Ip Degree Of Protection	IP21
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP2510024EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review
Permitted Relative Humidity During Storage	class 1K5 according to EN 60721-3

General Attributes

Phase	3 phase
Range Of Product	Altivar Process ATV900

Product Or Component Type	variable speed drive

ETIM

ETIM 8	EC001857
ETIM 10	EC001857

ETIM 9	EC001857

Output Attributes

Analogue Output Type	software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits, software-configurable current AQ1, AQ2 0...20 mA 500 Ohm 10 bits
Relay Output Type	configurable relay logic R1 fault relay NO/NC 100000 cyclesconfigurable relay logic R2 sequence relay NO 1000000 cycles, configurable relay logic R3 sequence relay NO 1000000 cycles
Continuous Output Current	2.2 A 4 kHz normal duty1.5 A 4 kHz heavy duty
Nominal Output Current	2.2 A
Relay Output Number	3

Discrete Output Type	logic output DQ+ 0-1 kHz <= 30 V DC 100 mAprogrammable as pulse output DQ+ 0-30 kHz <= 30 V DC 20 mA, logic output DQ- 0-1 kHz <= 30 V DC 100 mA
Analogue Output Number	2
Discrete Output Number	2
Nominal Output Power	0.75 W

Input Attributes

Analogue Input Type	AI1, AI2, AI3 software-configurable voltage 0...10 V DC 30 kOhm 12 bits, AI1, AI2, AI3 software-configurable current 0...20 mA/4...20 mA 250 Ohm 12 bits
Input Compatibility	DI1...DI8 discrete input level 1 PLC IEC 61131-2, DI7, DI8 pulse input level 1 PLC IEC 65A-68, STOA, STOB discrete input level 1 PLC IEC 61131-2
Discrete Input Logic	16 preset speeds
Number Of Input Phases	3

Discrete Input Type	DI1...DI8 programmable, 24 V DC <= 30 V)3.5 kOhm, DI7, DI8 programmable as pulse input 0-30 kHz, 24 V DC <= 30 V), STOA, STOB safe torque off, 24 V DC <= 30 V)> 2.2 kOhm
Analogue Input Number	3
Discrete Input Number	10
