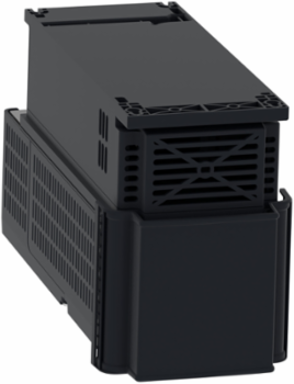

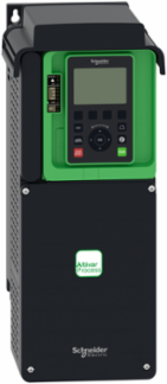

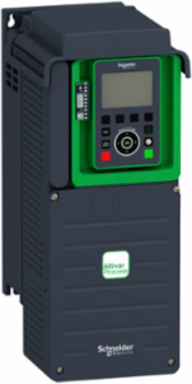

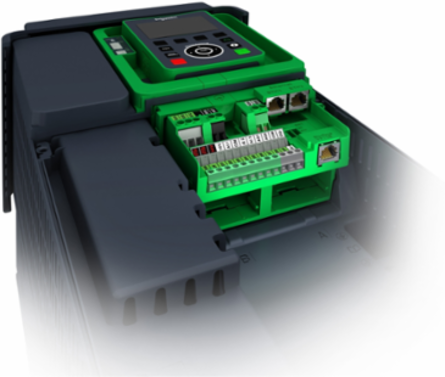

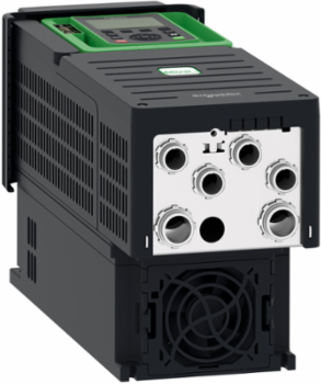

Schneider Electric ATV930U55M3 Altivar Process Variable Speed Drive, 5.5kW, 200-240V, IP21, Braking Unit

  • MPN: ATV930U55M3
  • PPN: SCH-ATV930U55M3
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $2398.66

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This Altivar Process ATV900 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It is suitable for motors with power rating up to 5.5kW/7.5HP for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 4kW/5HP for applications requiring significant overload (up to 150%). It works at a rated supply voltage from 200Vac to 240Vac. This variable speed / frequency drive (VSD / VFD) is specifically designed for industrial processes. In the following market segments, oil and gas, mining, minerals and metals, food and beverage water and wastewater. It offers high motor performance on any motor and total control of any kind of coupling in master/slave applications. Network services help ensure operation continuity even in case of connection breakdown. Web server and data logging help reduce downtime through fast troubleshooting and preventive maintenance. Its advanced connectivity, including EtherNet/IP and Modbus TCP, allows deep integration into automation architectures.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Indonesia

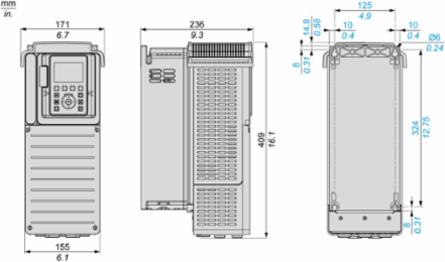

    Depth236 mm

    Communications & Management Attributes

    Communication Port Protocol
    Modbus TCP, EtherNet/IP, Modbus serial

    Complementary Attributes

    Maximum Thdi
    <48 % from 80...100 % of load IEC 61000-3-12, <48 % from 80...100 % of load IEC 61000-3-12, <48 % from 80...100 % of load IEC 61000-3-12, <48 % from 80...100 % of load IEC 61000-3-12, <48 % from 80...100 % of load IEC 61000-3-12, <48 % from 80...100 % of load IEC 61000-3-12
    Maximum Associated Fuse Rating
    40.0 A
    Maximum Output Frequency
    599 Hz
    Maximum Switching Current
    relay output R1 inductive, cos phi = 0.4 7 ms 2 A 30 V DCrelay output R2, R3 resistive, cos phi = 1 5 A 30 V DCrelay output R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V ACrelay output R2, R3 inductive, cos phi = 0.4 7 ms 2 A 30 V DCrelay output R1 resistive, cos phi = 1 3 A 250 V ACrelay output R1 resistive, cos phi = 1 3 A 30 V DCrelay output R1 inductive, cos phi = 0.4 7 ms 2 A 250 V ACrelay output R2, R3 resistive, cos phi = 1 5 A 250 V AC
    Minimum Switching Current
    relay output R1, R2, R3 5 mA 24 V DC
    Brake Chopper Integratedtrue
    Maximum Input Current Per Phase20.2 A
    Maximum Output Voltage240.0 V
    Maximum Transient Current30.5 A 60 s normal duty)28.1 A 60 s heavy duty)

    Important Information Attributes

    Persona Type Ids
    EU, OM, OM8, SI
    Asynchronous Motor Control Profile
    variable torque standard, constant torque standard, optimized torque mode
    Data Format
    Modbus serial, 8 bits, configurable odd, even or no parity
    Emc Filter
    integrated, with EMC plate option
    Line Current
    20.2 A 200 V normal duty)15.1 A 200 V heavy duty)17.1 A 240 V normal duty), 13.0 A 240 V heavy duty)
    Motor Slip Compensation
    adjustable, automatic whatever the load, can be suppressed, not available in permanent magnet motor law
    Product Destination
    asynchronous motors, synchronous motors
    Sampling Duration
    2 ms +/- 0.5 ms DI1...DI8) - discrete input5 ms +/- 1 ms DI7, DI8) - pulse input, 1 ms +/- 1 ms AI1, AI2, AI3) - analog input5 ms +/- 1 ms AQ1, AQ2) - analog output
    Transmission Rate
    10/100 Mbit/s Ethernet IP/Modbus TCP4.8, 9.6, 19.2, 38.4 kbit/s Modbus serial, 10, 100 Mbits, 4.8 kbps, 9600 bit/s, 19200 bit/s
    [Ue] Rated Operational Voltage
    200...240 V 5.5 kW 7.5 hp normal duty, 200...240 V 4.0 kW 5 hp heavy duty
    Environmental Class (During Storage)
    class 1C3 according to EN 60721-3-1, class 1S2 according to EN 60721-3-1
    Carbon Footprint Of The Distribution Phase [A4]
    1.919422818083622, 2 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]
    5 kg CO2 eq., 5.006372338226195
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
    3 101 kg CO2 eq., 3100.826456662451
    Local Publishable Date
    2026-01-12
    Stocking Flag
    N
    Device Type
    Variable speed drive - VSD Compacts
    Traceability
    Yes
    Average Life Duration
    10 year(s)
    Weee Scope
    In
    Scope Perimeter
    At least in Europe
    End Of Life Doc Ref
    ENVEOLI2510025EN
    Reach Full Compliance Status Id
    CONTAINS_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    1923
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    Yes
    Product Contributes To Saved And Avoided Emissions
    YES_SSI2Yes
    Tier Id
    2
    Function Option Id
    ADVANCED
    Market Segmentation Id
    INDUSTRIAL
    Product Kit Identifier
    N
    4 Quadrant Operation Possible
    true
    Application In Domestic And Commercial Area Permitted
    false
    Base Load Current At High Overload
    18.7 A
    Braking To Standstill
    by DC injection
    Design Of Frequency Changer
    U converter
    Exchange Mode
    half duplex, full duplex, autonegotiation Ethernet IP/Modbus TCP
    Isolation
    between power and control terminals
    Maximum Associated Fuse Rating
    40.0 A
    Method Of Access
    slave Modbus TCP
    Mounting Mode
    wall mount
    Nominal Switching Frequency
    4 kHz
    Number Of Hw Interfaces Industrial Ethernet
    2
    Number Of Output Phases
    3
    Operating Position
    vertical +/- 10 degree
    Overvoltage Category
    III
    Power Dissipation In W
    natural convection 47 W 200 V 4 kHzforced convection 179 W 200 V 4 kHz
    Power Loss Static Current Independent
    16.0 W
    Product Or Component Type
    variable speed drive
    Prospective Line Isc
    50 kA
    Range Of Product
    Altivar Process ATV900
    Regulation Loop
    adjustable PID regulator
    Relative Symmetric Network Frequency Tolerance
    5 %
    Software Version
    v6.2.5-6
    Supporting Protocol For Bacnet
    false
    Supporting Protocol For Devicenet
    false
    Supporting Protocol For Foundation Fieldbus
    false
    Supporting Protocol For Knx
    false
    Supporting Protocol For Modbus
    true
    Supporting Protocol For Profibus
    true
    Supporting Protocol For Profinet Io
    true
    Supporting Protocol For Safetybus P
    false
    Supporting Protocol For Suconet
    false
    Switching Frequency
    2...16 kHz adjustable4...16 kHz with derating factor
    Transmission Frame
    RTU
    Updatability
    Upgradeable through digital modules
    Weee Label
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Application In Industrial Area Permitted
    true
    Database Version
    2024-01
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent external review
    Functional-unit Description
    To adapt the speed and torque of synchronous, asynchronous or reluctance motor to the machine&apos;s operating point for 11 kW for heavy duty electric motors for fluid management and industrial applications in IP21/UL type 1 conditions, at 380V to 480V rated 3-phases voltage supply. Calculation of the environmental impacts is based on 10 years of product service lifetime. The usage profile taken into account is 20% uptime in full phase, 30% uptime in medium phase, 40% uptime in low phase and 10% uptime in &quot;standby&quot; phase (equating it with standstill phase) of the 5000h operating time and 1000h of standby according to the &quot;Electric Motor, VSD and PDS use phase GHG Emissions - CEMEP guideline: Duty profile for general Purpose Machinery_V1&quot;.
    Functional-unit Unit
    unit
    Energy Model - Manufacturing [A1-a3]
    Electricity Mix; Low voltage; 2020; Indonesia, ID
    Energy Model - Use [B6]
    Electricity Mix; Low voltage; 2020; Europe, EU-27
    Recyclability Potential In %
    76
    Width Nominal
    171 mm
    Emc Limit Value (Complied)
    false
    Maximum Acceleration Under Shock Load (During Storage)
    150 m/s² at 11 ms
    Maximum Acceleration Under Vibrational Stress (During Operation)
    10 m/s² at 13...200 Hz
    Maximum Acceleration Under Vibratory Load (During Transport)
    10 m/s² at 13...200 Hz
    Maximum Deflection Under Vibratory Load (During Storage)
    1.5 mm at 2...13 Hz
    Permitted Relative Humidity (During Operation)
    class 3K5 according to EN 60721-3
    Permitted Relative Humidity (During Transport)
    class 2K5 according to EN 60721-3
    Supporting Protocol For Data-highway
    false
    Supporting Protocol For Interbus-safety
    false
    With Safety Function Safe Brake Management (Sbc/Sbt)
    true
    With Safety Function Safe Operating Stop (Sos)
    false
    With Safety Function Safe Speed Monitor (Ssm)
    false
    With Safety Function Safe Torque Off (Sto)
    true
    With Safety Function Safely Limited Speed (Sls)
    true
    Nbr. Of Units In Pkg.
    1
    Take-back
    No
    Customs Code
    8504404000
    Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, System Integrator
    Connector Type2 RJ45, 1 RJ45
    Electromagnetic Compatibilityelectrostatic discharge immunity test level 3 conforming to IEC 61000-4-2radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3, electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-41.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6
    Encoder Protocol1 Vpp, EnDat 2.2, resolver, RS 422, SSI 24V, SSI 5V, TTL/HTL
    Linearity ErrorAI1, AI2, AI3 +/- 0.15 % of maximum value analog input, AQ1, AQ2 +/- 0.2 % analog output
    Noise Level86/188/EEC, 56 dB
    Protection Typesafe torque off drivemotor phase break drive, thermal protection motor, safe torque off motor, motor phase break motor, thermal protection drive, overheating drive, overcurrent between output phases and earth drive, overload of output voltage drive, short-circuit protection drive, overvoltages on the DC bus drive, line supply overvoltage drive, line supply undervoltage drive, line supply phase loss drive, overspeed drive, break on the control circuit drive
    Synchronous Motor Control Profilepermanent magnet motor, synchronous reluctance motor
    Certificate AgencyUL, TÃœV, CSA
    Environmental Class (During Operation)class 3C3 according to IEC 60721-3-3, class 3S3 according to IEC 60721-3-3
    Environmental Class (During Transport)class 2C3 according to EN 60721-3-2, class 2S1 according to EN 60721-3-2
    Carbon Footprint Of The End-of-life Phase [C1 To C4]11.55690885852069, 12 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]126 kg CO2 eq., 126.0677071859775
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy2
    ServiceabilityNo
    Field Service DivisionIDIBS
    Weee ApplicabilityFinished product
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label5
    Without Single Use PlasticYes
    Dangerous Goods CodeLITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
    Tier2
    Function OptionAdvanced
    Market SegmentationIndustrial
    1 Phase Low Current Possiblefalse
    Apparent Power7.6 kVA 240 V normal duty)6 kVA 240 V heavy duty)
    Assembly Styleenclosed
    Base Load Current At Low Overload25.4 A
    Computer Porttrue
    Device ApplicationIndustrial Application
    Housing Materialplastic
    MarkingCE
    Maximum Input Current Per Phase20.2 A
    Motor Power Kw5.5 kW normal duty4.0 kW heavy duty
    Network Frequency50-60 Hz
    Number Of Addresses1-2471-247 Modbus serial
    Number Of Hw Interfaces Serial Rs4851
    Operating Element Presenttrue
    Optical Interface Presentfalse
    Phase3 phase
    Power Loss Per Device Current Dependent255.0 W
    Product AvailabilityStock - Normally stocked in distribution facility
    Product Specific Applicationprocess for industrial
    Quantity Per Set1
    Refresh Timerelay output R1, R2, R3)5 ms +/- 0.5 ms)
    Relative Symmetric Mains Voltage Tolerance10 %
    ReturnabilityYes
    Supporting Protocol For Asifalse
    Supporting Protocol For Cantrue
    Supporting Protocol For Devicenet Safetyfalse
    Supporting Protocol For Interbusfalse
    Supporting Protocol For Lonfalse
    Supporting Protocol For Other Bus Systemsfalse
    Supporting Protocol For Profinet Cbatrue
    Supporting Protocol For Profisafefalse
    Supporting Protocol For Sercosfalse
    Sustainable PackagingYes
    Total Lifecycle Carbon Footprint3 245 kg CO2 eq.
    Type Of Polarizationno impedanceno impedance Modbus serial
    Volume Of Cooling Air103 m3/h
    With Safety Function Safe Programmable Logicfalse
    Pep CodeENVPEP2510025EN
    Pep Verification Date2025-11-01
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime In Y10
    Energy Model - Installation [A5]No energy used
    Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
    Height Nominal409 mm
    [Us] Rated Supply Voltage200...240 V200...240 V - 15...10 %
    Maximum Acceleration Under Shock Impact (During Operation)150 m/s² at 11 ms
    Maximum Acceleration Under Shock Load (During Transport)150 m/s² at 11 ms
    Maximum Acceleration Under Vibratory Load (During Storage)10 m/s² at 13...200 Hz
    Maximum Deflection Under Vibratory Load (During Operation)1.5 mm at 2...13 Hz
    Maximum Deflection Under Vibratory Load (During Transport)1.5 mm at 2...13 Hz
    Permitted Relative Humidity (During Storage)class 1K5 according to EN 60721-3
    Supporting Protocol For As-interface Safety At Workfalse
    Supporting Protocol For Ethernet/Iptrue
    Supporting Protocol For Tcp/Iptrue
    With Safety Function Safe Direction (Sdi)false
    With Safety Function Safe Position (Sp)false
    With Safety Function Safe Stop 1 (Ss1)true
    With Safety Function Safely Limited Position (Slp)false
    With Sft Fct Safe Stop 2 (Ss2)false
    Package Weight(Lbs)10.204 kg
    Warranty (In Months)18

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -15-50 °C (without derating), -15-50 °C (without derating), -15-60 °C, -15-60 °C, -15-50 °C (without derating), -15-50 °C (without derating)50-60 °C (with derating factor)
    Ambient Air Transport Temperature
    -40-70 °C, -40-70 °C
    Take Back
    No
    China Rohs Regulation
    X
    Carbon Footprint
    3245.376867863259
    Environmental Disclosure
    ENVPEP2510025EN
    Ip Degree Of Protection
    IP21
    Packaging Without Single Use Plastic
    Yes
    Pep Code
    ENVPEP2510025EN
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent external review
    Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
    Operating Altitude<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating1000...4800 m with current derating 1 % per 100 m
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Circularity ProfileENVEOLI2510025EN
    Eu Rohs DirectiveCompliant By Exemption
    Packaging Made With Recycled CardboardYes
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep Verification Date2025-11-01
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08

    General Attributes

    Phase
    3 phase
    Range Of Product
    Altivar Process ATV900
    Product Or Component Typevariable speed drive

    ETIM

    ETIM 8
    EC001857
    ETIM 9EC001857

    Output Attributes

    Analogue Output Type
    software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits, software-configurable current AQ1, AQ2 0...20 mA 500 Ohm 10 bits
    Relay Output Type
    configurable relay logic R1 fault relay NO/NC 100000 cyclesconfigurable relay logic R2 sequence relay NO 1000000 cycles, configurable relay logic R3 sequence relay NO 1000000 cycles
    Continuous Output Current
    25.4 A 4 kHz normal duty18.7 A 4 kHz heavy duty
    Maximum Output Frequency
    599 Hz
    Nominal Output Current
    25.4 A
    Relay Output Number
    3
    Discrete Output Typelogic output DQ+ 0-1 kHz <= 30 V DC 100 mAprogrammable as pulse output DQ+ 0-30 kHz <= 30 V DC 20 mA, logic output DQ- 0-1 kHz <= 30 V DC 100 mA
    Analogue Output Number2
    Discrete Output Number2
    Maximum Output Voltage240.0 V
    Nominal Output Power5.5 W

    Surge Protection And Filtering Attributes

    Emc Filter
    integrated, with EMC plate option

    Input Attributes

    Analogue Input Type
    AI1, AI2, AI3 software-configurable voltage 0...10 V DC 30 kOhm 12 bits, AI1, AI2, AI3 software-configurable current 0...20 mA/4...20 mA 250 Ohm 12 bits
    Input Compatibility
    DI1...DI8 discrete input level 1 PLC IEC 61131-2, DI7, DI8 pulse input level 1 PLC IEC 65A-68, STOA, STOB discrete input level 1 PLC IEC 61131-2
    Discrete Input Logic
    16 preset speeds
    Number Of Input Phases
    3
    Discrete Input TypeDI1...DI8 programmable, 24 V DC <= 30 V)3.5 kOhm, DI7, DI8 programmable as pulse input 0-30 kHz, 24 V DC <= 30 V), STOA, STOB safe torque off, 24 V DC <= 30 V)> 2.2 kOhm
    Analogue Input Number3
    Discrete Input Number10

    Batteries & Runtime Attributes

    Removable Battery
    Yes
    Loading video…

    Accessories

    Loading carousel layout...

    Similar Products

    Loading carousel layout...

    CAD$2398.66/ EA

    Loading add to cart quantity...

    banner

    Need assistance?

    We can help! Connect with our Sales Team Today!

    Contact Us
