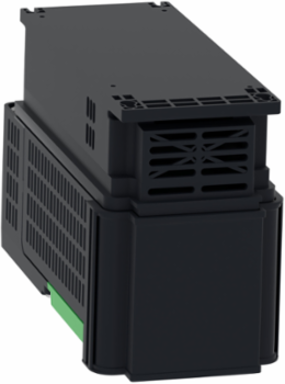

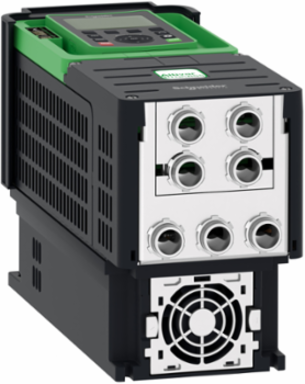

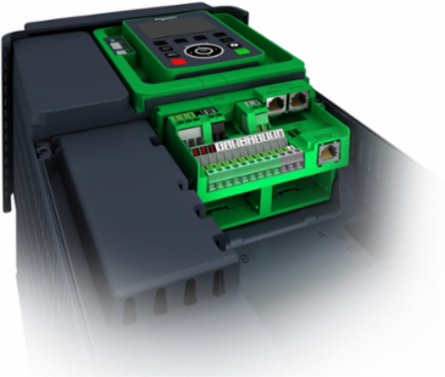

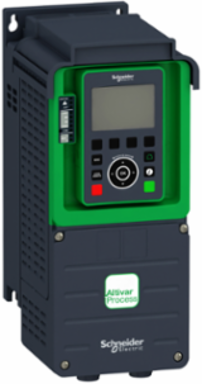

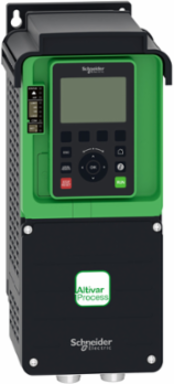

Schneider Electric ATV930U22M3 Altivar Process Variable Speed Drive 2.2kW 200-240V IP21
Schneider Electric ATV930U22M3 Altivar Process Variable Speed Drive 2.2kW 200-240V IP21
- MPN: ATV930U22M3
- PPN: SCH-ATV930U22M3
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$1521.09/ EA
Description
This Altivar Process ATV900 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It is suitable for motors with power rating up to 2.2kW/3HP for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 1.5kW/2HP for applications requiring significant overload (up to 150%). It works at a rated supply voltage from 200Vac to 240Vac. This variable speed / frequency drive (VSD / VFD) is specifically designed for industrial processes. In the following market segments: oil and gas, mining, minerals and metals, food and beverage water and wastewater. It offers high motor performance on any motor and total control of any kind of coupling in master/slave applications. Network services help ensure operation continuity even in case of connection breakdown. Web server and data logging help reduce downtime through fast troubleshooting and preventive maintenance. Its advanced connectivity, including EtherNet/IP and Modbus TCP, allows deep integration into automation architectures.
Specifications
Complementary
- Discrete Input Logic
- positive logic (source) DI1...DI8), < 5 V, > 11 V || negative logic (sink) DI1...DI8), > 16 V, < 10 V || positive logic (source) DI7, DI8), < 0.6 V, > 2.5 V || positive logic (source) STOA, STOB), < 5 V, > 11 V
- Analogue Output Type
- software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits || software-configurable current AQ1, AQ2 0...20 mA 500 Ohm 10 bits
- Maximum Switching Current
- relay output R1 resistive, cos phi = 1 3 A 250 V AC || relay output R1 resistive, cos phi = 1 3 A 30 V DC || relay output R1 inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R1 inductive, cos phi = 0.4 7 ms 2 A 30 V DC || relay output R2, R3 resistive, cos phi = 1 5 A 250 V AC || relay output R2, R3 resistive, cos phi = 1 5 A 30 V DC || relay output R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R2, R3 inductive, cos phi = 0.4 7 ms 2 A 30 V DC
- Exchange Mode
- half duplex, full duplex, autonegotiation Ethernet IP/Modbus TCP
- Data Format
- 8 bits, configurable odd, even or no parity Modbus serial
- Net Weight
- 4.5 kg
- Type Of Polarization
- no impedance
- Analogue Input Number
- 3
- Discrete Output Number
- 2
- Transmission Rate
- 10/100 Mbit/s Ethernet IP/Modbus TCP || 4.8, 9.6, 19.2, 38.4 kbit/s Modbus serial
- With Safety Function Safely Limited Position (Slp)
- false
- Number Of Addresses
- 1-247
- Linearity Error
- AI1, AI2, AI3 +/- 0.15 % of maximum value analog input || AQ1, AQ2 +/- 0.2 % analog output
- With Sft Fct Safe Stop 2 (Ss2)
- false

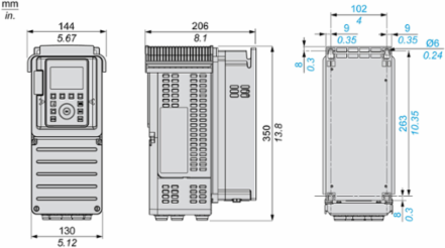

- Width
- 144 mm
- Depth
- 206 mm
- Sampling Duration
- 2 ms +/- 0.5 ms DI1...DI8) - discrete input || 5 ms +/- 1 ms DI7, DI8) - pulse input || 1 ms +/- 1 ms AI1, AI2, AI3) - analog input || 5 ms +/- 1 ms AQ1, AQ2) - analog output
- With Safety Function Safe Brake Management (Sbc/Sbt)
- true
- Acceleration And Deceleration Ramps
- linear adjustable separately from 0.01...9999 s
- Base Load Current At High Overload
- 8.0 A
- With Safety Function Safe Speed Monitor (Ssm)
- false
- With Safety Function Safe Torque Off (Sto)
- true
- Base Load Current At Low Overload
- 11.2 A
- Input Compatibility
- DI1...DI8 discrete input level 1 PLC IEC 61131-2 || DI7, DI8 pulse input level 1 PLC IEC 65A-68 || STOA, STOB discrete input level 1 PLC IEC 61131-2
- Analogue Output Number
- 2
- Minimum Switching Current
- relay output R1, R2, R3 5 mA 24 V DC
- Isolation
- between power and control terminals
- Brake Chopper Integrated
- true
- Type Of Polarization
- no impedance Modbus serial
- Discrete Input Type
- DI1...DI8 programmable, 24 V DC <= 30 V)3.5 kOhm || DI7, DI8 programmable as pulse input 0-30 kHz, 24 V DC <= 30 V) || STOA, STOB safe torque off, 24 V DC <= 30 V)> 2.2 kOhm
- Supply
- external supply for digital inputs 24 V DC 19-30 V), <1.25 mA overload and short-circuit protection || internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection || internal supply for digital inputs and STO 24 V DC 21-27 V), <200 mA overload and short-circuit protection
Power Dissipation In Wnatural convection 32 W 200 V 4 kHz || forced convection 74 W 200 V 4 kHz
Discrete Output Typelogic output DQ+ 0-1 kHz <= 30 V DC 100 mA || programmable as pulse output DQ+ 0-30 kHz <= 30 V DC 20 mA || logic output DQ- 0-1 kHz <= 30 V DC 100 mA
4 Quadrant Operation Possibletrue
Local Signallinglocal diagnostic 3 LED mono/dual colour) || embedded communication status 5 LED dual colour) || communication module status 2 LED dual colour) || presence of voltage 1 LED red)
Relative Symmetric Network Frequency Tolerance5 %
With Safety Function Safe Direction (Sdi)false
Relay Output Typeconfigurable relay logic R1 fault relay NO/NC 100000 cycles || configurable relay logic R2 sequence relay NO 1000000 cycles || configurable relay logic R3 sequence relay NO 1000000 cycles
Motor Slip Compensationnot available in permanent magnet motor law || can be suppressed || adjustable || automatic whatever the load
With Safety Function Safe Position (Sp)false
Method Of Accessslave Modbus TCP
With Safety Function Safe Operating Stop (Sos)false
Discrete Input Number10
Number Of Addresses1-247 Modbus serial
With Safety Function Safe Stop 1 (Ss1)true
Transmission Rate10, 100 Mbits || 4.8 kbps || 9600 bit/s || 19200 bit/s
Analogue Input TypeAI1, AI2, AI3 software-configurable voltage 0...10 V DC 30 kOhm 12 bits || AI1, AI2, AI3 software-configurable current 0...20 mA/4...20 mA 250 Ohm 12 bits
Electrical Connectioncontrol screw terminal 0.5...1.5 mm² AWG 20...AWG 16 || line side screw terminal 2.5...6 mm² AWG 14...AWG 10 || motor screw terminal 2.5...6 mm² AWG 14...AWG 10 || DC bus screw terminal 2.5...6 mm² AWG 14...AWG 10
Height350 mm
Maximum Output Voltage240.0 V
Transmission FrameRTU
Relay Output Number3
Data Format8 bits, configurable odd, even or no parity
Accuracy+/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input || +/- 1 % AQ1, AQ2 for a temperature variation 60 °C analog output
Connector Type2 RJ45 || 1 RJ45
Physical InterfaceEthernet || 2-wire RS 485
Refresh Timerelay output R1, R2, R3)5 ms +/- 0.5 ms)
With Safety Function Safe Programmable Logicfalse
Quantity Per Set1
Braking To Standstillby DC injection
Protection Typethermal protection motor || safe torque off motor || motor phase break motor || thermal protection drive || safe torque off drive || overheating drive || overcurrent between output phases and earth drive || overload of output voltage drive || short-circuit protection drive || motor phase break drive || overvoltages on the DC bus drive || line supply overvoltage drive || line supply undervoltage drive || line supply phase loss drive || overspeed drive || break on the control circuit drive
With Safety Function Safely Limited Speed (Sls)true
Offer Sustainability
- Mercury Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Upgradeability
- Upgraded components available
- Environmental Disclosure
- ENVPEP1501005EN
- Circularity Profile
- ENVEOLI1501005EN
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationX
Rohs Exemption InformationYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Environment
- Product Certifications
- UL || CSA || TÜV
- Standards
- UL 508C || IEC 61800-3 || IEC 61800-5-1 || IEC 61000-3-12 || IEC 60721-3 || IEC 61508 || IEC 13849-1
- Shock Resistance
- 15 gn 11 ms IEC 60068-2-27
- Vibration Resistance
- 1.5 mm peak to peak 2-13 Hz)IEC 60068-2-6 || 1 gn 13-200 Hz)IEC 60068-2-6
- Regulation Loop
- adjustable PID regulator
- Operating Altitude
- <= 1000 m without derating || 1000...4800 m with current derating 1 % per 100 m
- Environmental Class (During Operation)
- class 3C3 according to IEC 60721-3-3 || class 3S3 according to IEC 60721-3-3
- Pollution Degree
- 2
- Ambient Air Temperature For Operation
- -15-50 °C without derating) || 50-60 °C with derating factor)
- Marking
- CE
- Noise Level
- 54.5 dB
- Relative Humidity
- 5-95 % without condensation IEC 60068-2-3
- Operating Position
- vertical +/- 10 degree
- Ambient Air Transport Temperature
- -40-70 °C
Maximum Deflection Under Vibratory Load (During Operation)1.5 mm at 2...13 Hz
Insulation Resistance> 1 MOhm 500 V DC for 1 minute to earth
Environmental Characteristicchemical pollution resistance class 3C3 IEC 60721-3-3 || dust pollution resistance class 3S3 IEC 60721-3-3
Noise Level54.5 dB 86/188/EEC
Permitted Relative Humidity (During Operation)class 3K5 according to EN 60721-3
Overvoltage CategoryIII
Maximum Acceleration Under Shock Impact (During Operation)150 m/s² at 11 ms
Electromagnetic Compatibilityelectrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge immunity test level 3 IEC 61000-4-5 || conducted radio-frequency immunity test level 3 IEC 61000-4-6
Volume Of Cooling Air38 m3/h
Maximum Acceleration Under Vibrational Stress (During Operation)10 m/s² at 13...200 Hz
Ambient Air Temperature For Storage-40-70 °C
Assembly Styleenclosed
Maximum Thdi<48 % full load IEC 61000-3-12
Specifications
- Prospective Line Isc
- 50 kA
- Product Destination
- asynchronous motors || synchronous motors
- Network Number Of Phases
- 3 phases
- Variant
- with braking chopper || standard version
- Apparent Power
- 3 kVA 240 V normal duty) || 2.2 kVA 240 V heavy duty)
- Switching Frequency
- 2...16 kHz adjustable || 4...16 kHz with derating factor
- Communication Port Protocol
- Modbus serial || EtherNet/IP || Modbus TCP
- Option Card
- slot A communication module Profibus DP V1 || slot A communication module PROFINET || slot A communication module DeviceNet || slot A communication module EtherCAT || slot A communication module CANopen daisy chain RJ45 || slot A communication module CANopen SUB-D 9 || slot A communication module CANopen screw terminals || slot A/slot B/slot C digital and analog I/O extension module || slot A/slot B/slot C output relay extension module || slot B 5/12 V digital encoder interface module || slot B analog encoder interface module || slot B resolver encoder interface module || communication module Ethernet Powerlink
- Maximum Output Frequency
- 599 Hz
- Motor Power Kw
- 2.2 kW normal duty || 1.5 kW heavy duty
- Mounting Mode
- wall mount
- Continuous Output Current
- 11.2 A 4 kHz normal duty || 8 A 4 kHz heavy duty
- Emc Filter
- integrated || with EMC plate option
- Synchronous Motor Control Profile
- permanent magnet motor || synchronous reluctance motor
Network Frequency50...60 Hz
Line Current8.4 A 200 V normal duty) || 6.0 A 200 V heavy duty) || 7.2 A 240 V normal duty) || 5.3 A 240 V heavy duty)
Asynchronous Motor Control Profileoptimized torque mode || variable torque standard || constant torque standard
Product Or Component Typevariable speed drive
Ip Degree Of ProtectionIP21
Maximum Transient Current13.4 A 60 s normal duty) || 12 A 60 s heavy duty)
Product Specific Applicationprocess for industrial
Degree Of ProtectionUL type 1
Range Of ProductAltivar Process ATV900
[Us] Rated Supply Voltage200...240 V - 15...10 %
Discrete Input Logic16 preset speeds
Nominal Switching Frequency4 kHz
Device Applicationindustrial application
