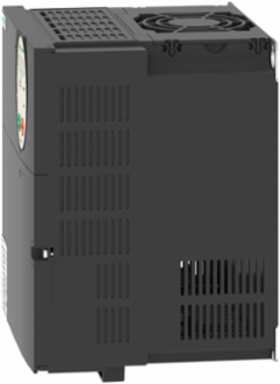

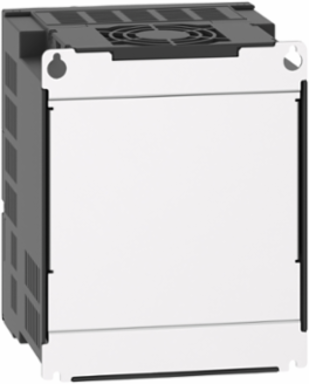

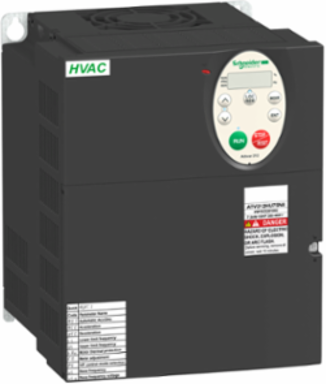

Schneider Electric ATV212HU75N4 Altivar 212 Variable Speed Drive 7.5kW 10hp 480V IP21

MPN: ATV212HU75N4
PPN: SCH-ATV212HU75N4
UNSPSC: 39122001

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$1255.46

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This Altivar 212 variable speed drive can feed 3-phase asynchronous motors. Its protection index is IP21 and it has a built-in EMC filter. It works at a rated power up to 7.5kW / 10hp and a rated voltage from 380V to 480V AC. Its design is based on eco-energy with a reduction in energy consumption of up to 70% compared to a conventional control system. Thanks to its cable temperature rise reduction technology, the Altivar 212 drive offers immediate, disturbance-free operation avoiding additional options such as a line choke or DC choke to deal with current harmonics. It weighs 6.45kg and its dimensions are, 180mm wide, 232mm high, 170mm deep. It is specifically designed for the most common fluid management applications in tertiary sector buildings (HVAC) like heating, ventilation, air conditioning and pumping. It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions). It is also CE, UL, CSA, C-Tick and NOM certified. The Altivar 212 offers optional motor chokes which can increase the maximum cable lengths between the drive and the motor and limit disturbance at the motor terminals. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. The Altivar 212 drive can easily be adapted to all building management systems thanks to its numerous functions and communication protocols integrated as standard, Modbus, METASYS N2, APOGEE FLN P1 and BACnet.

Features

Centralized technical management
Instant viewing of the energy consumption
User-friendly
Compact size
Simple maintenance
Continuity of service assured
Integrated EMC filter
Dedicated building series functions
Connection to the building network using built-in protocols
Tools for parametering and viewing the installation

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Indonesia, United States

Depth	170 mm

Communications & Management Attributes

Communication Port Protocol	APOGEE FLN, LonWorks, BACnet, METASYS N2, Modbus

Communication Service	monitoring inhibitable, read holding registers (03) 2 words maximum, write multiple registers (16) 2 words maximum, write single register (06), read device identification (43), time out setting from 0.1 to 100 s

Complementary Attributes

Maximum Horse Power Rating	10 hp
Maximum Transient Current	17.6 A 60 s
Us Rated Supply Voltage	380...480 V - 15...10 %

Maximum Switching Current	2 A 30 V DC inductive cos phi = 0.4 L/R = 7 ms FL, R)5 A 250 V AC resistive cos phi = 1 L/R = 0 ms FL, R)5 A 30 V DC resistive cos phi = 1 L/R = 0 ms FL, R)2 A 250 V AC inductive cos phi = 0.4 L/R = 7 ms FL, R)
Minimum Switching Current	3 mA 24 V DC configurable relay logic

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB
Asynchronous Motor Control Profile	voltage/frequency ratio - Energy Saving, quadratic U/f, voltage/frequency ratio, automatic IR compensation (U/f + automatic Uo), flux vector control without sensor, standard, voltage/frequency ratio, 5 points, voltage/frequency ratio, 2 points
Discrete And Process Manufacturing	building - HVAC compressor for scroll, building - HVAC fan, building - HVAC pump
Electromagnetic Compatibility	electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3, electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-41.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6voltage dips and interruptions immunity test conforming to IEC 61000-4-11
Insulation Resistance	>= 1 mOhm 500 V DC for 1 minute, >= 1 mOhm 500 V DC for 1 minute>= 1 mOhm 500 V DC for 1 minute, >= 1 mOhm 500 V DC for 1 minute
Motor Slip Compensation	not available in voltage/frequency ratio motor control, automatic whatever the load, adjustable
Protection Type	overheating protection drive, thermal power stage drive, short-circuit between motor phases drive, input phase breaks drive, overcurrent between output phases and earth drive, overvoltages on the DC bus drive, break on the control circuit drive, against exceeding limit speed drive, line supply overvoltage and undervoltage drive, line supply undervoltage drive, against input phase loss drivethermal protection motor, motor phase break motor, with PTC probes motor
Sampling Duration	2 ms +/- 0.5 ms F discrete, 2 ms +/- 0.5 ms R discrete, 2 ms +/- 0.5 ms RES discrete, 3.5 ms +/- 0.5 ms VIA analog22 ms +/- 0.5 ms VIB analog
Tightening Torque	0.6 N.m VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES), 2.5 N.m, 22 lb.in L1/R, L2/S, L3/T)
Type Of Cable	without mounting kit 1 IEC cable 45 °C, copper 90 °C / XLPE/EPRwithout mounting kit 1 IEC cable 45 °C, copper 70 °C / PVC, with UL Type 1 kit 3 UL 508 cable 40 °C, copper 75 °C / PVC
Certificate Agency	C-tick, NOM 117, UL, CSA
Local Publishable Date	2026-01-12
Device Type	Variable speed drive - VSD Compacts
Traceability	Yes
Average Life Duration	10 year(s)
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI110204EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1916
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	YES_SSI2Yes
Tier	4
Function Option	Advanced
Market Segmentation	Industrial
Apparent Power	12.2 kVA 380 V
Braking To Standstill	by DC injection
Device Short Name	ATV212
Emc Filter	Class C2 EMC filter integrated
Functionality	mid
Line Current	11.7 A 480 V14.7 A 380 V
Marking	CE
Motor Starter Type	variable speed drive
Noise Level	51 dB 86/188/EEC
Number Of Addresses	1-247
Option Card	communication card LonWorks
Power Dissipation In W	291 W
Product Destination	asynchronous motors
Product Specific Application	pumps and fans in HVAC
Range Of Product	Altivar 212
Returnability	Yes
Specific Application	HVAC
Supply	internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 A overload and short-circuit protectioninternal supply 24 V DC 21-27 V), <200 A overload and short-circuit protection
Supply Voltage Limits	323-528 V
Switching Frequency	6...16 kHz adjustable12...16 kHz with derating factor
Transmission Frame	RTU
Type Of Polarization	no impedance
Motor Power Kw 11 N Motor Power Kw	7.5 kW
Height Nominal	232 mm
Nbr. Of Units In Pkg.	1
Warranty In Months	18

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Connector Type	1 open style, 1 RJ45
Electrical Connection	VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES terminal 2.5-2.5 mm² / 14 AWG, L1/R, L2/S, L3/T terminal 16-16 mm² / 6 AWG
Environmental Characteristic	classes 3C1 conforming to IEC 60721-3-3, classes 3S2 conforming to IEC 60721-3-3
Linearity Error	VIA +/- 0.15 % of maximum value input, VIB +/- 0.15 % of maximum value input, FM +/- 0.2 % output
Power Range	7-11 kW 380-440 V 3 phase, 7-11 kW 480-500 V 3 phase
Response Time	FM 2 ms +/- 0.5 ms analog, FLA, FLC 7 ms +/- 0.5 ms discrete, FLB, FLC 7 ms +/- 0.5 ms discrete, RY, RC 7 ms +/- 0.5 ms discrete
Speed Accuracy	+/- 10 % of nominal slip 0.2 Tn to Tn, +/- 10 % of nominal slip 0.2 Tn to Tn, +/- 10 % of nominal slip 0.2 Tn to Tn, +/- 10 % of nominal slip 0.2 Tn to Tn
Torque Accuracy	+/- 15 %, +/- 15 %
Vibration Resistance	1.5 mm (f= 3-13 Hz) conforming to IEC 60068-2-6, 1 gn (f= 13-200 Hz) conforming to EN/IEC 60068-2-8
Local Data Status	Publishable
Return Indicator	Y
Serviceability	No
Field Service Division	IDIBS
Weee Applicability	Finished product
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	Yes
Tier Id	4
Function Option Id	ADVANCED
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Assembly Style	with heat sink
Data Format	8 bits, 1 stop, odd even or no configurable parity
Dielectric Strength	3535 V DC between earth and power terminals5092 V DC between control and power terminals
Frequency Resolution	display unit 0.1 Hzanalog input 0.024/50 Hz
Isolation	electrical between power and control
Local Signalling	1 LED (red) for DC bus energized
Motor Power Kw	7.5 kW
Network Frequency	47.5...63 Hz
Nominal Switching Frequency	12 kHz
Operating Position	vertical +/- 10 degree
Phase	3 phase
Product Availability	Stock - Normally stocked in distribution facility
Product Or Component Type	variable speed drive
Prospective Line Isc	22 kA
Regulation Loop	adjustable PI regulator
Shock Resistance	15 gn 11 ms IEC 60068-2-27
Speed Range	1-10
Supply Frequency	50...60 Hz - 5...5 %
Sustainable Packaging	No
Transient Overtorque	120-120 % of nominal motor torque +/- 10 % 60 s
Transmission Rate	9600 bps or 19200 bps
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Motor Power Hp 13	10 hp
Width Nominal	180 mm
Customs Code	8504404000

Environment Attributes Main

Ambient Air Temperature For Operation	-10-40 °C (without derating), -10-40 °C (without derating)-10-40 °C (without derating), -10-40 °C (without derating)40-50 °C (with derating factor)
Ip Degree Of Protection	IEC 60529IP41 on upper part IEC 60529IP21IP20 on upper part without blanking plate on cover IEC 61800-5-1, IP20 on upper part without blanking plate on cover IEC 60529, IP21 IEC 61800-5-1, IP41 on upper part IEC 61800-5-1
Relative Humidity	5-95 % without condensation IEC 60068-2-3, 5-95 % without dripping water IEC 60068-2-3
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI110204EN
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP110204EN

Ambient Air Temperature For Storage	-25-70 °C, -25-70 °C
Operating Altitude	<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating3280.84...9842.52 ft (1000...3000 m) limited to 2000 m for the Corner Grounded distribution network with current derating 1 % per 100 m, <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating
Take Back	No
China Rohs Regulation	X
Air Flow	100 m3/h
Environmental Disclosure	ENVPEP110204EN
Packaging Made With Recycled Cardboard	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold

General Attributes

Phase	3 phase
Range Of Product	Altivar 212

Product Or Component Type	variable speed drive

ETIM

ETIM 8	EC001857
ETIM 10	EC001857

ETIM 9	EC001857

Output Attributes

Analogue Output Type	FM switch-configurable voltage 0...10 V DC 7620 Ohm 10 bits, FM switch-configurable current 0...20 mA 970 Ohm 10 bits
Discrete Output Type	configurable relay logic FLA, FLC) NO - 100000 cyclesconfigurable relay logic FLB, FLC) NC - 100000 cycles, configurable relay logic RY, RC) NO - 100000 cycles
Analogue Output Number	1
Speed Drive Output Frequency	0.5-200 Hz

Continuous Output Current	16 A 380 V, 16 A 460 V
Output Voltage	<= power supply voltage, <= power supply voltage
Discrete Output Number	2

Contractual Warranty Attributes

Warranty Period	18 months

Warranty	18 months

Input Attributes

Analogue Input Type	VIA switch-configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bitsVIB configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits, VIB configurable PTC probe 0...6 probes 1500 Ohm, VIA switch-configurable current 0...20 mA 250 Ohm 10 bits
Discrete Input Type	F programmable 24 V DC level 1 PLC 4700 Ohm, R programmable 24 V DC level 1 PLC 4700 Ohm, RES programmable 24 V DC level 1 PLC 4700 Ohm
