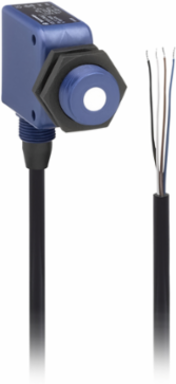

Telemecanique Sensors VM1VD3000 Hyde Park, Ultrasonic sensor, analog, voltage (V), 18 mm snout dual mount, 15 24 V DC
- MPN: VM1VD3000
- PPN: TES-VM1VD3000
- UNSPSC: 39122230
CAD
$296.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Hyde Park, Ultrasonic sensor, analog, voltage (V), 18 mm snout dual mount, 15 24 V DC
Documentation & Downloads
Specifications
Key Specifications
- Iso Thread
- M18 x 1
- Series Name
- Virtu VM1
- Range Of Product
- Hyde Park
- Sensor Type
- ultrasonic sensor
- Sensor Design
- flat form + cylindrical M18
- Front Material
- glass epoxy
- Device Short Name
- VM1
- [Us] Rated Supply Voltage
- 15...24 V DC overload and short-circuit protection
Type Of Sensing Windowadjustable
Type Of Output Signalanalog
Supply Voltage Limits13-28 V DC
Electrical Connectioncable, 3 m
Enclosure Materialvalox
Materialplastic
Analogue Output Range0...10 V direct
Wiring Technique4-wire
Complementary
- Repeat Accuracy
- 1.27 %
- Height
- 43.7 mm
- Maximum Switching Current
- 40 mA reverse polarity protection
- Width
- 18 mm
- [Sn] Nominal Sensing Distance
- 508-508 mm
- [Sd] Sensing Range
- 50.8-508 mm
- Net Weight
- 0.033 kg
Beam Angle5 °
Minimum Size Of Detected Objectcylinder diameter 2.5 mm - up to 200 mm sensing distance
Transmission Frequency300 kHz
Depth43.7 mm
Blind Zone51-51 mm
Length65.61 mm
Current Consumption40 mA
Environment
- Product Certifications
- UL
- Resistance To Electromagnetic Fields
- 10 V/m level 3 IEC 61000-4-3
- Relative Humidity
- 100-100 % without condensation
- Vibration Resistance
- +/-1 mm 10-55 Hz)IEC 60068-2-6
- Marking
- CE
- Ip Degree Of Protection
- IP67
Ambient Air Temperature For Operation-30-70 °C
Ambient Air Temperature For Storage-40-85 °C
Nema Degree Of ProtectionNEMA 4X indoor use only)
Shock Resistance30 gn in all 3 axes 11 ms IEC 60068-2-27
Resistance To Fast Transients1 kV level 3 IEC 61000-4-4
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Eu Rohs Directive
- Not applicable, out of EU RoHS legal scope
Reach RegulationReference contains Substances of Very High Concern above the threshold
