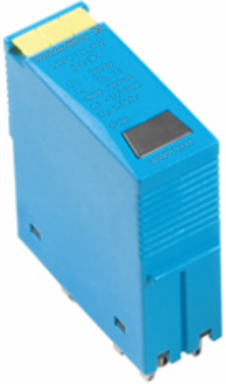

Weidmuller 8953620000 VSPC 2SL 12VDC EX
- MPN: 8953620000
- PPN: WDM-8953620000
CAD
$323.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Surge protection for instrumentation and control, 12 V, 250 mA, IEC 61643-21, IEC 62305, DIN EN 60079-0.2009, DIN EN 60079-11:2007, DIN EN 60079-26:2007, DIN EN 61241-11:2006
Documentation & Downloads
Specifications
Further Details Of Approvals
- GOST certificate
- GOST-Zertifikat
Protection Ex - Data
- ATEX - dust labelling
- II 1 D Ex ia IIIC T135 °C …T85 °C Da
- Certificate No. (ATEX)
- KEMA10ATEX0148X
- IECEx - gas labelling
- II 1 G Ex ia IIC T4… T6 Ga
- Input voltage, max. U
- 14 V
- Internal inductance, max. L
- 0 µH
- Temperature class T5/100°C (-40 ° C ... +75°C) li
- 250 mA
ATEX - gas labellingII 1 G Ex ia IIC T4… T6 Ga
IECEx - dust labellingII 1 D Ex ia IIIC T135 °C …T85 °C Da
Input power, max. P3 W
Internal capacity, max. C< 4 nF
Temperature class T4/135°C (-40°C ... +85°C) li350 mA
Temperature class T6/85 °C (-40 °C ... +60°C) li250 mA
General Data
- Colour
- Light Blue
- Optical function display
- No
- Segment
- Measurement - Monitoring - Setting
- Version
- without warning function / function indicator
DesignTerminal, miscellaneous
Protection degreeIP20
UL 94 flammability ratingV-0
protected binary signals2
Probability Of Failure
- λges
- 43
- PFH in 1*10
- 8.9
- SIL PAPER
- SIL PAPER
MTTF2,665 Years
SFF79.3 %
SIL in compliance with IEC 615082
Approvals
- Approvals
- CE, CSAEX, EAC, FUSAFETY, IECEXDEK, KEMAATEX
ROHSConform
Insulation Coordination Acc. To En 50178
- Pollution severity
- 2
Surge voltage categoryIII
Rated Data Iec / En
- Dielectric strength at FG against PE
- ≥ 500 V
- Input voltage, max. U
- 14 V
- Max. continuous voltage, Uc (DC)
- 14 V
- Overload - failure mode
- Modus 2
- Protection level on output side Wire-PE 1kV/µs, typically
- 25 V
- Protection level on output side Wire-wire 8/20 µs, typically
- 45 V
- Pulse-reset capacity
- ≤ 20 ms
- Rated voltage (DC)
- 12 V
- Signal transmission properties (-3 dB)
- 1.2 MHz
- Standards
- IEC 61643-21, IEC 62305, DIN EN 60079-0.2009, DIN EN 60079-11:2007, DIN EN 60079-26:2007, DIN EN 61241-11:2006
- Surge current-carrying capacity C2
- 5 kA 8/20 μs
- Surge current-carrying capacity D1
- 2.5 kA 10/350 μs
- Volume resistance
- 4.7 Ω
Discharge current I2.5 kA
Lightning test current, I2.5 kA
Number of poles1
Protection level U< 200 V
Protection level on output side Wire-wire 1 kV/µs, typically20 V
Protection level, U20 V
Rated current I250 mA

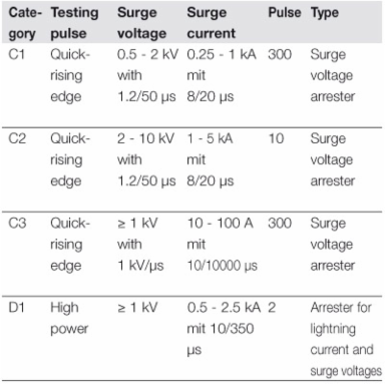

Requirements category acc. to IEC 61643-21C1, C2, C3, D1
Signalling contactNo
Surge current-carrying capacity C1< 1 kA 8/20 μs
Surge current-carrying capacity C3100 A 10/1000 μs
Voltage typeDC
Dimensions And Weights
- Width
- 17.8 mm
- Height
- 90 mm
- Depth
- 69 mm
- Net weight
- 47 g
Width (inches)0.701 inch
Height (inches)3.543 inch
Depth (inches)2.717 inch
Csa Protection Data
- Gas group C
- IIB
- Gas groups A, B
- IIC
- Internal capacity, max. C
- 4 nF
Gas group DIIA
Input voltage, max. U14 V
Internal inductance, max. L0 µH
Connection Data
- Type of connection
- Pluggable in VSPC BASE
Tender Specification Sheets
- Long specification

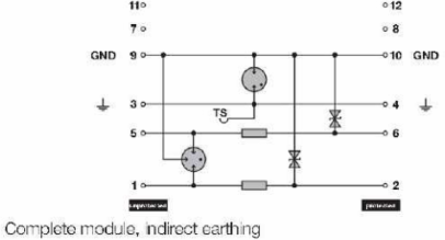

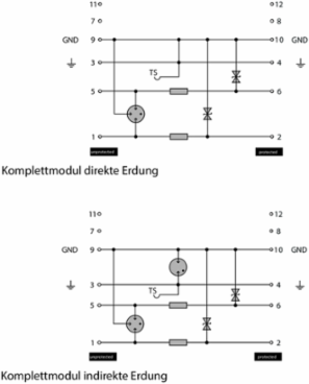

- Surge protection plug for use in connection with the base element VSPC BASE 2SL FG for two wires with a common ground. Two-stage protection circuit in the plug consisting of coarse protection, decoupling resistors and fine protection between the signal wires and the signal ground/ground/earth. Suitable for intrinsically safe powered signal cables EX ia. Mechanical identification of the plug to the base element according to the switching type and rated voltage. Protected plug with coding pin and counter-profile for the base element. Optical identification of the protected plug based on the type of protected switching and the voltage level. It is possible to mark the plug.
Short specificationSurge protection plugs for base element VSPC BASE 2SL FG, coarse and fine common mode voltage protection for two wires with a common signal ground for intrinsically safe signal cables EX ia. Version: 12 V DC
Classifications
- ETIM 6.0
- EC000943
- eClass 9.0
- 27-13-08-07
- eClass 10.0
- 27-13-08-07
ETIM 7.0EC000943
eClass 9.127-13-08-07
UNSPSC30-21-19-21
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Temperatures
- Humidity
- 5...96 %
- Operating temperature, min.
- -40 °C
- Storage temperature, min.
- -40 °C
- Storage temperature
- -40 °C...80 °C
Operating temperature, max.70 °C
Storage temperature, max.80 °C
Operating temperature-40 °C...70 °C
Ratings Iecex/Atex/Cul
- ATEX certificate
- ATEX Certificate
- Certificate No. (ATEX)
- KEMA10ATEX0148X
IEC Ex certificateIECEX Zertifikat
cUL certificatecUL Certificate
