Weidmuller 8951620000 VSPC 2SL 12VDC R
- MPN: 8951620000
- PPN: WDM-8951620000
CAD
$351.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

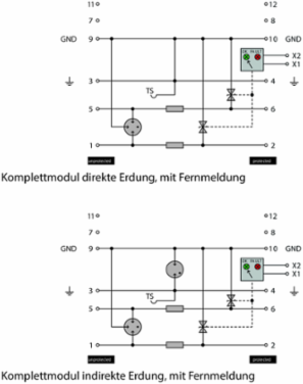

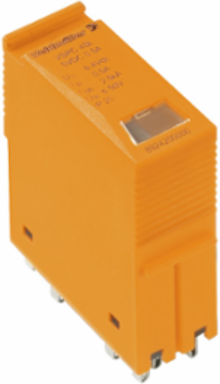

Surge protection for instrumentation and control, 12 V, 300 mA, IEC 61643-21
Documentation & Downloads
Specifications
Further Details Of Approvals
- GOST certificate
- GOST-Zertifikat
General Data
- Colour
- orange
- Optical function display
- green = OK; red = arrester is defective - replace
- Segment
- Measurement - Monitoring - Setting
- Version
- with warning function / function indicator
DesignTerminal, miscellaneous
Protection degreeIP20
UL 94 flammability ratingV-0
protected binary signals2
Probability Of Failure
- λges
- 43
- PFH in 1*10
- 10.7
- SIL PAPER
- SIL Paper
MTTF2,665 Years
SFF86.02 %
SIL in compliance with IEC 615082
Approvals
- Approvals
- CE, CSAEX, EAC, FUSAFETY, OEVE, UL
- UL File Number Search
- E311081
ROHSConform
Insulation Coordination Acc. To En 50178
- Pollution severity
- 2
Surge voltage categoryIII
Rated Data Iec / En
- Discharge current I
- 2.5 kA
- Lightning test current, I
- 2.5 kA
- Number of poles
- 1
- Protection level U
- < 200 V
- Protection level on output side Wire-wire 1 kV/µs, typically
- 45 V
- Protection level, U
- 20 V
- Rated current I
- 300 mA

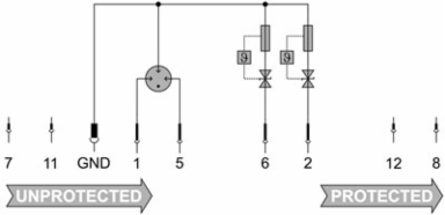

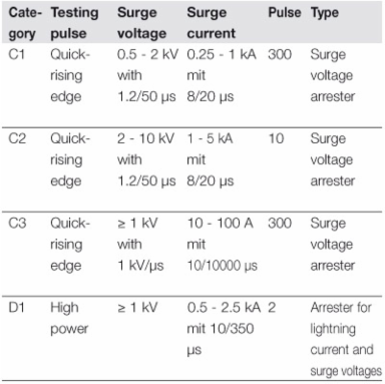

- Requirements category acc. to IEC 61643-21
- C1, C2, C3, D1
- Signalling contact
- UN 250 V AC 0.1 A 1CO at VSPC R with VSPC control unit
- Surge current-carrying capacity C1
- < 1 kA 8/20 μs
- Surge current-carrying capacity C3
- 100 A 10/1000 μs
- Voltage type
- DC
Fuse0.5 A
Max. continuous voltage, Uc (DC)15 V
Overload - failure modeModus 2
Protection level on output side Wire-PE 1kV/µs, typically25 V
Protection level on output side Wire-wire 8/20 µs, typically45 V
Pulse-reset capacity≤ 20 ms
Rated voltage (DC)12 V
Signal transmission properties (-3 dB)2.5 MHz
StandardsIEC 61643-21
Surge current-carrying capacity C25 kA 8/20 μs
Surge current-carrying capacity D12.5 kA 10/350 μs
Volume resistance4.7 Ω
Dimensions And Weights
- Width
- 17.8 mm
- Height
- 98 mm
- Depth
- 69 mm
- Net weight
- 44 g
Width (inches)0.701 inch
Height (inches)3.858 inch
Depth (inches)2.717 inch
Csa Protection Data
- Gas group C
- IIB
- Gas groups A, B
- IIC
- Internal capacity, max. C
- 2 nF
Gas group DIIA
Input voltage, max. U15 V
Internal inductance, max. L0 µH
Connection Data
- Type of connection
- Pluggable in VSPC BASE
Rated Data Ul
- Certificate No. (UL)
- E311081
UL certificateUL 497b Certificate
Tender Specification Sheets
- Long specification
- Surge protection plug for use in connection with the base element VSPC BASE 2SL R for two wires with a common ground and with integrated status display and remote monitoring option. Two-stage protection circuit in the plug consisting of coarse protection, decoupling resistors and fine protection between the signal wires and the signal ground/ground/earth. Mechanical identification of the plug to the base element according to the switching type and rated voltage. Protected plug with coding pin and counter-profile for the base element. Optical identification of the protected plug based on the type of protected switching and the voltage level. It is possible to mark the plug.
Short specificationSurge protection plug for base element VSPC BASE 2SL R, with integrated status display and remote monitoring option. Coarse and fine common mode voltage protection for two wires with a common ground. Version: 12 V DC
Classifications
- ETIM 6.0
- EC000943
- eClass 9.0
- 27-13-08-07
- eClass 10.0
- 27-13-08-07
ETIM 7.0EC000943
eClass 9.127-13-08-07
UNSPSC30-21-19-21
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Temperatures
- Humidity
- 5...96 %
- Operating temperature, min.
- -40 °C
- Storage temperature, min.
- -40 °C
- Storage temperature
- -40 °C...80 °C
Operating temperature, max.70 °C
Storage temperature, max.80 °C
Operating temperature-40 °C...70 °C
Ratings Iecex/Atex/Cul
- cUL certificate
- cUL Certificate
